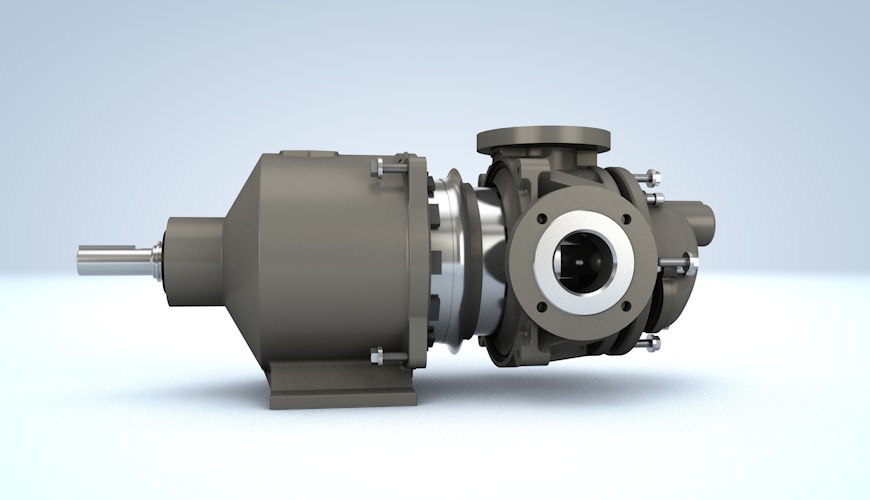

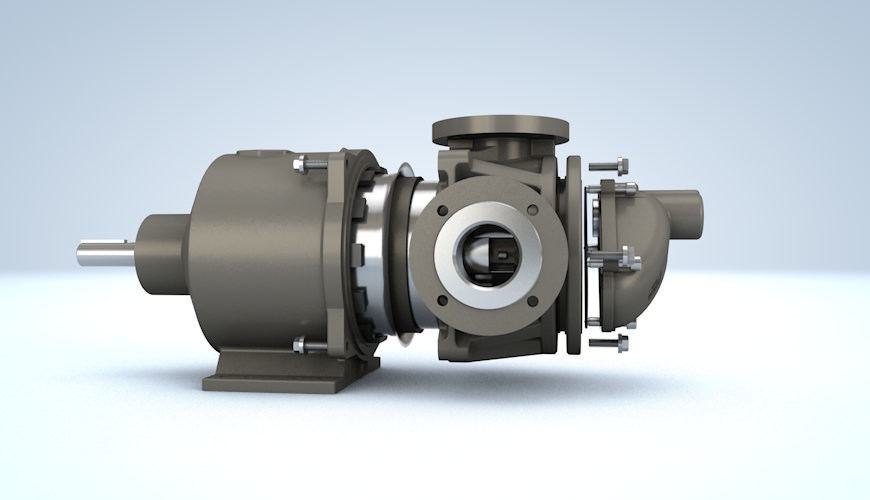

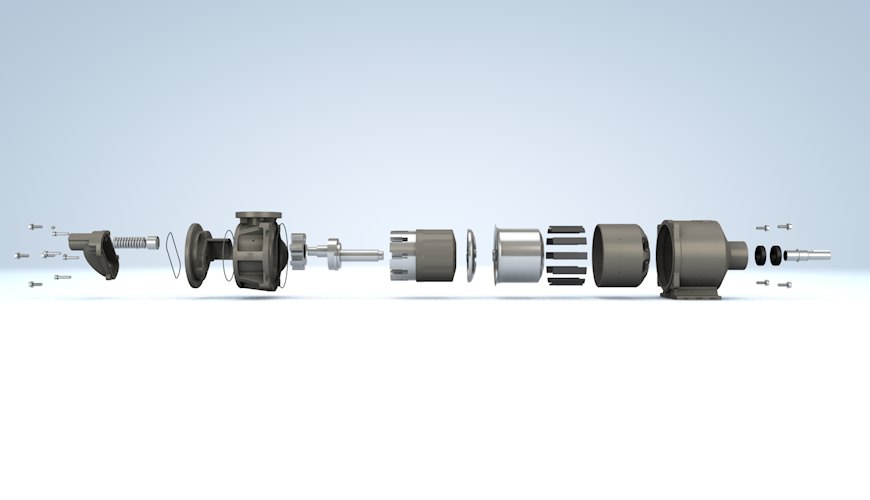

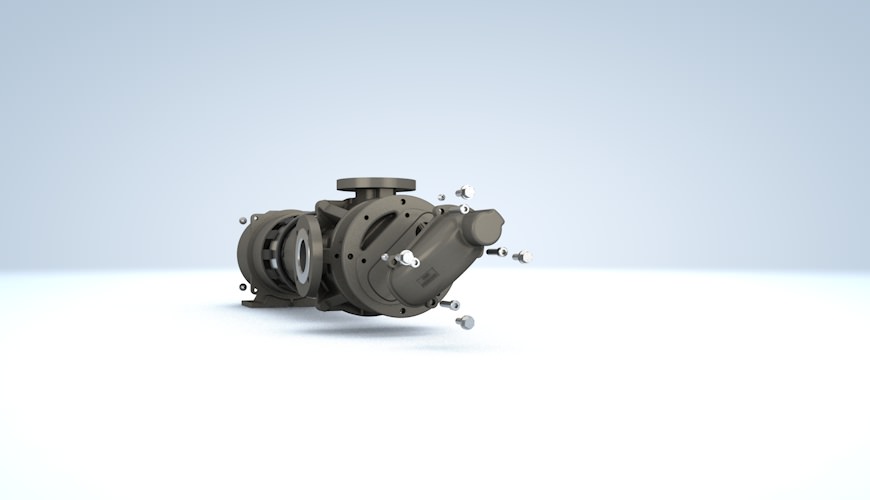

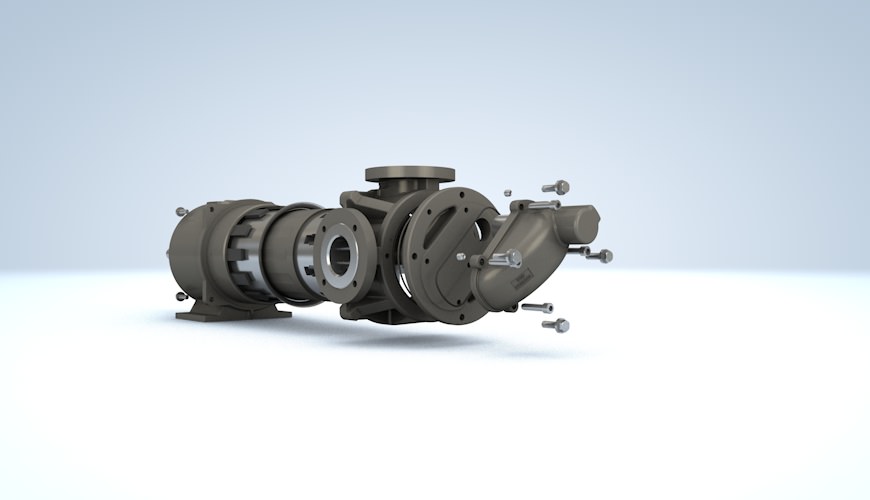

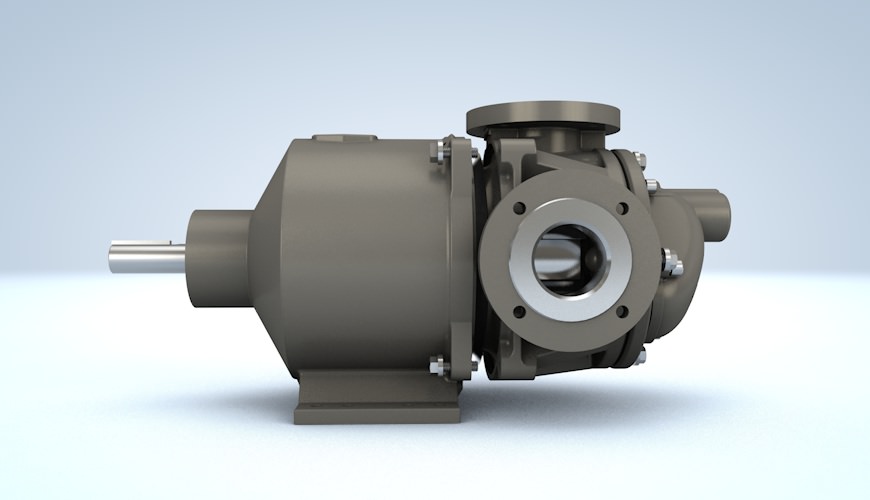

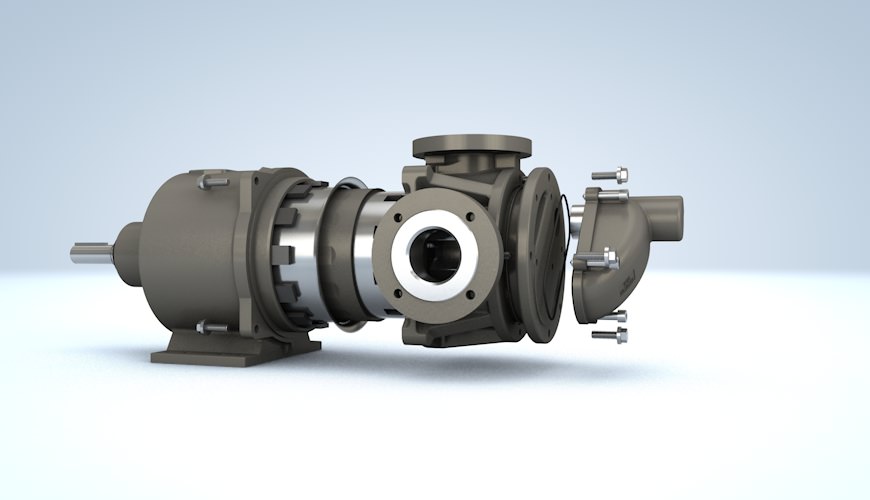

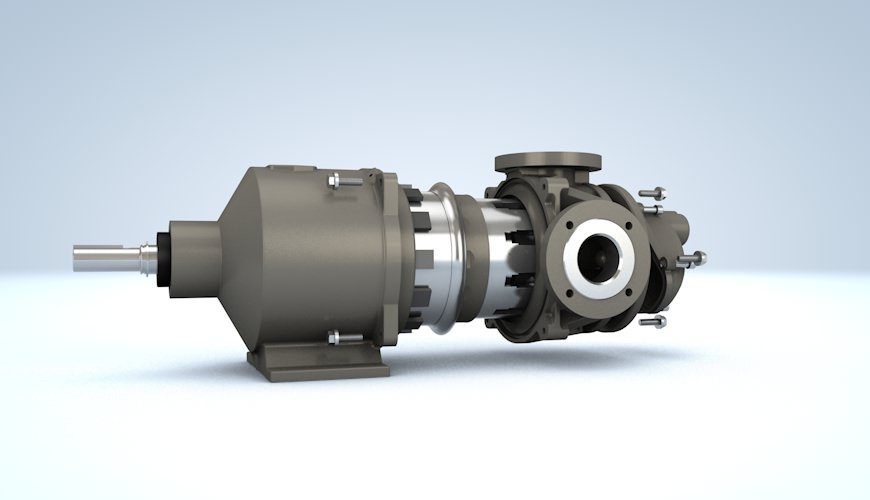

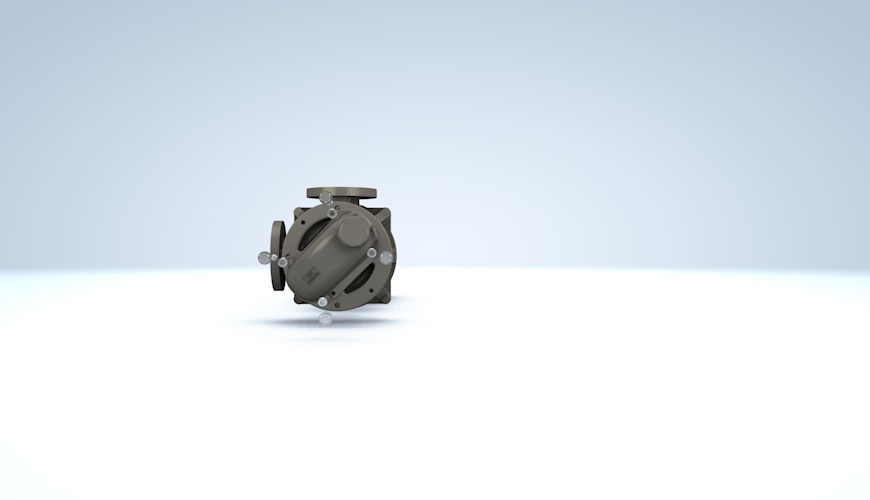

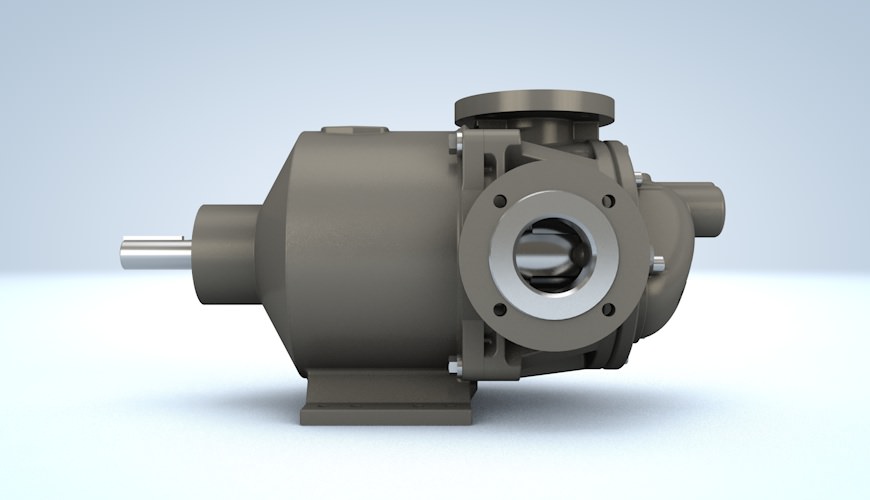

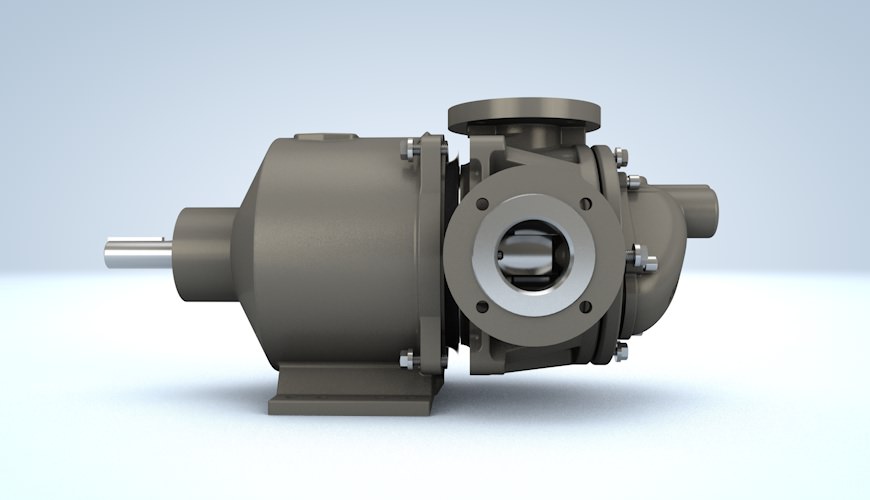

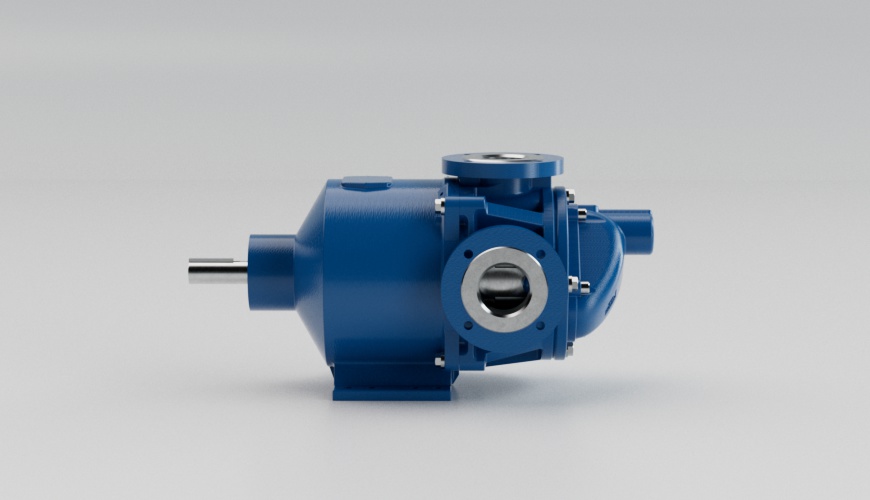

Blackmer E Series Gear Pump - 1 Blackmer E Series Gear Pump - 2 Blackmer E Series Gear Pump - 3 Blackmer E Series Gear Pump - 4

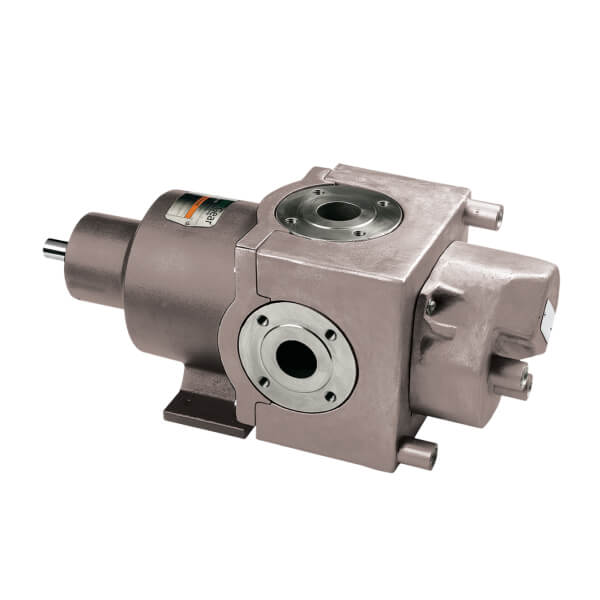

Blackmer® E Series Magnetic Drive Gear Pump Your Seal-less, Leak-Free Magnetic Drive Pump

Take your pump performance to the next level with Blackmer E Series Magnetic Drive Gear Pumps. Innovative, durable and environmentally friendly, E Series Magnetic Drive Gear Pumps have been engineered to be a cut above the competition thanks to a revolutionary design with a patented between-the-bearing support system. This one-of-a-kind design eliminates leaks and reduces mechanical wear, helping increase the safety of site personnel and the environment. Material of construction options of ductile iron, carbon steel and stainless steel allow for a wide range of chemical compatibility. In addition, no other magnetically coupled pump offers a lower upfront cost, lower total cost of ownership or more reliability than the E Series Magnetic Drive Gear Pump.

Available Materials
  • Ductile Iron
  • Carbon Steel
  • Stainless Steel
Max Temperature
  • 500°F (260°C)
Capacity
  • 15 gpm to 500 gpm (3.4 m³/h to 113.6 m³/h)
Max Pressure
  • Ductile Iron – 200 psi (13.8 bar)
  • Carbon Steel – 200 psi (13.8 bar)
  • Stainless Steel – 150 psi (10.3 bar)

Features

e-series_bearing-support_Blackmer

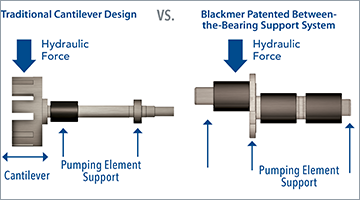

Between-the-Bearing Support System

Eliminates the damaging effects of cantilevered loads that are present in competitor internal gear pumps, maximizing rotor, idler and bushing life.

Blackmer-Pump-01_Chamber

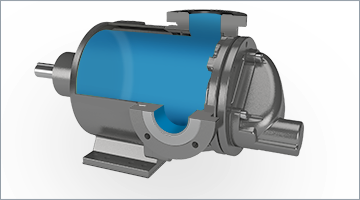

One Fluid Chamber Design

Greatly improves fluid circulation through the magnetic coupling, resulting in lower operating temperatures, longer magnet life, and more effective cleaning and flushing processes.

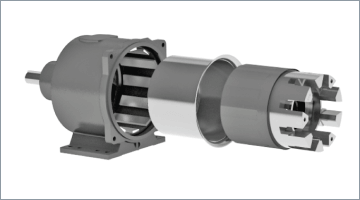

High-Torque and Compact Magnetic Coupling

High-Torque and Compact Magnetic Coupling

High-strength magnetic couplings are standard to allow for more operational flexibility, with inner magnets mounted directly to the rotor for an extremely compact design.

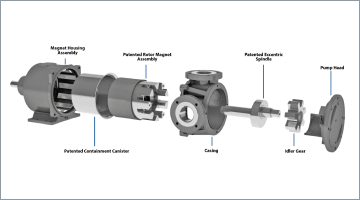

Simple Design

Simple Design

The need for only seven primary components improves reliability and reduces system complexity while easing maintenance and repair.

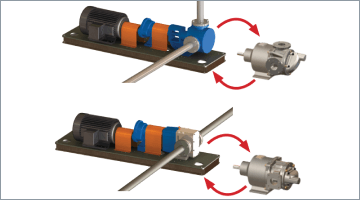

Competitor Pump Interchangeability

Competitor Pump Interchangeability

Interchangeable with up to 95% of the packed, mechanically sealed and seal-less magnetic drive gear pumps in use today, with no need for piping, driver, baseplate or coupling modifications.

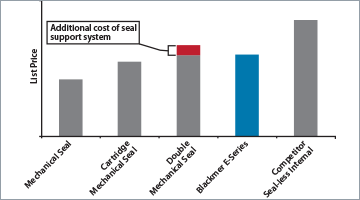

e-series_affordable

Affordable Upfront Solution

Due to the simple, seven primary-component part design, E Series Magnetic Drive Gear Pumps have a much lower investment cost than competitors’ magnetic drive gear pumps.

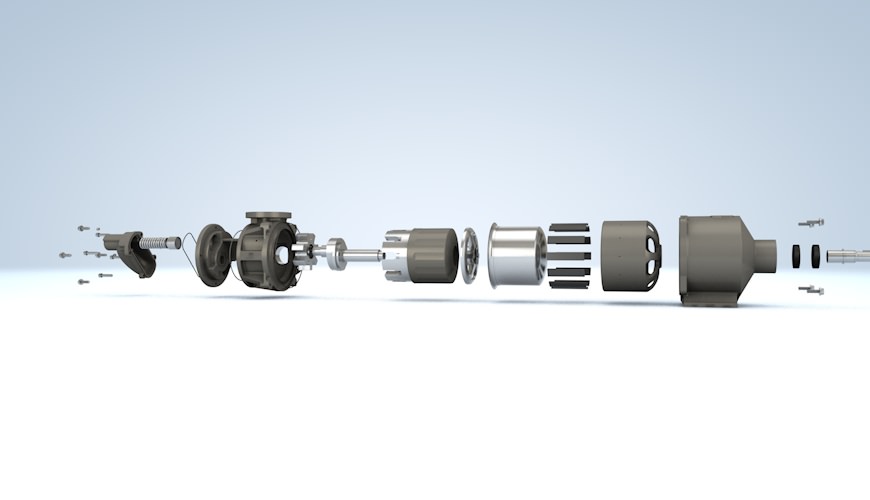

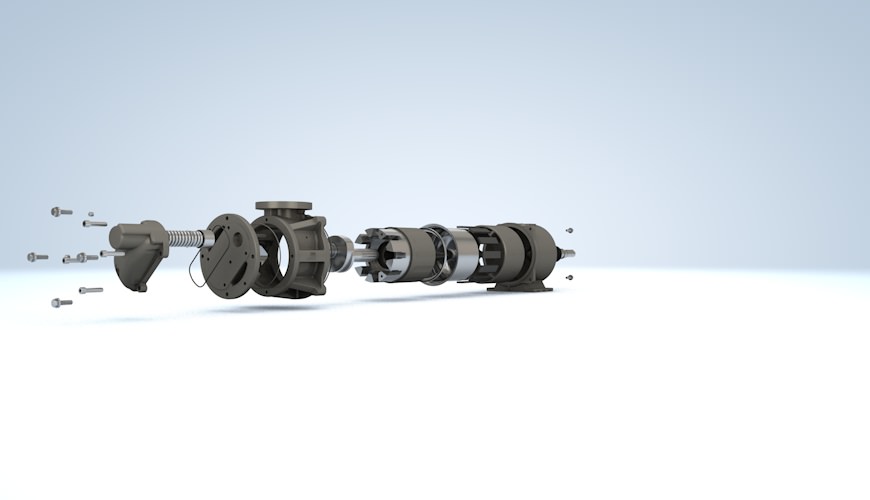

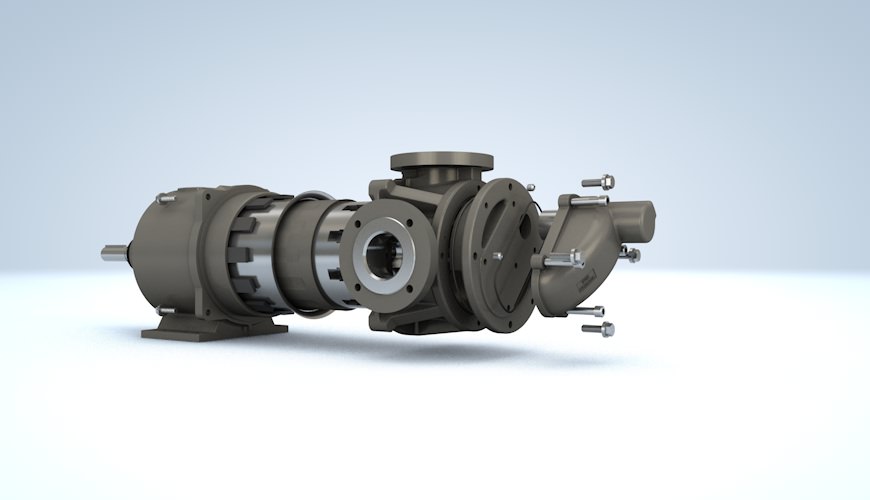

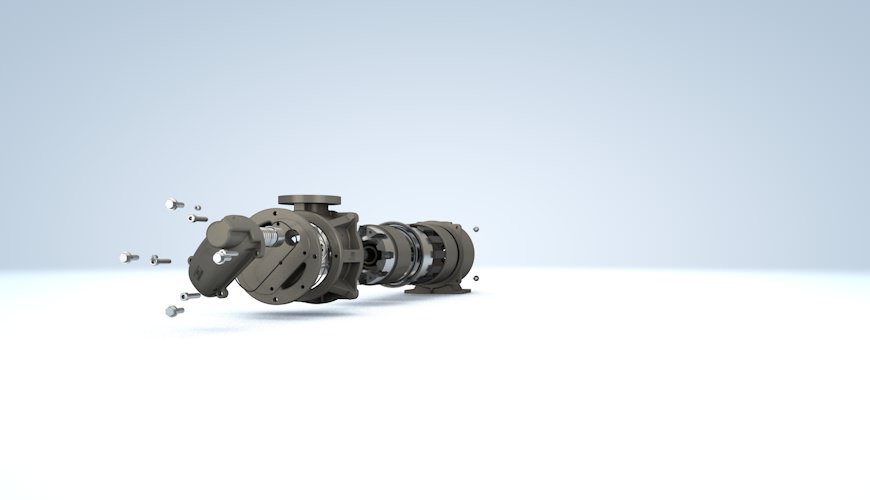

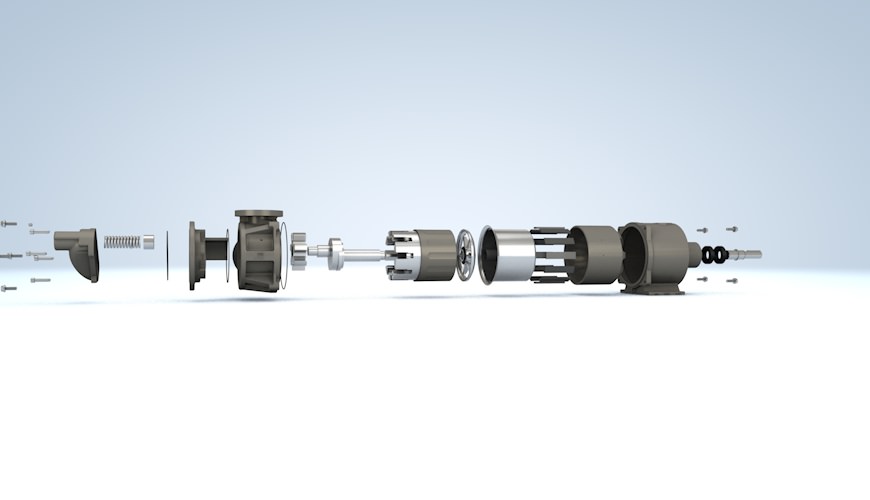

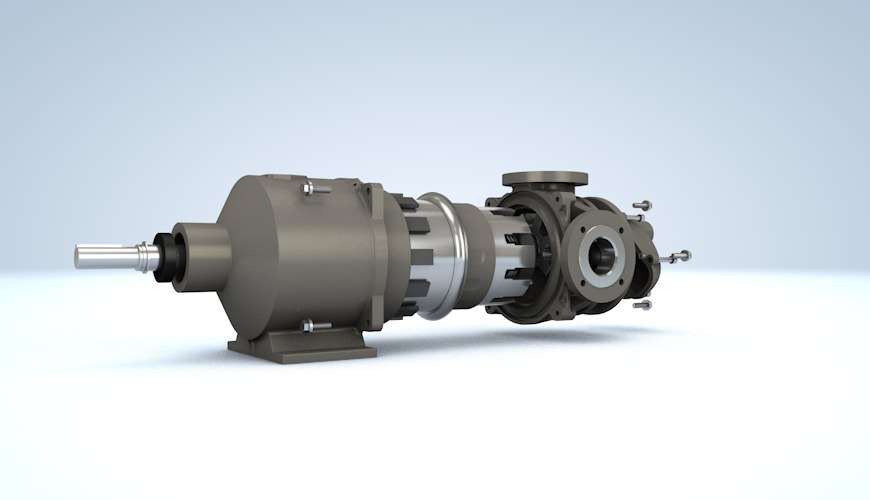

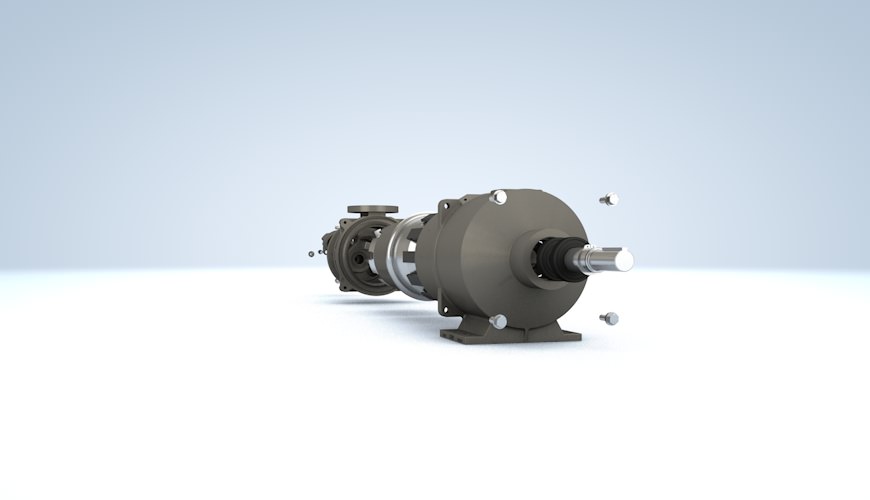

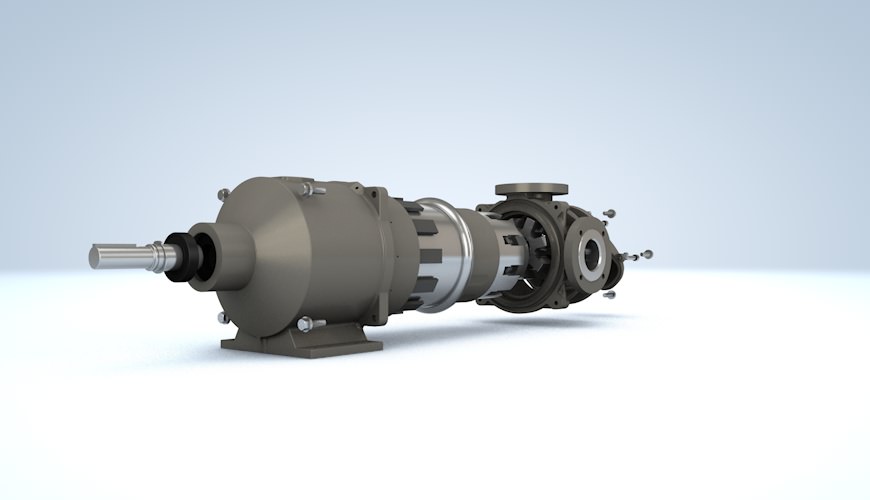

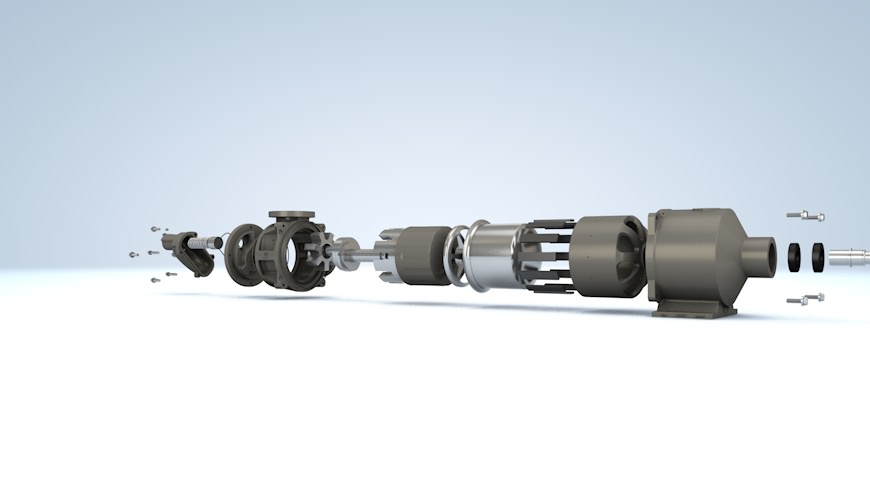

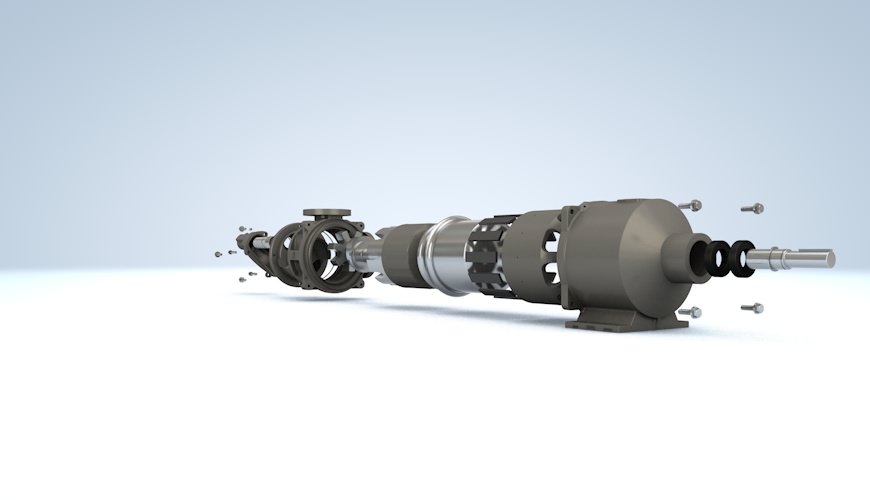

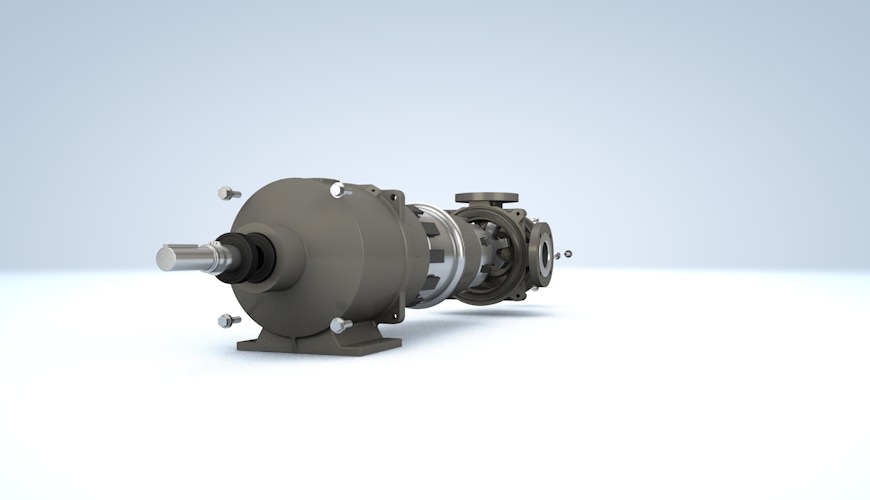

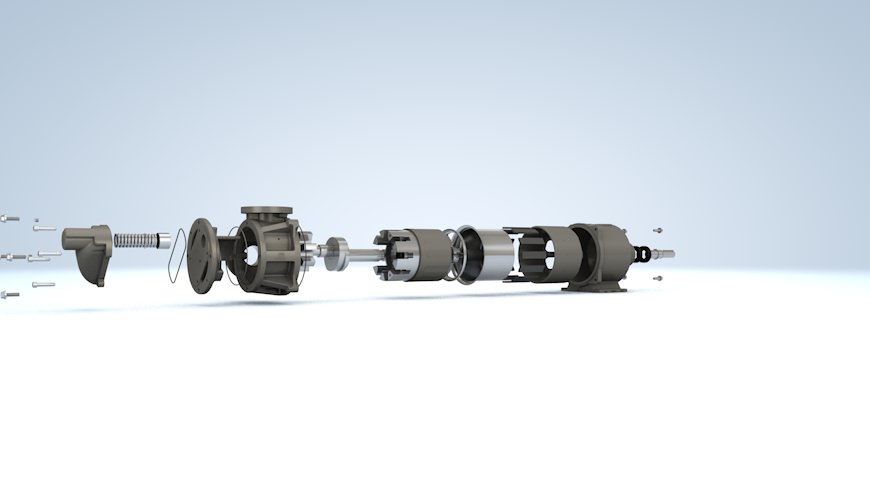

Interactive Models

1Integral Relief Valve

Features:

  1. Tamper resistant design
  2. Relieves by cracking at nominal pressure relief setting
  3. Contains only three components (valve cover, poppet and spring)

Benefits:

  1. Protects pump against over pressure condition
  2. Prevents unsafe misuse of the pressure relief valve
  3. Minimizes the chance for unwanted flow rate leakage through PRV

2Jackscrew Disassembly Holes

Feature:

  1. Jack screw holes in head

Benefit:

  1. Simplifies disassembly and reduces downtime

3Heavy-Duty Casing Materials

Feature:

  1. High strength ductile iron, grade WCB carbon steel or 316 Stainless Steel available

Benefits:

  1. Three materials available to suit your application needs
  2. Excellent corrosion resistance

4Static O-Ring Seals

Features:

  1. Only 2 static O-rings seal the fluid chamber
  2. Viton® is standard
  3. FEP-encapsulated Viton, PFA-encapsulated Silicone, Kalrez (optional)

Benefits:

  1. Improved leak protection over flat gaskets
  2. Excellent protection against corrosive fluids

5High Quality Gear Materials

Features:

  1. 1141 Steel (carbon steel and ductile iron models)
  2. 17-4PH Stainless Steel (stainless steel models)

Benefits:

  1. High tensile strength and long wear life
  2. Excellent corrosion resistance

6Between-the-Bearings Support System

Features:

  1. Eliminates traditional cantilever design
  2. Eccentric spindle is stationary and fully supported in three locations (head, crescent, and canister)
  3. Large bushings to optimally distribute loads

Benefits:

  1. Improved radial support of idler gear and rotor
  2. Longer mean time between repair
  3. Suitable for all viscosities

7Robust Bushing Design

Features:

  1. Premium grade carbon-graphite (standard)
  2. Bronze, tungsten carbide and resin-impregnated carbon graphite (optional)
  3. Lubricated and cooled by internal recirculation

Benefits:

  1. Longer wear life
  2. Suitable for a wide range of viscosities
  3. Broad chemical compatibility
  4. Run-dry capability
  5. Reduced load and increased wear life

8Containment Canister

Features:

  1. Single fluid chamber design
  2. Patent-pending design is strong, yet minimizes heat generation
  3. 316 Stainless Steel construction

Benefits:

  1. Improved fluid circulation
  2. Excellent corrosion resistance
  3. More reliable pump operation
  4. Higher viscosity capabilities

9Rare Earth Magnet System

Features:

  1. Neodymium-iron-boron magnets standard
  2. Samarium cobalt magnets optional
  3. Optimized magnet size and spacing

Benefits:

  1. Increased torque for high viscosity fluids
  2. High temperature capabilities
  3. Reduces chances of decoupling

10Canister Protection

Features:

  1. Skid pads in magnet housing
  2. Hub in support plate

Benefits:

  1. Prevents canister damage if bearings or bushings fail

11Powder Coated External Surfaces

Features:

  1. High-quality polyester powder coating of external surfaces (excluding Stainless Steel surfaces)
  2. Superior adhesion and hardness

Benefits:

  1. Chemically resistant
  2. Resistance to chipping and peeling

12Integral Foot

Feature:

  1. Integral with magnet housing

Benefits:

  1. Optimal shaft alignment
  2. Rigid mounting

13SKF® Explorer Deep Groove Ball Bearings

Features:

  1. Very precise tolerances
  2. Optimized internal surface finishes
  3. Greased with lifetime seal

Benefits:

  1. Longer bearing service life
  2. Lower maintenance and operating costs
  3. Maintenance-free

14No End Clearance Adjustment

Feature:

  1. Rotor-to-head clearance predetermined by spindle design

Benefits:

  1. No adjustments needed
  2. Self-adjusts for temperature changes
  3. Reduced assembly and maintenance time
Envirogear E Series Pump


Specifications and Performance

Model Ductile Iron Gear Pump Port Sizes Carbon Steel Gear Pump Port Sizes¹ Stainless Steel Gear Pump Port Sizes¹
Threaded Flanged Threaded Flanged Threaded Flanged
E1-2
E1-4
N/A N/A 1-1/2" NPT
1-1/2" BSPT
1-1/2" ANSI
2" ANSI
DN40
1-1/2" NPT
1-1/2" BSPT
1-1/2" ANSI
2" ANSI
DN40
E1-24
E1-32
2" NPT
2" BSPT
2" ANSI
2" ANSI 180°
2" NPT
2" BSPT
2" ANSI
2" ANSI 180°
3" ANSI
2" NPT
2" BSPT
2" ANSI
2" ANSI 180°
3" ANSI
DN50
E1-55
E1-69
E1-82
N/A 3" ANSI
4" ANSI
N/A 3" ANSI
4" ANSI
DN80
N/A 3" ANSI
3" ANSI 180°
4" ANSI
DN80
E1-133 N/A 4" ANSI² N/A 4" ANSI N/A 4" ANSI
E1-222 N/A 6" ANSI² 180° N/A 6" ANSI 180° N/A 6" ANSI 180°

(1) Flanged connections meet Class 150# ANSI
(2) Flanged connections meet Class 125# ANSI
Note: All port orientations 90° unless specifically noted 180°
Note: All E Series ANSI flanges are "raised-face" (RF), with the exception of E1-133/222 models which are "flat-face" (FF)

Model Ductile Iron / Carbon Steel Gear Pumps Stainless Steel Gear Pumps
RPM GPM (m³/h) RPM GPM (m³/h)
E1-2 1,750 15 (3.4) 1,150 10 (2.3)
E1-4 1,750 30 (6.8) 1,150 20 (4.5)
E1-24 780 75 (17.0) 640 55 (12.5)
E1-32 780 100 (22.7) 640 80 (18.2)
E1-55 640 135 (30.7) 520 110 (25.0)
E1-69 640 170 (38.6) 520 140 (31.8)
E1-82 640 200 (45.4) 520 160 (36.3)
E1-133 520 300 (68.1) 520 300 (68.1)
E1-222 520 500 (113.6) 520 500 (113.6)

Competitor Model Cross Reference

Blackmer E Series Blackmer G Series Viking® Tuthill® Gorman-Rupp®
E1-2 G1-2 H 015 GHS 1-1/2
E1-4 G1-4 HL 030 GHS 1-1/2
E1-24 G1-24 K 120 GHS 2
E1-32 G1-32 KK 130 GHS 2
E1-55 G1-55 L & LQ 200 GHS 2-1/2, 3
E1-69 G1-69 LL 210 GHS 3
E1-82 G1-82 LS 250 GHS 3
E1-133 G1-133 Q N/A GHS 4
E1-222 G1-222 QS 550 GHS 6

Note: See the Blackmer Competitor Dimensional Comparison Guide for detailed dimensional information
Viking® is a registered trademark of Viking Pump, Inc., a unit of IDEX Corporation. Tuthill® is a registered trademark of Tuthill Corporation. Gorman-Rupp® is a registered trademark of Gorman-Rupp® Company.
