blackmer-lgl-600 XL1.5 Cutaway 600 XLF1.5 600

XL High-Speed Sliding Vane Pumps High-Speed Pumps for Use in Processing, Filling and Transfer Applications

Designed for use in refineries, lube oil plants and general industry for processing, filling and transfer applications, the Iron Line XL pump line features replaceable casings, liners and end discs that allow easy rebuilding of the pumping chamber to like-new condition without removing the pump from the piping.

Features and Benefits

  • Ductile-iron construction with internal relief valve
  • Blackmer mechanical seal and ball bearing construction provide maximum reliability
  • Symmetrical bearing support assures even loading and wear for long life
  • Adjustable relief valve protects pump against excessive pressures
  • External ball bearings are isolated from pumpage by mechanical seals to maximize bearing life and minimize contamination risk
  • Advantages of sliding vane technology:
    • Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
    • Excellent self-priming and dry-run capabilities
    • Sliding vane design provides sustained performance and trouble-free operation
    • Easy maintenance: vanes can be easily replaced without removing the pump from the piping system
    • High suction lift and line-stripping capabilities
    • Low maintenance and low life-cycle costs

Applications

  • Refinery applications
  • Lube oil plants
  • General industry
  • Processing applications
  • Filling applications
  • Transfer applications

Performance and Specifications

AVAILABLE MODELS
  • XRL(F)1.25
  • XL(F)1.25
  • XL(F)1.5

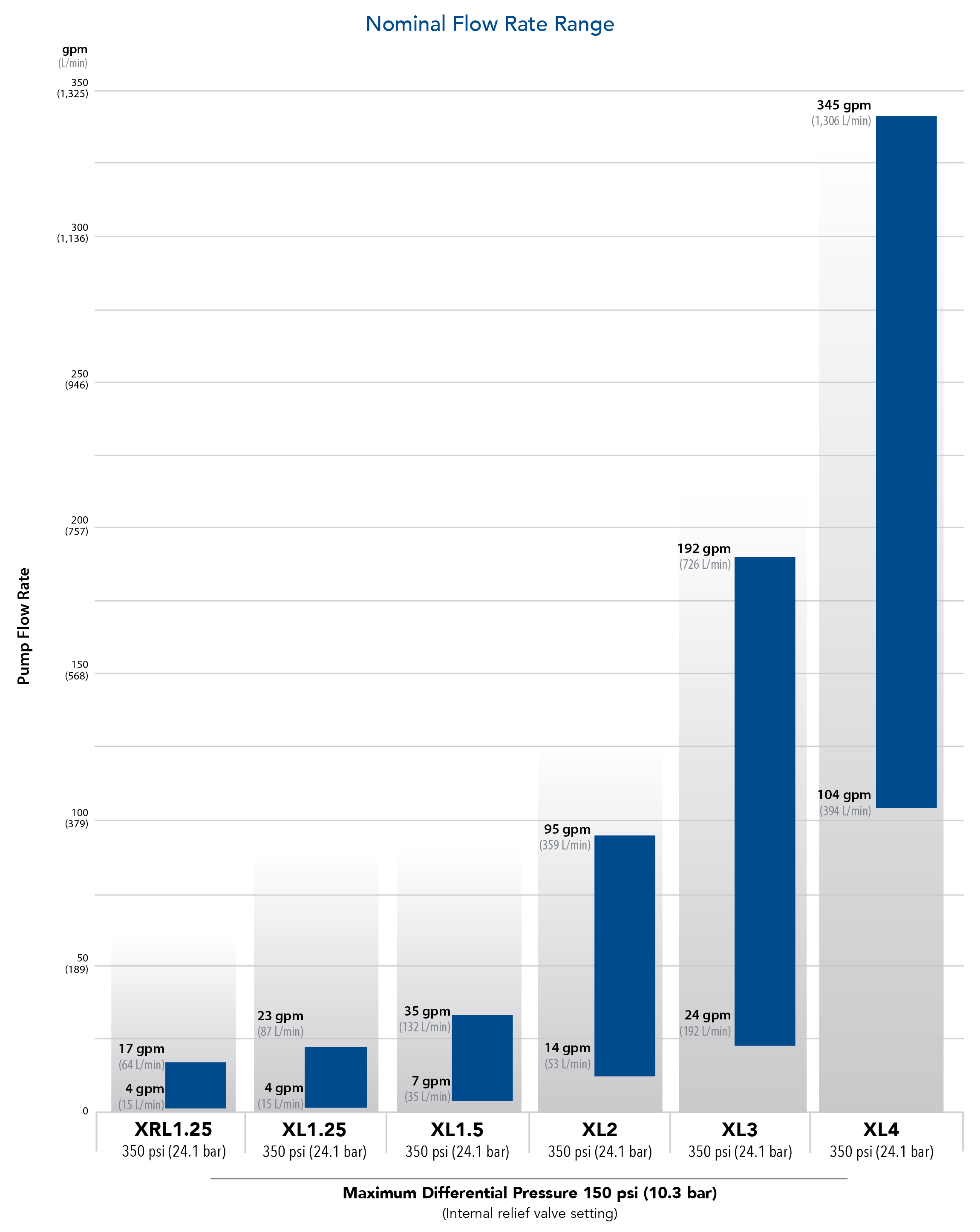

NOMINAL FLOW RATE RANGE
  • XRL(F)1.25: 4 - 17 gpm (15 - 64 L/min)
  • XL(F)1.25: 4 - 23 gpm (15 - 87 L/min)
  • XL(F)1.5: 7 - 35 gpm (35 - 132 L/min)
DIFFERENTIAL PRESSURE
  • 150 psi (10.3 bar)
MAXIMUM WORKING PRESSURE (MAWP)
  • 350 psi (24.1 bar)
VISCOSITY
  • 0.2 - 8,500 cP
TEMPERATURE
  • -25°F to 240°F (-32°C to 115°C)
MIN/MAX SPEED (rpm)
  • 100 - 1,750
PRIMARY MATERIALS OF CONSTRUCTION
  • Ductile Iron
CONNECTION ORIENTATION
  • Side Inlet | Side Outlet
VANE MATERIALS
  • Duravane
  • EC Laminate
AVAILABLE CERTIFICATES
  • Hydrostatic Test
  • Performance Test
  • NPSH Test
  • Material (actual or typical)
  • Dimensional (pump only or unit)

Dimensions

Pump Model L W H Approx. Wt.
XL1.25, XRL1.25 in 9-5/16 9 9-1/5 30 lb
mm 236.5 230.2 233.4 13.6 kg
XLF1.25, XRLF1.25 in 13 9-1/8 8 39 lb
mm 330.2 231.8 203.2 17.7 kg
XL1.5, XRL1.5 in. 9-5/16 9 9-1/5 30 lb
mm 236.5 230.2 233.4 13.6 kg
XLF1.5, XRLF1.5 in 13 9-1/8 8 39 lb
mm 330.2 231.8 203.2 17.7 kg

Materials of Construction

Parts Materials
Casing, Heads, Relief Valve Cover Ductile Iron: ASTM 536
Discs, Bearing Covers, Liner Cast Iron: ASTM A48

Pump Options

Options Details
ORIENTATION OPTIONS Right Hand: INLET is to the right, when looking from driven side
Left Hand: INLET is to the left, when looking from driven side
PORTING OPTIONS Side Outlet: Outlet 180° inline porting
CONNECTION OPTIONS NPT (threaded)
MOUNTING OPTIONS Pump Only
Unit: Pump, Motor, Baseplate, Couplings, Guards
SEALING OPTIONS Blackmer single mechanical seal

Vane Options

Material Temperature Limits Viscosity
Duravane PPS/PTFE/Glass -25°F to 240°F (-32°C to 115°C) 0.2 - 4,250 cP
EC Laminate: Melamine Formaldehyde Resin/Fiber -25°F to 240°F (-32°C to 115°C) 0.2 - 8,500 cP

Elastomer Options

Material Temperature Limits
FKM -15°F to 240°F (-26°C to 115°C)
PTFE - SS Spring 0°F to 240°F (-18°C to 115°C)
Buna-N -25°F to 240°F (-32°C to 115°C)
