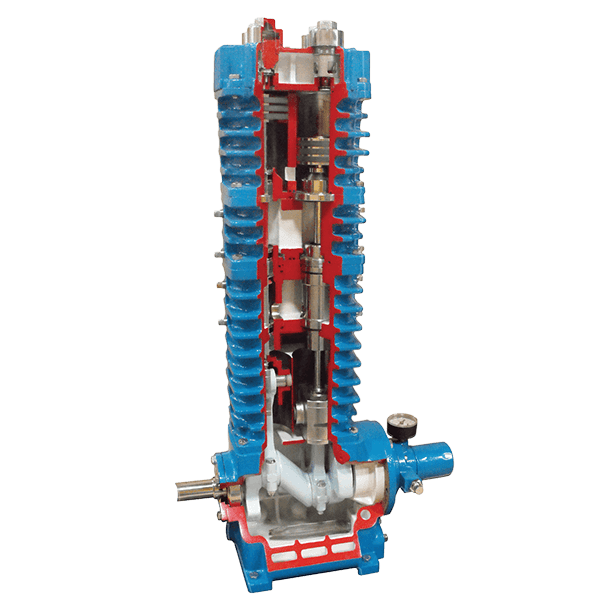

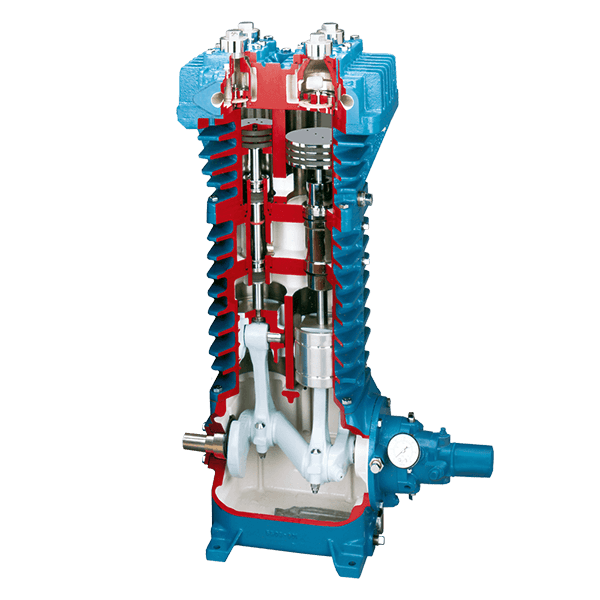

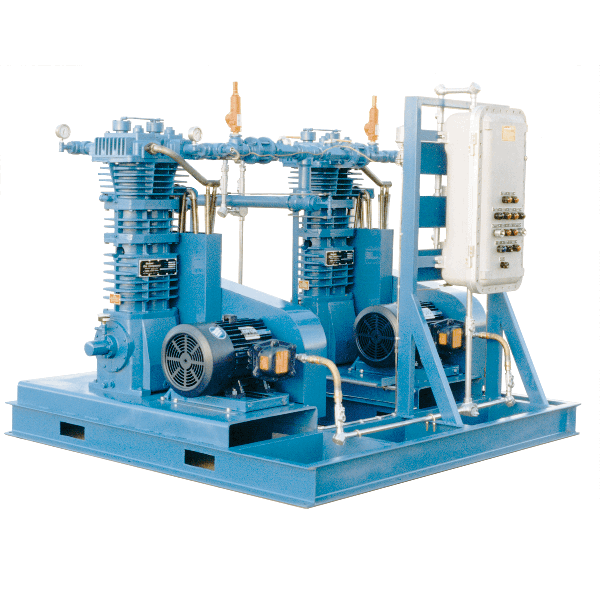

HDL372-pkg_px980123_3 HD613B-B-dplx_PX951130-6 hd942 HD163C-CO_cutaway HD Compressor Cut 600

HD Series Reciprocating Gas Compressors HD080, HD160, HD170, HD340, HD360, HD370, HD600, HD610, HD640, HD940

The HD Series Reciprocating Gas Compressors provide efficient and quiet delivery of oil-free gas or air. Single and two-stage compressors combine advanced design technology and state-of-the-art materials to deliver maximum performance with minimum maintenance. With a variety of options and models, these compressors are highly customizable and can be set up to meet the exact specifications for application requirements.

The ductile iron and stainless steel materials used in these compressors provide toughness and strength that helps extend compressor life under all operating conditions. The HD Series Reciprocating Gas Compressors are available in two model types - HD and HDL - and a variety of sizes. The HD air-cooled models are suitable for most applications, especially for operation at lower compression ratios and for liquefied gas transfer applications. HDL models have a liquid-cooled head and cylinder for more demanding applications.

Performance and Specifications

Single-Stage Models

Single-Seal
Double-Seal
Triple-Seal
HD082 HD161
HD162
HD163
HDL322 HDL342
HDL343
HD361
HD362/HDL362
HD363/HDL363
HDL642
HDL643
HD602/HDL602
HD603/HDL603
HD942/HDL942
HD943/HDL943
Number of Cylinders 1 2 2 2 2 2 2 2 (Double Acting)
Bore, in. (mm) 3.0 (76.2) 3.0 (76) 2.0 (51) 2.69 (68) 4.0 (102) 3.25 (83) 4.625 (117) 4.625 (117)
Stroke, in. (mm) 2.5 (63.5) 2.5 (64) 3.0 (76) 3.0 (76) 3.0 (76) 4.0 (102) 4.0 (102) 4.0 (102)
Maximum Allowable Working Pressure - psia (bar) 350 (24.1) 350 (24.1) 1,000 (69) 750 (51.7) 350 (24.1) 750 (51.7) 350 (24.1) 350 (24.1)
Minimum/Maximum rpm 350 / 825 350 / 825 350 / 825 350 / 825 350 / 825 350 / 825 350 / 825 350 / 825
Piston Displacement
@100 rpm - CFM (m³/hr)
@Min rpm - CFM (m³/hr)
@Max rpm - CFM (m³/hr)
1.02 (1.74)
3.58 (6.1)
8.45 (14.35)
2.05 (3.48)
7.16 (12.2)
16.9 (28.7)
1.09 (1.85)
3.81 (6.49)
9.00 (15.3)
1.97 (3.34)
6.89 (11.71)
16.25 (27.61)
4.36 (7.41)
15.3 (26.0)
36.0 (61.2)
3.84 (6.5)
13.4 (22.8)
31.7 (53.8)
7.78 (13.2)
27.2 (46.3)
64.2 (109.0)
14.99 (25.47)
52.46 (89.1)
125.2 (212)
Max. bph (kW) 7.5 (5.5) 10 (7.5) 15 (11) 15 (11) 15 (11) 40 (30) 40 (30) 50 (37)
Wt. w/Flywheel - lb. (kg) 215 (97) ˜225 (102) ~385 (175) ˜375 (170) ˜365 (166) ˜705 (320) ˜705 (320) ˜905 (410)
Inlet / Outlet Connections 0.75" NPT 0.75" NPT 1.5" 600# ANSI 1.5" 600# ANSI 1.5" 300# ANSI 2" 600# ANSI 2" 300# ANSI 2" 300# ANSI

Two-Stage Models

Double-Seal Triple-Seal HD172 / HDL172
HD173 / HDL173
HD372 / HDL372
HD373 / HDL373
HD612 / HDL612
HD613 / HDL613
1st Stage 2nd Stage 1st Stage 2nd Stage 1st Stage 2nd Stage
# Cyl. per Stage 1 1 1 1 1 1
Bore, in. (mm) 3.0 (76.2) 1.75 (44.5) 4.625 (117) 2.687 (68)­ 6 (152) 3.25 (.83)
Stroke, in. (mm) 2.5 (63.5)   3.0 (76)   4.0 (102)
Maximum Allowable Working Pressure - psia (bar)   615 (42.4)   615 (42.4)   415 (28.6)
Minimum/Maximum rpm 350 / 825   350 / 825   350 / 825
Piston Displacement
@100 rpm - CFM (m³/hr)
@Min rpm - CFM (m³/hr)
@Max rpm - CFM (m³/hr)

1.02 (1.73)
3.57 (6.07)
8.42 (14.3)

2.92 (4.96)
10.2 (17.3)
26.1 (40.8)

6.54 (11.1)
22.9 (38.9)
53.7 (91.2)

Max. bph (kW) 10 (7.5) 15 (11) 40 (30)
Wt. w/Flywheel, lb. (kg) ˜290 (132) ˜405 (184) ˜775 (352)
Inlet / Outlet NPT, in. 0.75/0.75 1.25/1.00 2.00*/1.50*
*Weld type flanges available

Features and Benefits

  • Single-stage models available in 7 sizes with piston displacements to 125 cfm (212 m3/hr) and working pressures to 1,000 working pressures up to 1,000 psi (69 bar) for use on low to moderate compression ration applications
  • 3 sizes of two-stage models available for higher compression ratio requirements
  • Available in air-cooled or liquid-cooled models
  • Come in single- & two-stage models
  • Available with single, double & triple seal models, providing positive sealing under all operating conditions with materials to suit any application
  • Triple seal models are well suited for handling toxic, hazardous or corrosive gases

Applications:

  • Vapor recovery
  • Gas gathering
  • Gas transfer
  • Gas evacuation
  • Enhanced recovery
  • Gas blanketing
  • Pressure boosting
  • Flare elimination
  • Leak test recovery
  • Liquid gas transfer

Common Industrial Gases:

  • Ammonia
  • Argon
  • Butadiene
  • Butane
  • Carbon Dioxide
  • Chlorine
  • Ethane
  • Ethyl Alcohol
  • Helium
  • Hydrogen
  • Hydrogen Chloride
  • Isobutene
  • Methyl Chloride
  • Nitrogen
  • Nitrous Oxide
  • Propylene
  • Refrigerants
  • Sulfur Dioxide
  • Vinyl Chloride
Visit the Compressor Solutions page for more information about the HD Series Reciprocating Gas Compressors.

Options

Options Available Literature  Details
Crankcase Oil Heater CB322 Used to maintain adequate oil temperature in cold to severe climates
Distance Piece Options CB037 Section of gas compressor between crankcase and compressor cylinder that isolates the two areas, providing oil-free operation for cylinder
Pressure Gauges CB105 Various pressure gauges available
Suction Valve Unloaders & Systems CB039 Prevents the compression of gas in the cylinder by holding the suction valves open, allowing the compressor to be started without a load and to control compressor's capacity
Wear & Corrosion Resistant Compressors (TNT-12) CB001 Wear and corrosion resistant treatment for compressor, with TNT-12 impregnated parts
O-Ring Materials    Optional O-ring materials include PTFE, FKM, Neoprene, Ethylene-Propylene
Alternate Piston Ring Materials    Optional Piston-ring materials include poly filled PTFE
Extended Crankshaft    Extended crankshaft available for direct drive mounting
Oversized Flywheels    Available for various drive options

Ancillary Equipment

Equipment Available Literature  Details
4-Way Valves CB046 For piping, in aiding for easy transition from liquid transfer to vapor recovery - comes with handle and flow indicator
Electrical Schematic CB276  Overview of a generalized wiring schematic for typical installations
Float Switch Information CB145 Activates alarms and/or shut-down equipment when a liquid rises or falls past the switch
Liquid Traps CB212 Trap installed in the suction line to stop liquid from entering the compressor
Liquid Traps, ASME Code CB218  ASME coded trap installed in the suction line to stop liquid from entering the compressor
Low Oil Pressure Switches  CB020  Sends signal when the compressor's crankcase oil pressure falls
Mounting Arrangements  CB111  A variety of mounting arrangements available for compressors
Strainer CB172  Features a 30-mesh stainless steel screen
Belt Guards    Available in either aluminum or stainless steel
Pressure Switches    Activates alarms and/or shutdown equipment for suction, discharge, differential, and/or oil pressure
Temperature Switches    Activates alarms and/or shutdown equipment for discharge and/or oil temperature
Temperature Gauges    Visual confirmation of temperature - typically on the suction and discharge process gas location
Thermowells    Protects temperature monitoring devices from harsh process gas conditions
Control Panels and Starters    Junction box and full turn-key functionality available in required classifications
NPT or Welded Piping Systems    Threaded or welded steel piping systems
Pressure Gauges  CB105  Visual confirmation of pressure - typically on the suction, discharge, and oil locations
Receivers    Often times used as a holding vessel for pressure control on the suction or discharge
Relief Valves    Overpressure safety devices required on the compressor discharge and any associated ASME code vessels
Shutoff Valves    Available in either manual or powered
Aftercoolers    Available in either air or water cooled
Motor or engine drives    Available in various classifications and fuel types
Repair tool kits  CB110  List of part numbers for special tools and tool kits used on compressors
Unloader Solenoid Valve CB315
3-way solenoid suction valve unloader control
