lgld2e_right XL Cutaway 600

XL 2-4 Inch Sliding Vane Pumps Ductile-Iron Pumps for Use in Processing, Filling and Transfer Applications

Designed for use in refineries, lube oil plants and general industry for processing, filling and transfer applications, the XL pump line - which is part of the Iron Line of sliding vane pumps - features replaceable casings, liners and end discs that allow easy rebuilding of the pumping chamber to like-new condition without removing the pump from the piping.

Features and Benefits

  • Ductile-iron construction with internal relief valve
  • Blackmer mechanical seal and ball bearing construction provide maximum reliability
  • Symmetrical bearing support assures even loading and wear for long life
  • Adjustable relief valve protects pump against excessive pressures
  • External ball bearings are isolated from pumpage by mechanical seals to maximize bearing life and minimize contamination risk
  • Advantages of sliding vane technology:
    • Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
    • Excellent self-priming and dry-run capabilities
    • Sliding vane design provides sustained performance and trouble-free operation
    • Easy maintenance: vanes can be easily replaced without removing the pump from the piping system
    • High suction lift and line-stripping capabilities
    • Low maintenance and low life-cycle costs

Applications

  • Refinery applications
  • Lube oil plants
  • General industry
  • Processing applications
  • Filling applications
  • Transfer applications

Performance and Specifications

AVAILABLE MODELS
  • XL2
  • XL3
  • XL4

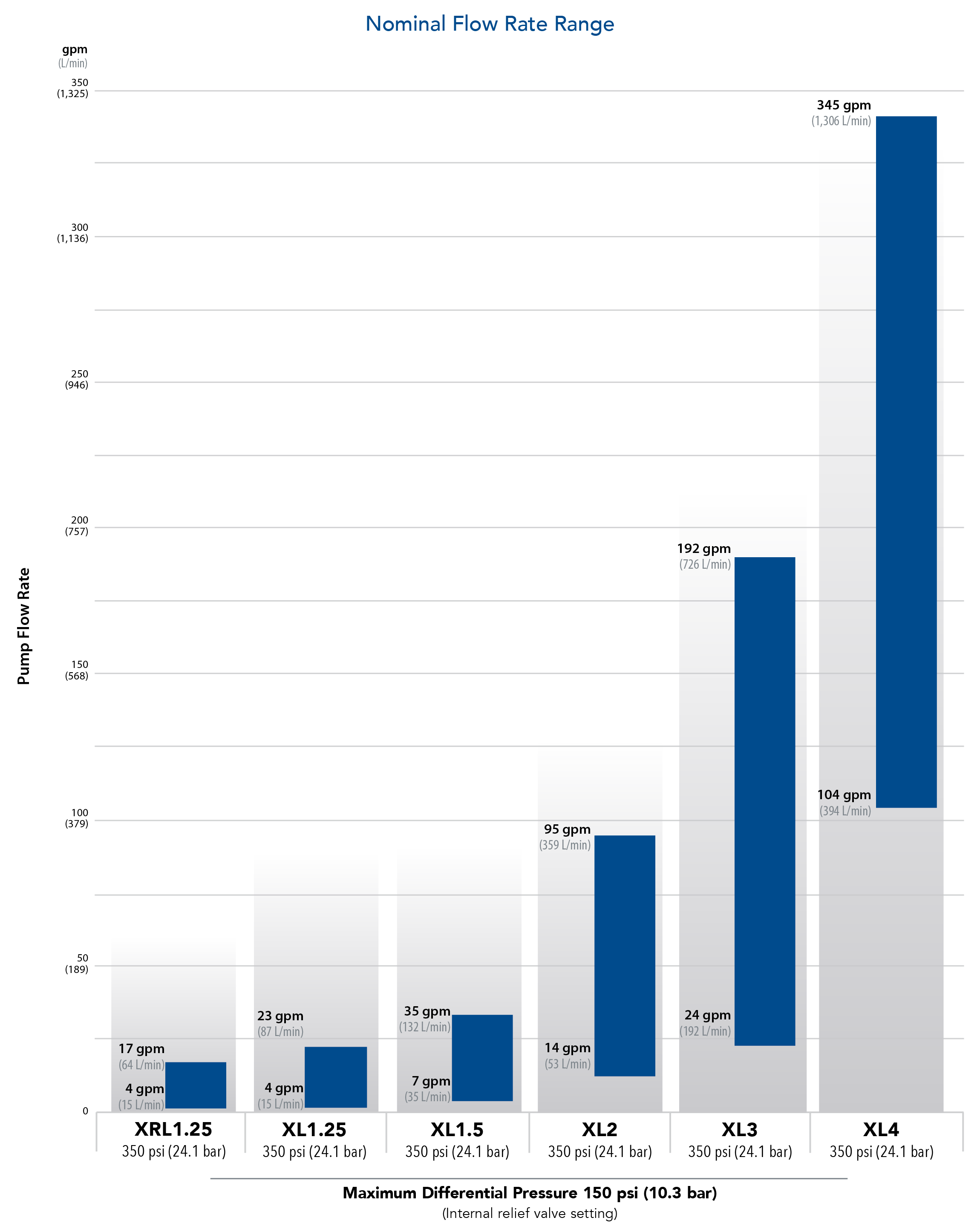

NOMINAL FLOW RATE RANGE
  • XL2: 14 - 95 gpm (53 - 359 L/min)
  • XL3: 24 - 192 gpm (192 - 726 L/min)
  • XL4: 104 - 345 gpm (394 - 1,306 L/min)
DIFFERENTIAL PRESSURE
  • 150 psi (10.3 bar)
MAXIMUM WORKING PRESSURE (MAWP)
  • 350 psi (24.1 bar)
VISCOSITY
  • 0.2 - 4,250 cP
TEMPERATURE
  • -25°F to 240°F (-32°C to 115°C)
MIN/MAX SPEED (rpm)
  • XL2, XL3: 125 - 780
  • XL4: 125 - 640
PRIMARY MATERIALS OF CONSTRUCTION
  • Ductile Iron
CONNECTION ORIENTATION
  • Side Inlet | Top Outlet
VANE MATERIALS
  • Duravane
  • EC Laminate
  • EC Cast Iron
AVAILABLE CERTIFICATES
  • Hydrostatic Test
  • Performance Test
  • NPSH Test
  • Material (actual or typical)
  • Dimensional (pump only or unit)

Dimensions

Pump Model L W H Approx. Wt.
XL2 in 13-4/9 11 10 85 lb
mm 341.3 281 254 38.6 kg
XL3 in 15-15/16 15-7/8 13-3/8 160 lb
mm 404.8 403.2 339.7 72.6 kg
XL4 in 16-7/16 16-15/16 15-7/16 205 lb
mm 417.5 430.2 392.2 93 kg

Materials of Construction

Parts Models Materials
Casing, Heads, Relief Valve Cover All XL Models Ductile Iron: ASTM 536
Liner  XL2B, XL3B
Ductile Iron: ASTM 536
XL4C  Cast Iron: ASTM A48

Pump Options

Options
ORIENTATION OPTIONS Right Hand: INLET is to the right, when looking from driven side
Left Hand: INLET is to the left, when looking from driven side
PORTING OPTIONS Top Outlet: Outlet 90º offset from inlet
CONNECTION OPTIONS NPT (threaded)
MOUNTING OPTIONS Pump Only
Unit: Pump, Motor, Baseplate, Couplings, Guards
SEALING OPTIONS Blackmer single mechanical seal

Vane Options

Material Temperature Limits Viscosity
Duravane PPS/PTFE/Glass -25°F to 240°F (-32°C to 115°C) 0.2 - 4,250 cP
EC Laminate: Melamine Formaldehyde Resin/Fiber -25°F to 240°F (-32°C to 115°C) 0.2 - 4,250 cP
Cast Iron ASTM A48, CI25 -25°F to 240°F (-32°C to 115°C) 105 - 4,250 cP

Elastomer Options

Materials Temperature Limits
FKM -15°F to 240°F (-26°C to 115°C)
PTFE - SS Spring 0°F to 240°F (-18°C to 115°C)
Buna-N -25°F to 240°F (-32°C to 115°C)
