TX TXD Series 600 TXD1200 600

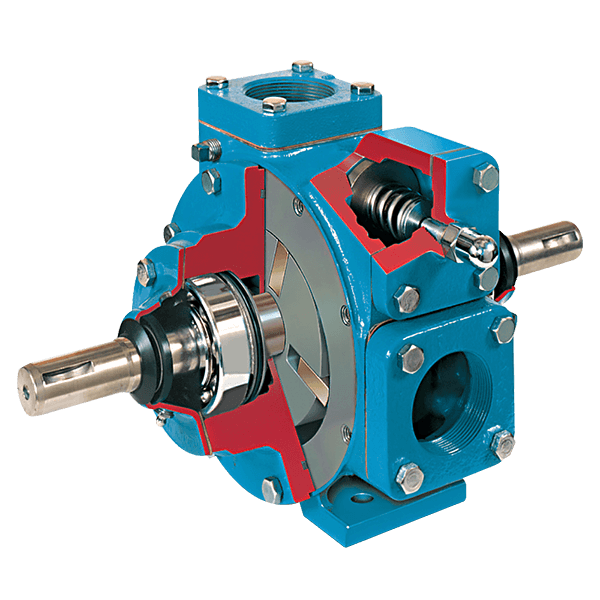

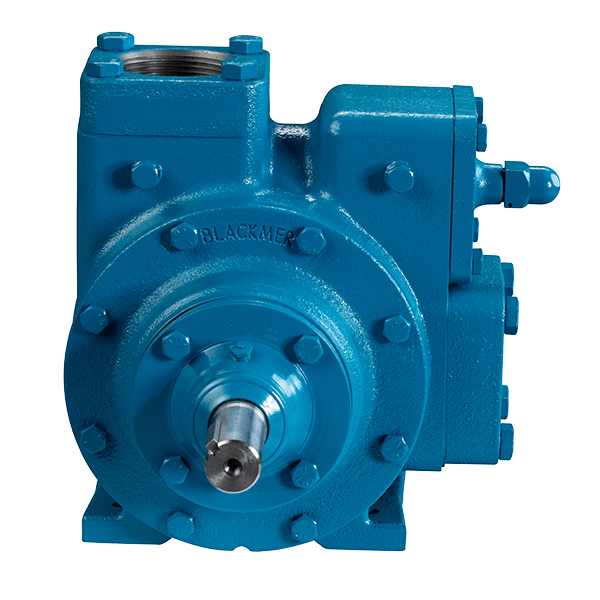

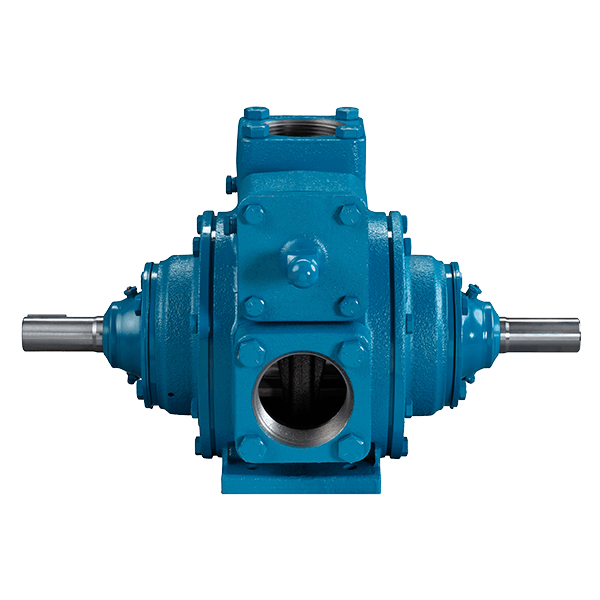

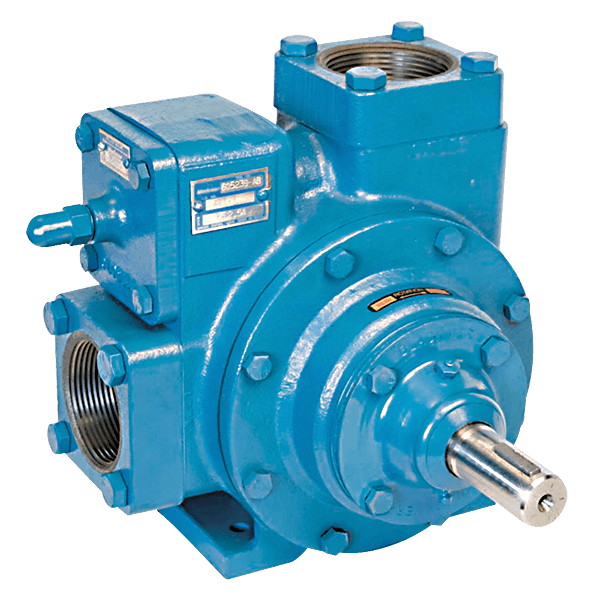

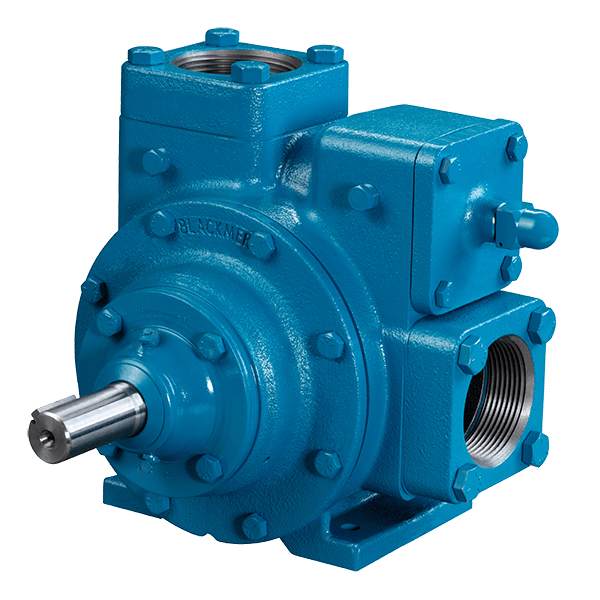

TXD Sliding Vane Pumps Pumps Utilized for Fast and Quiet Operation, Compatible with All Biodiesel and Ethanol Blends

Part of the Iron Line, Blackmer® TX/TXD/TXDI Series Sliding Vane Pumps are durable pumps utilized for fast and quiet operation. The sliding vane design provides sustained performance and trouble-free operation. These pumps are equipped with FKM O-rings and Blackmer mechanical seals that are compatible with all biodiesel and ethanol blends. TX/TXD/TXDI options include corrosion resistant relief valve, pneumatic relief valves and Buna or PTFE elastomers and seals.

Features and Benefits

  • Double-ended drive shaft for either clockwise (RH) or counterclockwise (LH) rotation
  • External roller ball bearings support the rotor from both sides, creating a stable environment for the internal mechanical seals
  • Dual-ended shaft on 2-, 2.5- and 3-in models simplifies installation
  • Blackmer mechanical seal and ball-bearing construction provide maximum reliability
  • Internal mechanical seals allow for extended dry run and continuous operation with non-lubricating liquids
  • Symmetrical bearing support assures even loading and wear for long life
  • Adjustable relief valve protects pump against excessive pressures
  • T-type strainers are available to protect pumping systems from damage caused by welding slag and foreign matter in pumps and tanks
  • High volumetric efficiency and symmetrical bearing support means less required horsepower than other PD pumps, meaning a cost savings on both motor operation and electricity
  • External ball-bearings are isolated from pumpage by mechanical seals to maximize bearing life and minimize contamination risk
  • Easy maintenance: vanes can be easily replaced -- without removing pump from truck
  • Advantages of sliding vane technology:
    • Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
    • Excellent self-priming and dry-run capabilities
    • Sliding vane design provides sustained performance and trouble-free operation
    • High suction lift and line-stripping capabilities
    • Low maintenance and low life-cycle costs

Applications

Transport Delivery, Fleet Refueling, & Bulk Transfer:

  • Fuel oil
  • Jet fuel & aviation fuel
  • Gasoline
  • Ethanol & other alcohols
  • Lube oil
  • Solvents
  • Ester
  • Ketone
  • Naphtha
  • Ether
  • Amine
  • Aromatic
  • Terpene
  • Glycol
  • Additives

Performance and Specifications

AVAILABLE MODELS
  • TX1.5
  • TXD(I)2
  • TXD(I)2.5
  • TXD(I)3
  • TX(I)4

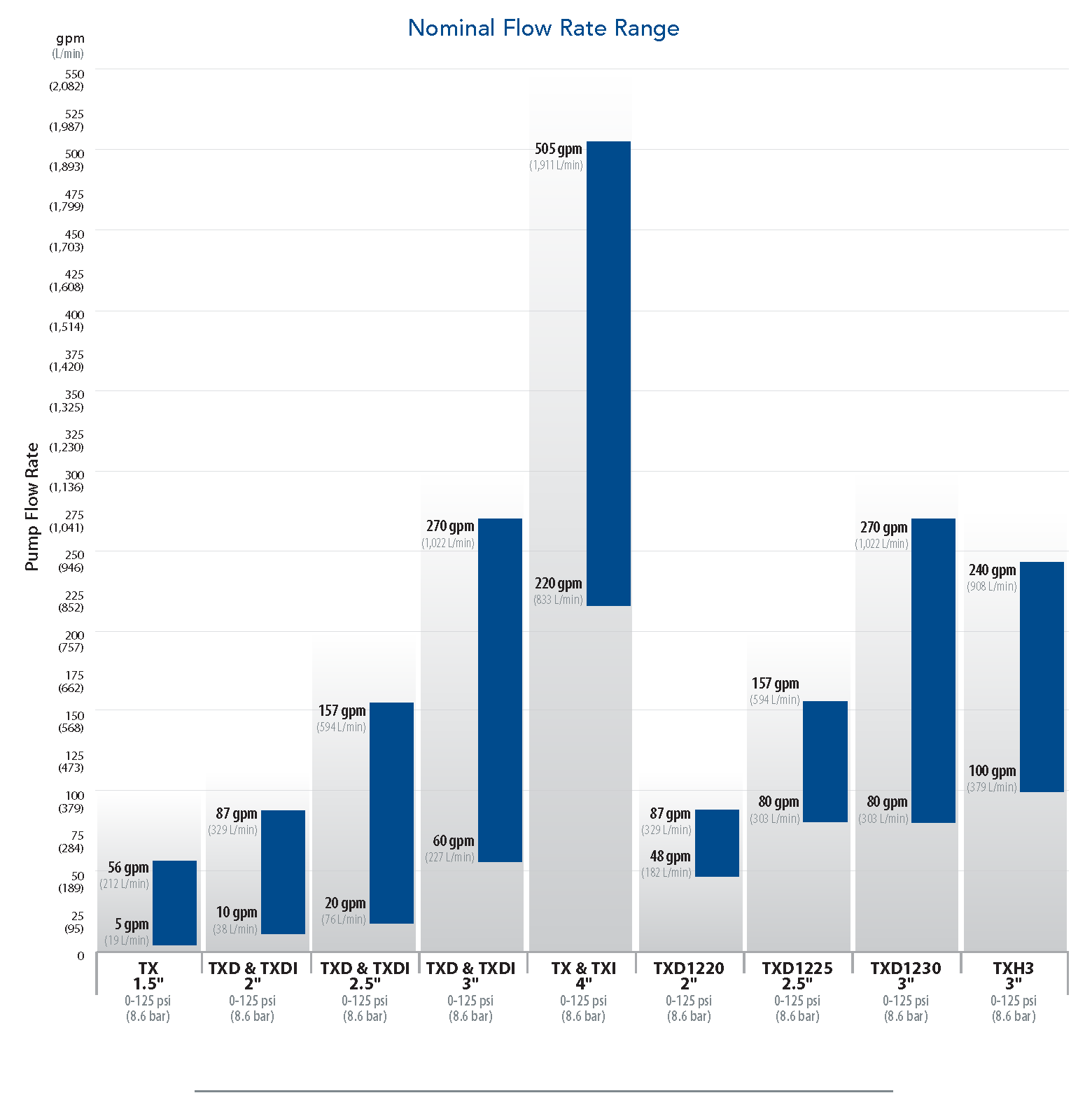

NOMINAL FLOW RATE
  • TX1.5: 56 gpm (212 L/min)
  • TXD(I)2: 87 gpm (329 L/min)
  • TXD(I)2.5: 157 gpm (594 L/min)
  • TXD(I)3: 270 gpm (1,022 L/min)
  • TX(I)4: 505 gpm (1,911 L/min)
DIFFERENTIAL PRESSURE
  • 125 psi (8.6 bar)
MAXIMUM WORKING PRESSURE (MAWP)
  • 175 psi (15.5 bar)
VISCOSITY
  • 1.0 - 4250 cP
TEMPERATURE
  • -25°F to 240°F (-32°C to 115°C)
MIN/MAX SPEED (rpm)
  • TX1.5: 200 - 800
  • TXD(I)2 & TXD(I)2.5: 70 - 780
  • TXD(I)3: 70 - 640
  • TX(I)4: 70 - 520
PRIMARY MATERIALS OF CONSTRUCTION
  • TX & TXD: Cast Iron
  • TXI & TXDI: Ductile Iron
CONNECTION ORIENTATION
  • TX & TXD: Side Inlet | Top Outlet
  • TXI & TXDI: Side Inlet | Side Outlet
VANE MATERIALS
  • Duravane
  • Bronze
CATALOG OPTIONS
  • Connections: NPT, Weld, Victaulic
  • Elastomers: BUNA, FKM, PTFE
  • Valve: Corrosion resistant
  • Bypass: 1-stage or pneumatic 2-stage
  • Inlet Strainer, Hydraulic Motor Adapter
AVAILABLE CERTIFICATES
  • Hydrostatic Test
  • Performance Test
  • NPSH Test
  • Material (actual or typical)
  • Dimensional (pump only or unit)

Dimensions

Pump Model   L W H Approx. Wt.
TX1.5 in 12-7/8 10-4/7 8-1/2 61 lb
mm 327 287.3 215.9 27 kg
TX(D)2A, TXDI2 in 16-3/4 10 8-11/16 70 lb
mm 425.5 254 220.6 32 kg
TX(D)2.5A, TXDI2.5 in 18-1/4 10-3/4 9-5/8 94 lb
mm 463.6 273.1 244.5 43 kg
TX(D)3E, TXDI3 in 20 1/3 13 1/2 12 4/5 152 lb
mm 515.9 342.9 325.4 69 kg
TX4A, TXI4 in 19-1/4 16-1/2 15-1/2 295 lb
mm 489 419.1 393.7 134 kg

Materials of Construction

PRESSURE PARTS Pump Model Material
Cylinder TX1.5–3 Cast Iron: ASTM A48
TX4 & TXDI2-4 Ductile Iron: ASTM 536
Heads TX1.5–3 Cast Iron: ASTM A48
TX4 & TXDI2-4 Ductile Iron: ASTM 536
Relief Valve Cover
TX1.5–3
Cast Iron: ASTM A48
TX4 & TXDI2-4 Ductile Iron: ASTM 536

Options

Pump Options

Options
ORIENTATION OPTIONS Double End: drive pump from either side
Right Hand: INLET is to the right, when looking from driven side
Left Hand: INLET is to the left, when looking from driven side
PORTING OPTIONS TX/TXD: Top Outlet: Outlet 90° offset from inlet
TXI/TXDI: Side Outlet: Outlet 180° offset from inlet
CONNECTION OPTIONS NPT (threaded)
Welded, Victaulic
MOUNTING OPTIONS Pump Only
with Hydraulic Motor Adapter and/or Inlet Strainer
SEALING OPTIONS Blackmer single mechanical seal

Vane Options

Materials Temperature Limits Viscosity
Duravane  -25°F to 240°F (-32°C to 115°C) 0.2 - 4250 cP

Elastomer Options

Materials Temperature Limits
FKM -15°F to 240°F (-26°C to 115°C)
Buna-N -25°F to 240°F (-32°C to 115°C)
PTFE - SS Spring 0°F to 240°F (-18°C to 115°C)

Downloads

Installation Operation Manuals (IOMs)

TX, TXD - 1.5, 2A, 2.5A, 3E, 4A TXDI - 2A, 2.5A, 3A & TXI4A
TX, TXD – 1.5, 2A, 2.5A, 3E, 4A TXDI - 2A, 2.5A, 3A, TXI4A
TXD2A-AVA, TXD2.5A-AVA, TXD3E-AVA, TXH3A-AVA
Piston Air Valve Style AVC, and Discontinued Style AVB
TXD2A-DMXAV, TXD2.5A-DMXAV, TXD3E-DMXAV
