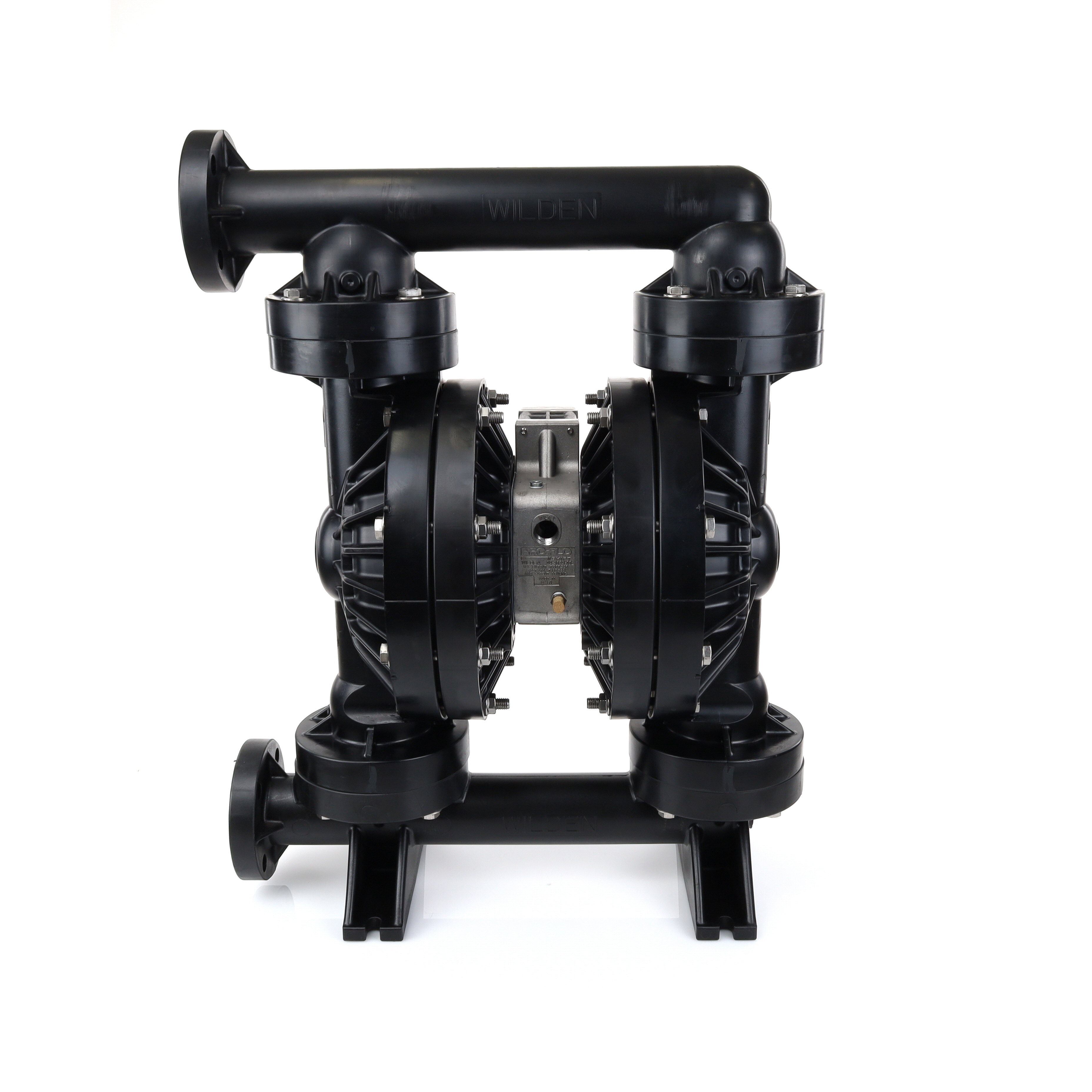

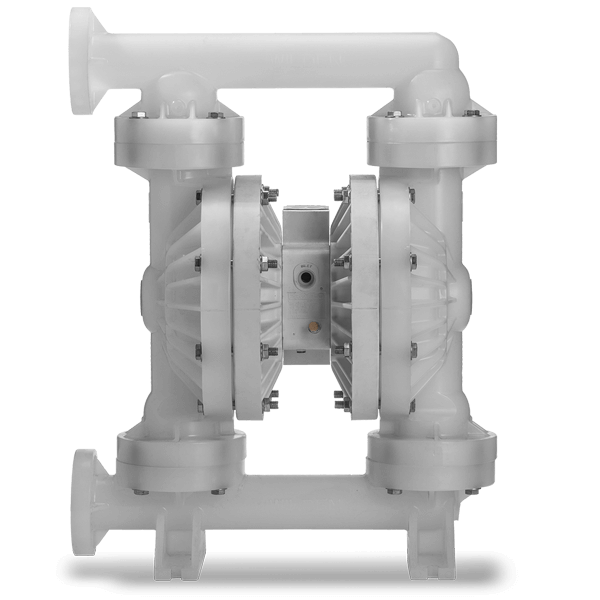

PS800 Plastic Bolted

51 mm (2") Pro-Flo® SHIFT Series Bolted Plastic Pump PS800

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 51 mm (2")
LIQUID DISCHARGE
  • 51 mm (2")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.9 m (19.3') Dry, 8.3 (27.2') Wet
  • EZ-Install TPE – 5.9 m (19.3') Dry, 8.3 m (27.2) Wet
  • Full-Stroke PTFE – 5.7 m (18.7') Dry, 8.3 m (27.2') Wet
MAX FLOW RATE
  • Rubber – 709 lpm (187 gpm)
  • EZ-Install TPE – 700 lpm (185 gpm)
  • Full-Stroke PTFE – 654 lpm (173 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4'')
DISPLACEMENT PER STROKE *
  • Rubber – 2.5 L (0.66 gal)
  • EZ-Install TPE – 2.6 L (0.68 gal)
  • Full-Stroke PTFE – 2.4 L (0.63 gal)
  • * 1 cycle = 2 strokes
Order Online
  • icon_cert-CE

Features and Benefits

The Wilden® bolted plastic air-operated double-diaphragm (AODD) pump combines maximum performance and efficiency with superior containment. Wilden's bolted-construction pumps offer improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.

  • DIN or ANSI flanged inlet/discharge liquid connections

Want to see how benefits of Pro-Flo SHIFT compare to the competition? Visit the Wilden Comparison Central Blog.

  • Featuring the energy-efficient Pro-Flo® SHIFT ADS
  • Greater flow - more gallons pumped per SCFM
  • Reduced air consumption and kilowatt usage
  • Bolted construction for superior containment
  • Large-solids passage
  • High suction lift
  • Ease of operation and maintenance
  • Increased on/off reliability
  • Longest Mean Time Between Repair (MTBR)

Performance and Specifications

Dimensions

dim-ps800-51mm2in-bpp

Note: Dimensions vary by material and connection. For additional information, please refer to the PS800 Plastic Manual.

Flow Curve – EZ-Install TPE-Fitted

flo-ps800-51mm2in-bpp

Note: Additional performance curves can be found in the PS800 Plastic Manual.

Air Inlet
  • 3/4" FNPT
LIQUID INLET
  • 51 mm (2")
LIQUID DISCHARGE
  • 51 mm (2")
CONNECTION TYPE

DIN/ANSI (Flanged)

MAX FLOW RATE
  • Rubber – 709 lpm (187 gpm)
  • EZ-Install TPE – 700 lpm (185 gpm)
  • Full-Stroke PTFE – 654 lpm (173 gpm)
MAX PRESSURE

8.6 bar (125 psi)

MAX DIAMETER SOLIDS

6.4 mm (1/4'')

MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.9 m (19.3') Dry, 8.3 (27.2') Wet
  • EZ-Install TPE – 5.9 m (19.3') Dry, 8.3 m (27.2) Wet
  • Full-Stroke PTFE – 5.7 m (18.7') Dry, 8.3 m (27.2') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 2.5 L (0.66 gal)
  • EZ-Install TPE – 2.6 L (0.68 gal)
  • Full-Stroke PTFE – 2.4 L (0.63 gal)
  • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Polypropylene 40 kg (89 lb)
PVDF 52 kg (115 lb)

Non-Wetted Housings

Description Material
Center Block Polypropylene
Air Valve Polypropylene
Air Chamber Polypropylene

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Geolast® -40°C to 82°C (-40°F to 180°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Polyurethane -12°C to 66°C (10°F to 150°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
