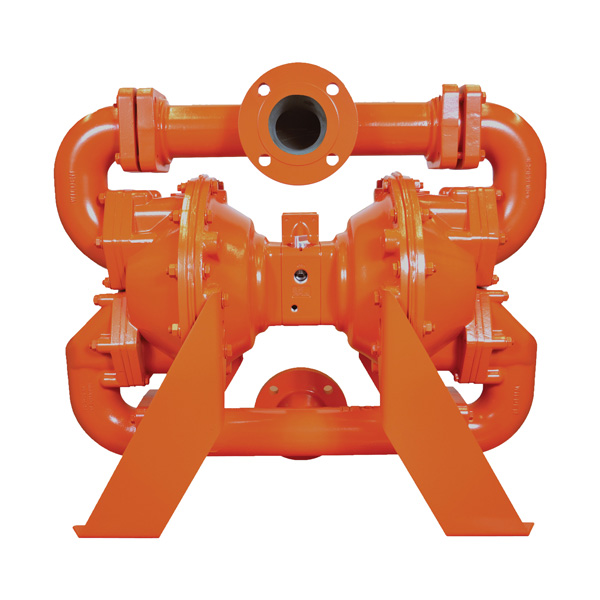

76 mm (3”) Pro-Flo® SHIFT Brahma™ Bolted Metal AODD Pump PS1510

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 76 mm (3")
LIQUID DISCHARGE
  • 76 mm (3")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
  • 7.3 m (23.9') Dry, 9.0 m (29.5') Wet
MAX FLOW RATE
  • 882 lpm (233 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 76 mm (3")
DISPLACEMENT PER STROKE *
  • 4.7 L (1.24 gal)
  • * 1 cycle = 2 strokes
  • icon_cert-CE
  • icon_cert-Ex

Features and Benefits

Legendary Wilden® and Brahma™ Series Air-Operated Double-Diaphragm (AODD) Pumps transfer solid-laden slurries safely and effectively. The Brahma Series utilizes a unique top inlet, bottom discharge orientation and flap valves to allow passage of large-size solids and avoid damage from product entrapment and settling of solids in intermittent-duty applications.

Large internal clearance and flow-through design result in large-solids passage capacity and prevent the pump from clogging. It features bolted construction for superior containment and the ability to pass compressible solids up to 76 mm (3″), depending on pump size.

  • Flap valve design for large-solids passage
  • Top inlet, bottom discharge for easy transfer of sediment and solid-laden fluids
  • Powered by Pro-Flo® SHIFT ADS
  • Chem-Fuse™ Internal Piston Diaphragm (IPD) Wil-Flex® Option for 2-3x extended diaphragm life

Downloads

EOMs

Model: PS1510 | Code: WIL-11320-E-03

Spec Sheets

Model: PS1510 | Code: WIL-11300-T-02

Performance and Specifications

Dimensions

Dim-PS1510-76mm3in-Pro-FloSHIFTBrahma-BMP

Note: Dimensions vary by material and connection. For additional information, please refer to the PS1510 Metal Manual.

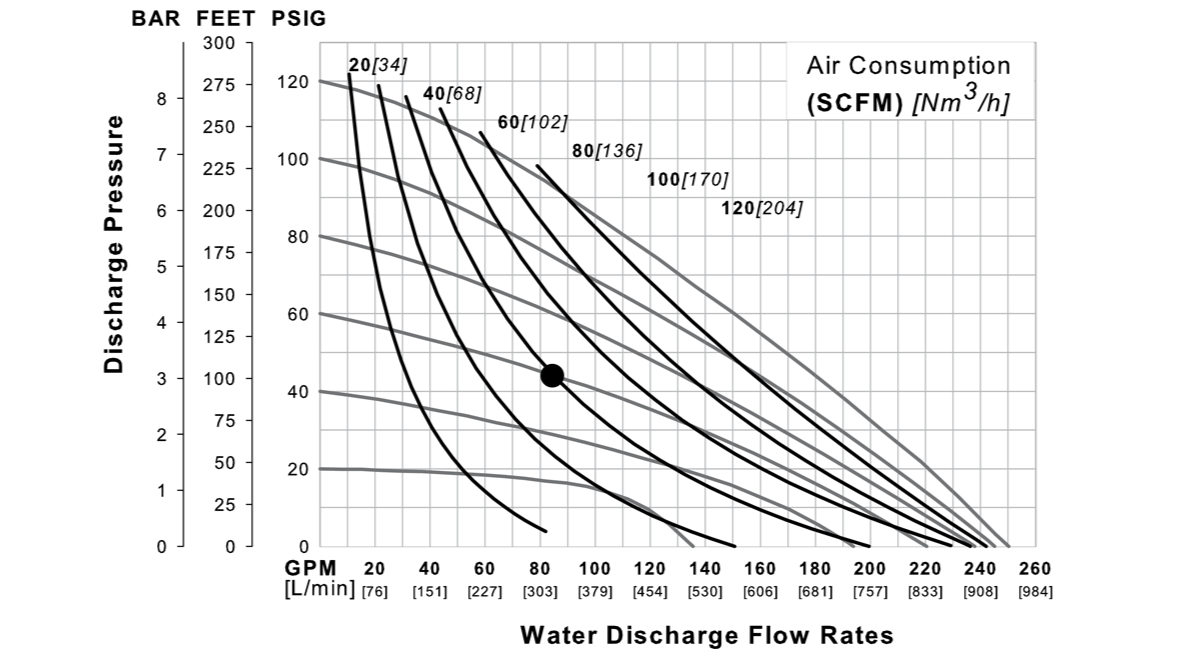

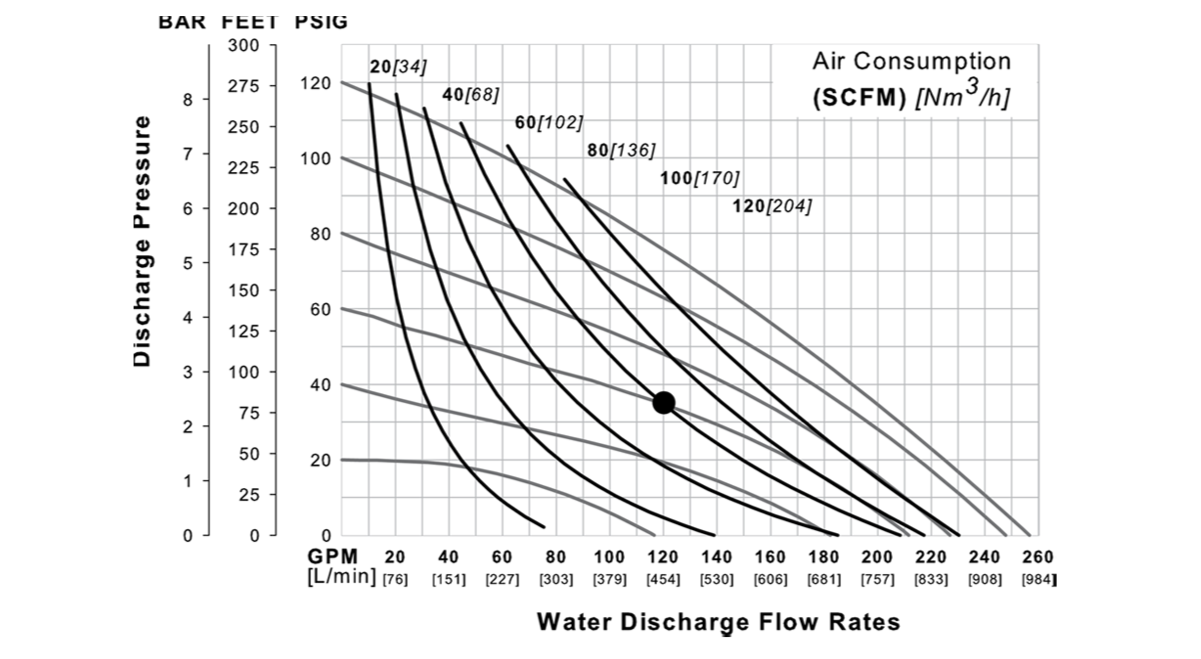

Flow Curve – Rubber-Fitted

Flo-PS1510-76mm3in-Pro-FloSHIFTBrahma-BMP

Note: Additional performance curves can be found in the PS1510 Metal Manual.

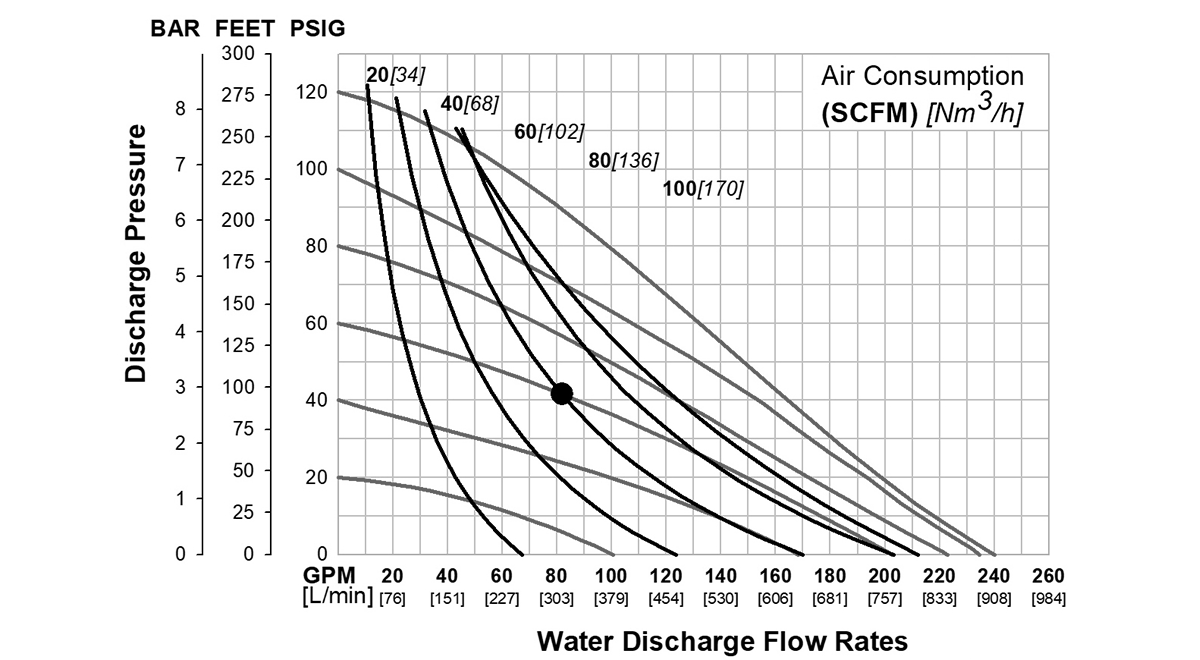

Flow Curve – Chem-Fuse™ IPD WIL-FLEX® Fitted

Flo-PS1510-76mm3in-Pro-FloSHIFTBrahma-BMP

Note: Additional performance curves can be found in the PS1510 Metal Manual.

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 76 mm (3")
LIQUID DISCHARGE
  • 76 mm (3")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX FLOW RATE
  • 882 lpm (233 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 76 mm (3")
MAX SUCTION LIFT CAPABILITY
  • 7.3 m (23.9') Dry, 9.0 m (29.5') Wet
DISPLACEMENT PER STROKE *
  • 4.7 L (1.24 gal)
  • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Aluminum 81 kg (179 lb)
Ductile Iron 159 kg (350 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum
Air Valve Aluminum, Anodized Aluminum
Air Chamber Aluminum

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
Neoprene -18°C to 93°C (0°F to 200°F)
Wil-Flex® -50°C to 130°C ( -58°F to 266°F)
