HS430-SS

38 mm (1-1/2") High-Pressure Flanged Bolted Metal Pump HS430S

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 38 mm (1-1/2")
LIQUID DISCHARGE
  • 38 mm (1-1/2")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
  • EZ-Install TPE (Aluminum) - 2.0 m (6.8') Dry, 9.0 m (29.5') Wet
  • EZ-Install TPE (Stainless Steel) – 2.0 m (6.8') Dry, 9.0 m (29.5') Wet
  • Full-Stroke PTFE – 6.1 m (19.9') Dry, 8.3 m (27.2') Wet
MAX FLOW RATE
  • EZ-Install TPE (Aluminum) – 280 lpm (74 gpm)
  • EZ-Install TPE (Stainless Steel) – 264 lpm (70 gpm)
  • Full-Stroke PTFE – 597 lpm (158 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • TPE (Aluminum) – 6.4 mm (1/4")
  • TPE (Stainless Steel) – 6.4 mm (1/4")
DISPLACEMENT PER STROKE *
  • EZ-Install TPE – 2.7 L (0.72 gal)
  • Full-Stroke PTFE – 2.6 L (0.69 gal)
  • * 1 cycle = 2 strokes
  • icon_cert-CE
  • icon_cert-Ex

Features and Benefits

Wilden® High-Pressure Series Air-Operated Double-Diaphragm (AODD) Metal Pumps are equipped with a specialty air distribution system (ADS) that utilizes a double-acting power piston and Duplex technology to intensify fluid discharge pressure. Wilden high-pressure pumps reliably deliver the pressure performance of up to 20.7 bar (300 psi), making them perfect for a wide variety of high-pressure duties, including filtration, chemical sludge transfer and other viscous, solid-laden slurries.
  • Simplex and Duplex technology available (depending on size)
  • Industry's only 3" high-pressure pump
  • Builds up to 300 psi discharge pressure
  • Built-in internal pressure amplifier with limited external piping for more robust design

Performance and Specifications

Dimensions

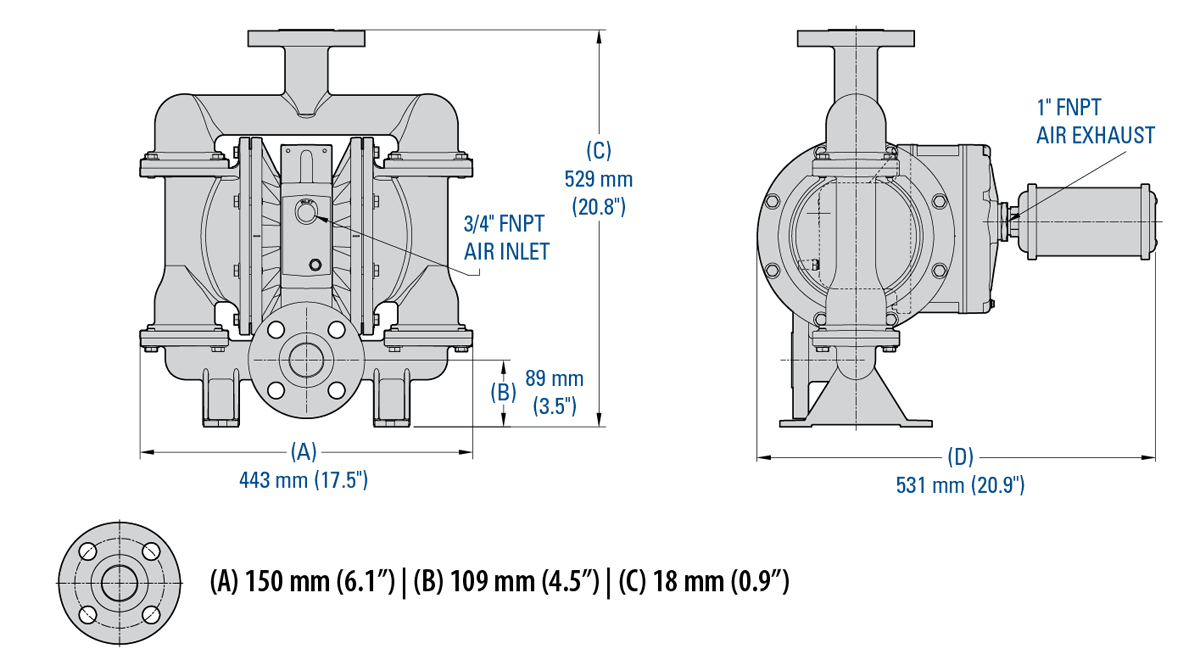

Dim-H430S-38mm1.5in-HP-FBMP

Note: Dimensions vary by material and connection. For additional information, please refer to the HS430S Metal Manual.

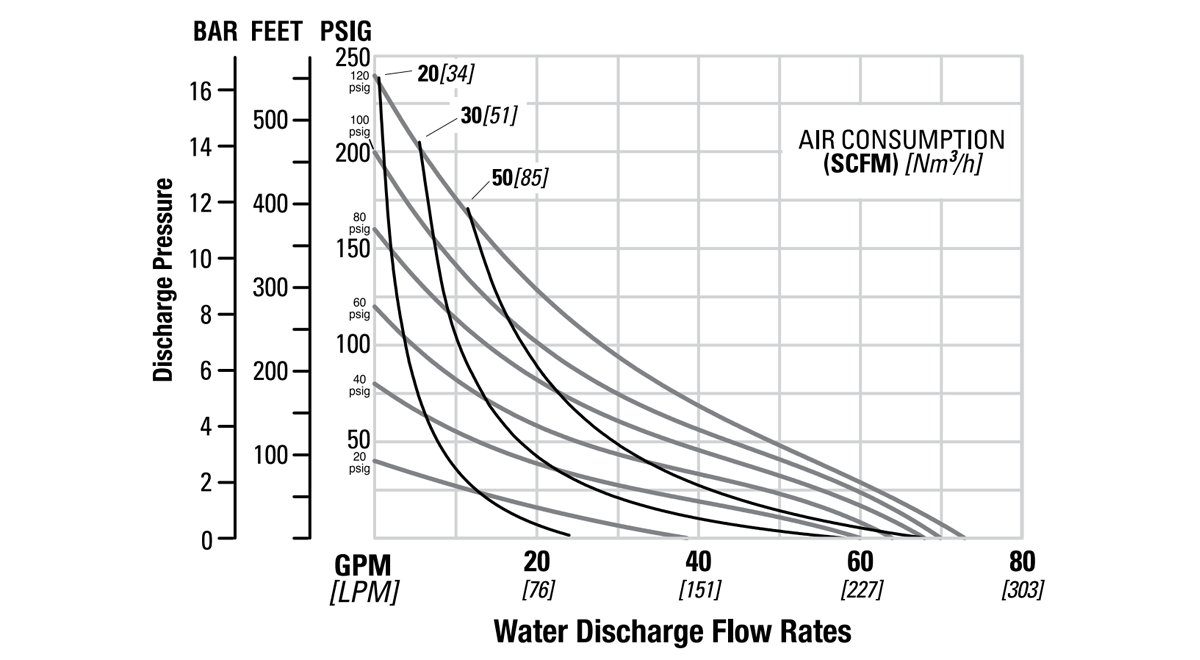

Flow Curve – EZ-Install TPE-Fitted

Flo-H430S-38mm1.5in-HP-FBMP

Note: Additional performance curves can be found in the HS430S Metal Manual.

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 38 mm (1-1/2")
LIQUID DISCHARGE
  • 38 mm (1-1/2")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX FLOW RATE
  • EZ-Install TPE (Aluminum) – 280 lpm (74 gpm)
  • EZ-Install TPE (Stainless Steel) – 264 lpm (70 gpm)
  • Full-Stroke PTFE – 597 lpm (158 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • TPE (Aluminum) – 6.4 mm (1/4")
  • TPE (Stainless Steel) – 6.4 mm (1/4")
MAX SUCTION LIFT CAPABILITY
  • EZ-Install TPE (Aluminum) - 2.0 m (6.8') Dry, 9.0 m (29.5') Wet
  • EZ-Install TPE (Stainless Steel) – 2.0 m (6.8') Dry, 9.0 m (29.5') Wet
  • Full-Stroke PTFE – 6.1 m (19.9') Dry, 8.3 m (27.2') Wet
DISPLACEMENT PER STROKE *
  • EZ-Install TPE – 2.7 L (0.72 gal)
  • Full-Stroke PTFE – 2.6 L (0.69 gal)
  • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Aluminum 29 kg (64 lb)
Stainless Steel 55 kg (121 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum, Stainless Steel
Air Valve Aluminum, Stainless Steel
Air Chamber Aluminum, Stainless Steel

Elastomer Options

Material Temperature Limits
Wil-Flex™ -40°C to 107.2°C (-40°F to 225°F)
