Wilden® Pro-Flo® SHIFT Metal vs. Yamada® NDP Series Metal

You be the judge! There are many AODD pumps out there. So before you buy, review the following head-to-head comparison designed to help you find the best pump suited for your application. Wilden® Pro-Flo® SHIFT (PS) bolted pumps outperform Yamada NDP Series pumps across all categories.


Learn More
PS-FIT-Family-Shot-medal-1
48% Reduction in Air Consumption Compared to Yamada
17 GPM More than Yamada
1-7k-savings-vs-yamada

Don't Believe Us? See the Data!

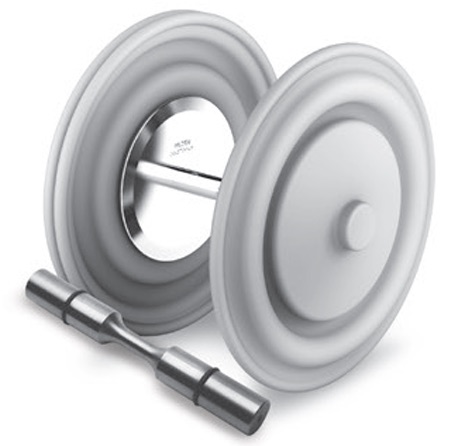

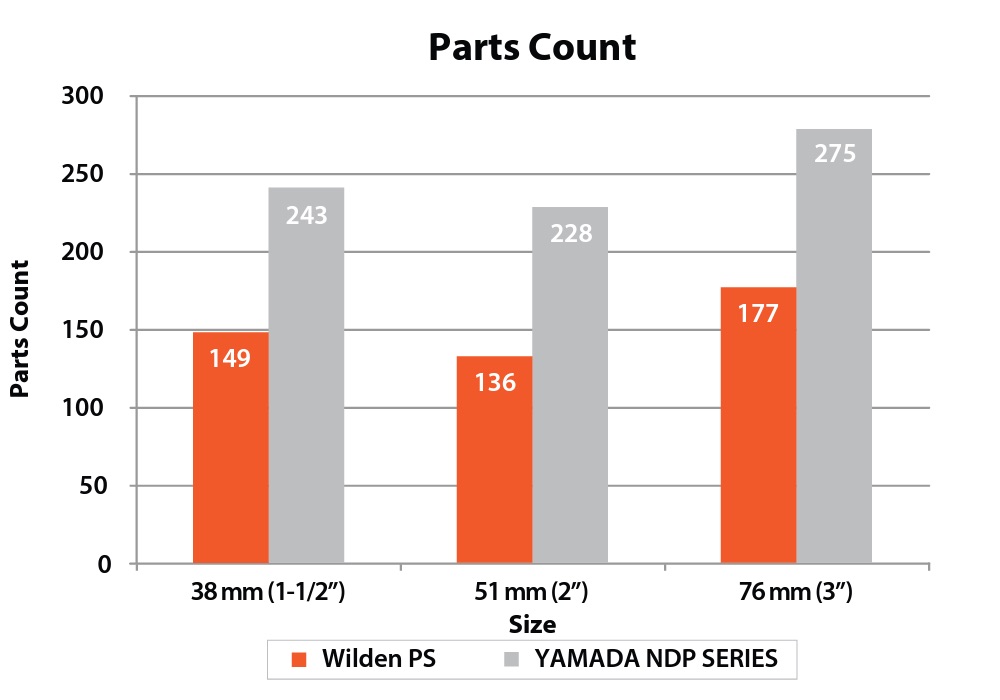

Parts Count

Parts Count Thumbnail

Parts Count

Benefits: Wilden PS pumps have fewer parts than Yamada NDP Series pumps, which means that there is a decreased chance of part failure, decreased downtime and increased savings on parts.

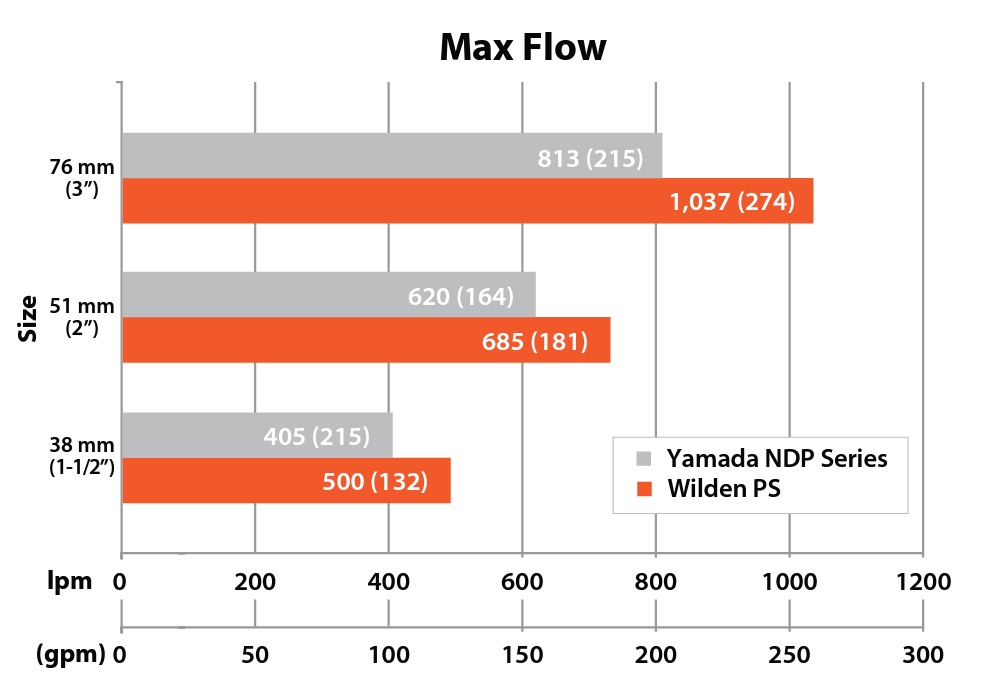

Max Flow

Max Flow Thumbnail

Max Flow

Benefits: Wilden PS pumps have a higher flow rate than Yamada NDP Series pumps! PS pumps can pump more product, increasing plant productivity!

Wilden PS YAMADA NDP SERIES % Less Air Consumed

Efficiency
(Nm³/h/scfm)

Efficiency (Nm³/h/scfm)		 Data Points Size: 38 mm (1-1/2") Size: 38 mm (1-1/2")
265 lpm @ 2.75 bar
(70 gpm @ 40 psig)		 77/48 136/85 44%
114 lpm @ 5.52 bar
(30 gpm @ 80 psig)		 48/30 98/61 51%
Data Points Size: 51 mm (2") Size: 51 mm (2")
530 lpm @ 0.69 bar
(140 gpm @ 10 psig)		 109/68 209/130 48%
265 lpm @ 2.76 bar
(70 gpm @ 40 psig)		 64/40 88/55 27%
Data Points Size: 76 mm (3") Size: 76 mm (3")
530 lpm @ 4.14 bar
(140 gpm @ 60 psig)		 196/122 222/138 12%
227 lpm @ 5.52 bar
(60 gpm @ 80 psig)		 88/55 143/89 38%
Benefits:

Wilden PS pumps require less air to power the pump – increasing energy savings and plant productivity!
NOTE: Air supply pressure varies between pumps to meet gpm requirements.

Wilden PS YAMADA NDP SERIES Wilden Annual Savings

Annual Operating Cost* (USD)

Annual Operating Cost (USD) Thumbnail		 Data Points Size: 38 mm (1-1/2") Size: 38 mm (1-1/2")
265 lpm @ 2.75 bar
(70 gpm @ 40 psig)		 $1,410 $2,496 $1,086
114 lpm @ 5.52 bar
(30 gpm @ 80 psig)		 $1,010 $2,054 $1,044
Data Points Size: 51 mm (2") Size: 51 mm (2")
530 lpm @ 0.69 bar
(140 gpm @ 10 psig)		 $1,965 $3,757 $1,792
265 lpm @ 2.75 bar
(70 gpm @ 40 psig)		 $1,047 $1,440 $393
Data Points Size: 76 mm (3") Size: 76 mm (3")
530 lpm @ 4.14 bar
(140 gpm @ 60 psig)		 $4,108 $4,647 $539
227 lpm @ 5.52 bar
(60 gpm @ 80 psig)		 $1,830 $2,961 $1,131

*Assumptions: Annual Operating Cost (USD) is calculated assuming that the pumps are operating at 8 hours a day, 5 days a week, totaling to 2,080 hours of operation per year at 10 cents per kilowatt hour. Air supply pressure, per published performance curves, averaged between Wilden and Yamada for cost calculation.

NOTE: All information gathered and represented is published Yamada performance data found in Yamada NDP Series Manuals.

Yamada® Pumps is a registered trademark of the Yamada Corporation.
