Quattroflow 5k Max. Flow Rate 6,000 lph

QF5k

Increased max. flow rate of 6,000 lph with most drives
Clean-In-Place/Steaming-In-Place (CIP/SIP) and autoclavability
Self-draining design to minimize non-recoverable product
Enhanced venting to reduce the minimum flow rate required to remove entrapped air during priming
Patented valve plate design to achieve self-draining and venting
Up to 120:1 turndown ratio
Improved linear flow performance
High flow stability across entire flow range

QF5K-MU OEM

OEM design for easy skid integration
Extended turndown ratio
Global power supply and motor certification
Multiple accessories (VFD, Cable, Gasket) available
Flange adapters for additional motor types available

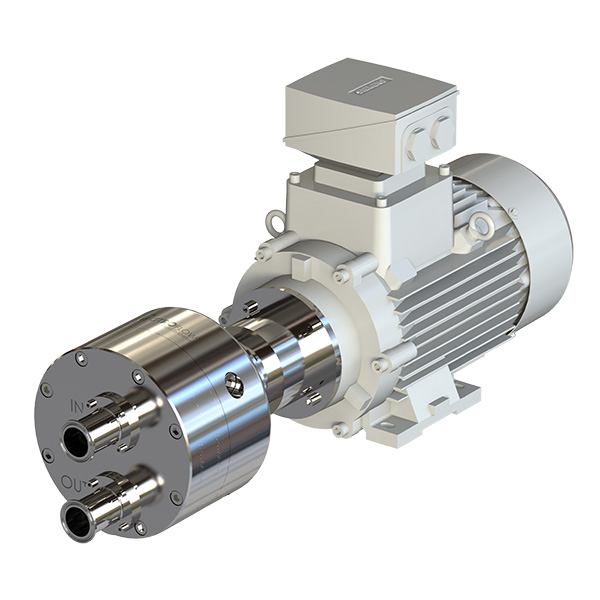

QF5kMU-ATEX

Ex-Markings
- Complete pump unit: II 2G IIB T4 X
  - Pump head: II 2G Ex h IIC T4 Gb X
  - Motor: II 2G Ex db eb IIB T4 Gb
  - Coupling: II 2G Ex h IIC T4 Gb
Available Configurations:
- Complete pump units with AC motor without housing and base plate
- Pump-head only for combination with own ATEX rated motor and coupling

Technical Data
Performance
Downloads

Technical Data

Description			Unit	QF5k-MU	QF5kHT-MU	QF5kQCON-MU	QF5kCD-MU	QF5K-MU OEM	QF5kMU-ATEX
Flow Rate	Eccentric Shaft 5°	Min.	lph	200	50	50	50	50	200
Flow Rate	Eccentric Shaft 5°	Max.	lph	6,000	6,000	6,000	5,000	5,000	6,000
Pumping Pressure	Media Temperature <40°C	Max.	bar	6	6	6	6	6	6
	Media Temperature <40°C	Continuous	bar	4	4	4	4	4	4
	Media Temperature >40°C	Max.	bar	4	4	4	4	4	4
	Media Temperature >40°C	Continuous	bar	4	4	4	4	4	4
	Neg. Inlet Pressure	Continuous	bar	-0.2	-0.2	-0.2	-0.2	-0.2	-0.2
Temperature	Media	Min.	°C (°F)	10 (50)	10 (50)	10 (50)	10 (50)	10 (50)	10 (50)
Temperature	Media	Max.	°C (°F)	80 (176)	80 (176)	80 (176)	80 (176)	80 (176)	80 (176)
Ambient Temperature	Environment	Min.	°C (°F)	10 (50)	10 (50)	10 (50)	10 (50)	10 (50)	10 (50)
Ambient Temperature	Environment	Max.	°C (°F)	30 (86)	30 (86)	30 (86)	30 (86)	30 (86)	25/40 (77/104)
Pump Speed		Min.	rpm	30	13	13	13	13	72
Pump Speed		Max.	rpm	1,200	1,200	1,200	1,050	1,050	1200/900
Displacement Volume	Eccentric Shaft 5°		ml/rev	91	91	91	91	91	91
Connection Specification	Size		Inch	1.5" (TriClamp)	1.5" (TriClamp)	1.5" (TriClamp)	1.5" (TriClamp)	1.5" (TriClamp)	1.5" (TriClamp)
Dimensions	Pump Unit	Length	mm	872	851	950	261	694	840
	Pump Unit	Width	mm	257	281	281	320	225	250
	Pump Unit	Height	mm	333	385	405	410	233	391
Pump Weight with Motor and Housing	Pump Unit		kg	95	110	115	70	66.4	123
IP-Protection Class (Total Pump)	Pump Unit		---	55	54	55	54	---	65
Filling Volume	Without Connection		ml	788	788	788	788	788	788
Surface	Product Wetted		cm²	1,586	1,586	1,586	1,586	---	1,586
Media	Temperature	Max.	°C (°F)	90 (194)	90 (194)	90 (194)	90 (194)	90 (194)	80 (176)
Sterilization	Autoclave	Max.	°C (°F)	130 (266)	130 (266)	130 (266)	130 (266)	130 (266)	130 (266)
Sterilization	Gamma Irradiation	Max.	kGy	n/a	n/a	n/a	n/a	---	---
Material	Product Wetted	Pump Housing	---	SS316L	SS316L	SS316L	SS316L	SS316L	SS316L
	Product Wetted	Valve Plate	---	SS316L	SS316L	SS316L	SS316L	SS316L	SS316L
	Product Wetted	Diaphragm	---	TPE	TPE	TPE	TPE	TPE	TPE
	Product Wetted	Valves	---	EPDM	EPDM	EPDM	EPDM	EPDM	EPDM
	Product Wetted	O-rings	---	EPDM	EPDM	EPDM	EPDM	EPDM	EPDM
Certificates/Proofs (Optional)	ATEX (Motor)	---	---	---	---	---	---	---	II 2G Ex db eb IIB T4 Gb
	ATEX (Pump)	---	---	---	---	---	---	---	II 2G Ex h IIC T4 Gb X
	ATEX (Coupling)	---	---	---	---	---	---	---	II 2G Ex h IIC T4 Gb
