qf20k

Quattroflow 20k Max. Flow Rate 16000 lph

  • Stainless steel pump chamber
  • Separate control box for manual operation available
  • ATEX version available

Technical Data

QF20k Standard Motor
Flow Rate Maximum Eccentric Shaft 7° 16000 lph (267 lpm)
Flow Rate Minimum Eccentric Shaft 7° 1000 lph (16.7 lpm)
Pressure Temperature of Fluid < 40°C (104°F) 6 bar (87 psi)
Temperature of Fluid > 40°C (104°F) 4 bar (58 psi)
Maximum Temperature Fluid 80°C (176°F)
CIP 90°C (194°F)
SIP 130°C (266°F)
Autoclave 130°C (266°F)
Suction Lift Dry at 330 rpm Eccentric Shaft 7° 4 – 4.5 m (13.1-14.7 ft)
Volume Specifications Approximated Volume per
Revolution at Free Output
470 ml
Filling Volume Without Connectors 2950 ml
Connection Specification (Standard) Connectors 2" TC
Position of Connectors Front
Product Wetted Materials (Standard) Pump Housing SS316L
Valve Plate SS316L
Diaphragms TPE
Valves EPDM/SS316L
O-rings EPDM
Certificates/Proofs (Optional) Elastomere (product wetted) USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe
Stainless Steel Parts (product wetted) 3.1; Surface Roughness; Ferrite Content
Motor (Standard) Rated speed 1460/474 min-1 (50 Hz)
Voltage 230/400 V
Power 4 kW
Pump Dimension with Motor and Housing Length 1152.5 mm (45.37")
Width 400 mm (15.75")
Height 416 mm (16.38")
Pump Weight with Motor and Housing 217 kg (478 lb)

Other connection specifications, materials and motors available on request.

Performance

Click on the images to enlarge.

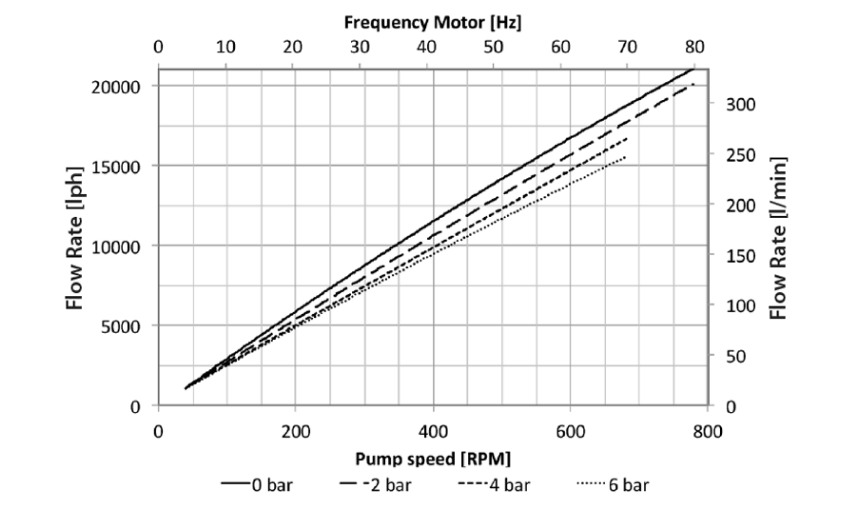

qf20k-chart1

Liter

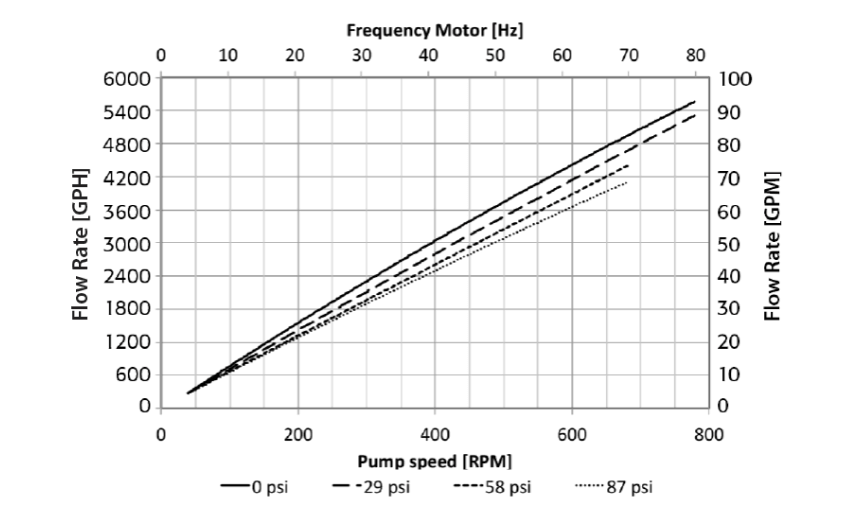

qf20k-chart2
