Quattroflow Biopharma Pump QF150S-HT QF150MU-OEM

Quattroflow 150S Max. Flow Rate 180 lph

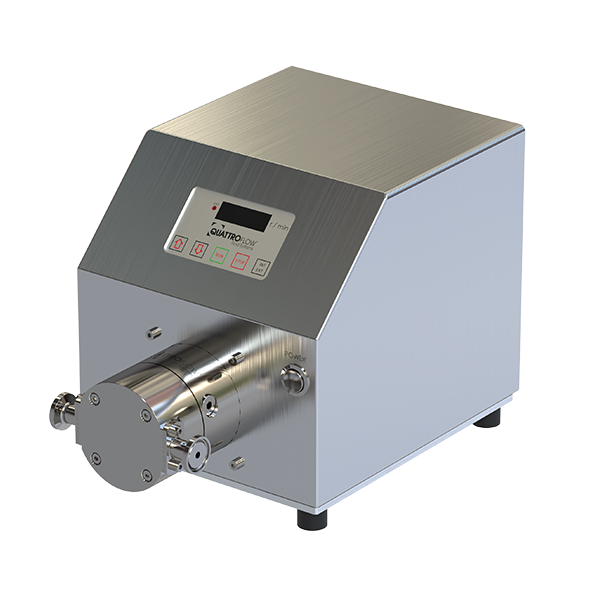

QF150S-HT

  • Stainless steel pump chamber
  • New version with brushless Nanotec motor
  • Integrated controller
  • Digital key pad for manual operation
  • Analog input, 4-20mA
  • Small and portable format
  • Ideal for R&D and process development

QF150-MU OEM

  • OEM design for easy skid integration
  • Extended turndown ratio
  • Global power supply and motor certification
  • Multiple accessories (VFD, Cable, Gasket) available
  • Flange adapters for additional motor types available

Technical Data

QF 150S HT* QF150MU OEM
Flow Rate Maximum Eccentric Shaft 5° 180 lph (3 lpm) 180 lph (3 lpm)
Flow Rate Minimum Eccentric Shaft 5° 1 lph (0.017 lpm) 1 lph (0.017 lpm)
Pressure Temperature of Fluid < 40°C (104°F) 6 bar (87 psi) 6 bar (87 psi)
Temperature of Fluid > 40°C (104°F) 4 bar (58 psi) 4 bar (58 psi)
Maximum Temperature Fluid 80°C (176°F) 80°C (176°F)
CIP 90°C (194°F) 90°C (194°F)
SIP 130°C (266°F) 130°C (266°F)
Autoclave 130°C (266°F) 130°C (266°F)
Suction Lift Dry at 3000 rpm Eccentric Shaft 5° 2 - 3 m (6.6 - 9.8 ft) 2 - 3 m (6.6 – 9.8 ft)
Volume Specifications Approximated Volume per Revolution at Free Output 1.2 ml 1.2 ml
Filling Volume Without Connectors 15 ml 15 ml
Connection Specification (Standard) Connectors 1/4" TC 1/4" TC
Position of Connectors Inline Inline
Number of Flow Directions 4 4
Product Wetted Materials (Standard) Pump Housing SS316L SS316L
Valve Plate SS316L SS316L
Diaphragms TPE TPE
Valves EPDM EPDM
O-rings EPDM EPDM
Certificates/Proofs (Optional) Elastomere (product wetted) USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe
Stainless Steel Parts (product wetted) 3.1; Surface Roughness; Ferrite Content 3.1; Surface Roughness; Ferrite Content
Motor (Standard) Rated speed 3500 min-1 3000 min-1
Voltage 100-264 VAC 3 x 230V / 3 x 400V
Power 250 W
Pump Dimension with Motor and Housing Length* 328 mm (12.91") 270 mm (10.63")
Width* 200 mm (7.87") 114 mm (4.49")
Height* 217 mm (8.54") 130 mm (5.12")
Pump Weight with Motor and Housing 9,4 kg (20.7 lb) 6.4 kg (14.1 lb)

Other connection specifications, materials and motors available on request.
*Dimensions of the new QF150S-HT pump. Old QF150S-HT pumps will be sold according to availability with smaller dimensions.
