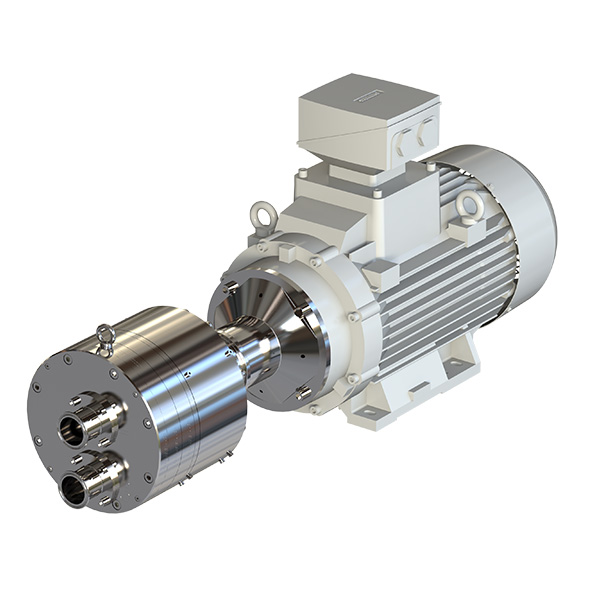

QF10k Standard Motor |
QF10kMU-ATEX |

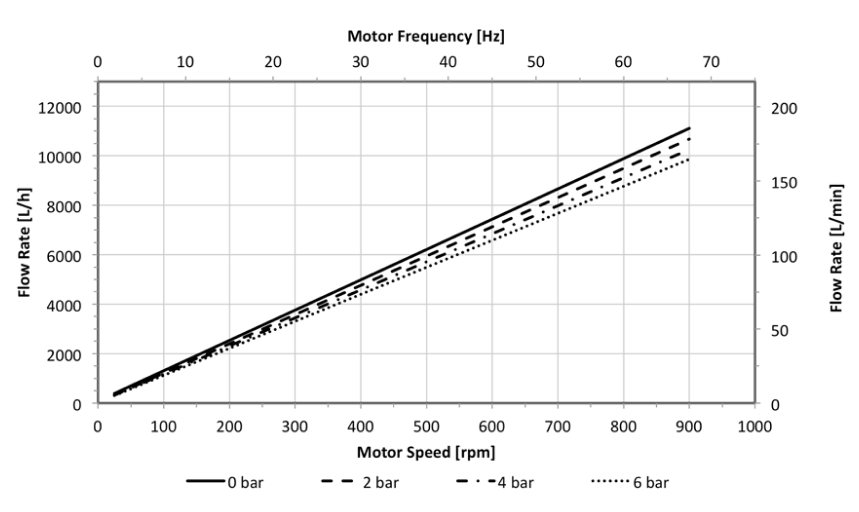

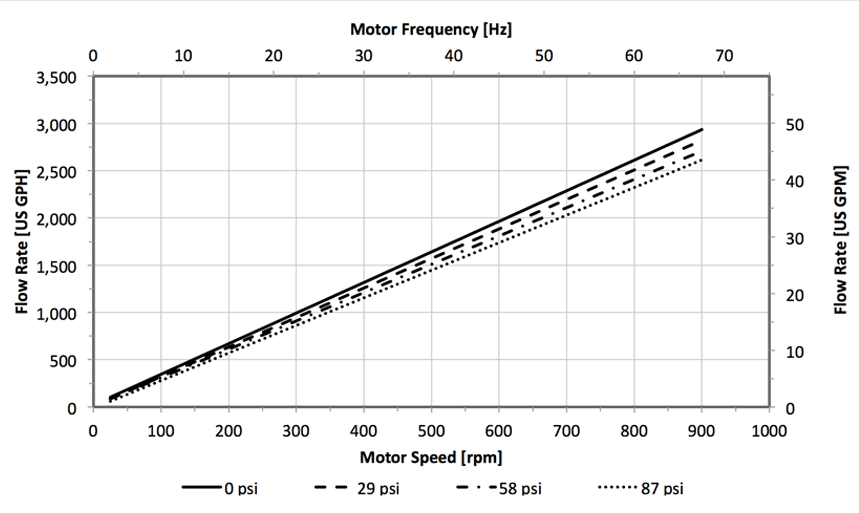

| Flow Rate Maximum |
Eccentric Shaft 6° |
10000 lph (167 lpm) |
10000 lph (167 lpm) |
| Flow Rate Minimum |
Eccentric Shaft 6° |
500 lph (8.3 lpm) |
10000 lph (167 lpm) |
| Pressure |
Temperature of Fluid < 40°C (104°F) |
6 bar (87 psi) |
4 bar (58 psi) |
| Temperature of Fluid > 40°C (104°F) |
4 bar (58 psi) |
4 bar (58 psi) |
| Maximum Temperature |
Fluid |
80°C (176°F) |
80°C (176°F) |
| CIP |
90°C (194°F) |
80°C (176°F) |
| SIP |
130°C (266°F) |
130°C (266°F) |
| Autoclave |
130°C (266°F) |
130°C (266°F) |
| Ambient Temperature |
Minimum |
10°C (50°F) |
10°C (50°F) |
| Maximum |
30°C (86°F) |
25°C (77°F) |
| Suction Lift Dry at 1,800 rpm |
Eccentric Shaft 6° |
4 – 4.5 m (13.1-14.7 ft) |
4m (13.1 ft) |
| Volume Specifications |
Approximated Volume per
Revolution at Free Output |
195 ml |
195 ml |
| Filling Volume Without Connectors |
1,300 ml |
1,300 ml |
| Connection Specification (Standard) |
Connectors |
2" TC |
2" TC |
| Position of Connectors |
Front |
Front |
| Product Wetted Materials (Standard) |
Pump Housing |
SS316L |
SS316L |
| Valve Plate |
SS316L |
SS316L |
| Diaphragms |
TPE |
TPE |
| Valves |
EPDM |
EPDM |
| O-rings |
EPDM |
EPDM |
| Certificates/Proofs (Optional) |
Elastomere (product wetted) |
USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe |
USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe |
| Stainless Steel Parts (product wetted) |
3.1; Surface Roughness; Ferrite Content |
3.1; Surface Roughness; Ferrite Content |
| ATEX (Motor/Drive) |
— |
II 2G Ex db eb IIB T4 Gb |
| ATEX (Coupling) |
— |
II 2G Ex h IIC T4 Gb |
| ATEX (Pump) |
— |
II 2G Ex h IIC T4 Gb X |
| Motor (Standard) |
Rated speed |
2,894 min-1 (50 Hz) |
730 min-1 (50 Hz) |
| Voltage |
230/400 V |
400V |
| Power |
3.0 kW |
4.0 kW |
| Gear |
4.32:1 |
— |
| Pump Dimension with Motor and Housing |
Length |
1155 mm (45.48") |
1189 mm (46.81") |
| Width |
437 mm (17.20") |
314 mm (12.36") |
| Height |
430 mm (16.38") |
511 mm (20.12") |
| Pump Weight with Motor and Housing |
|
185 kg (408 lb) |
229,229kg (505.36 lb) |
Other connection specifications, materials and motors available on request.
