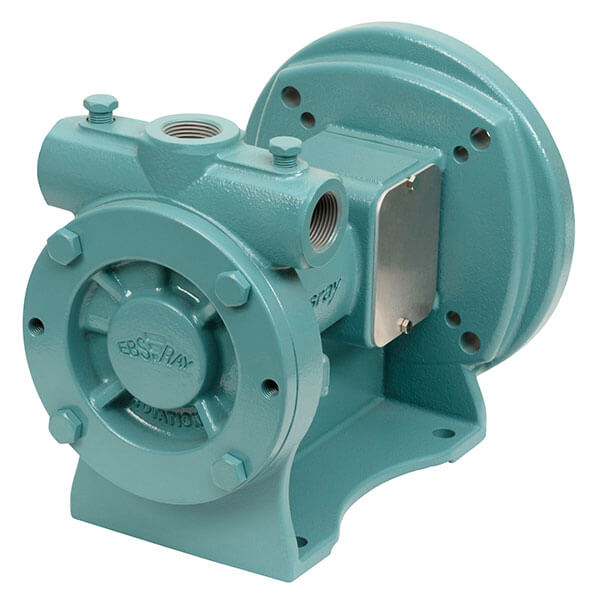

Ebsray R20 and R25 Regenerative Turbine Pump LR-Ebsray-RC25-Regenerative-Turbine-Pump_2 LR-Ebsray-RC25-Regenerative-Turbine-Pump_3 LR-Ebsray-RC25-Regenerative-Turbine-Pump_4

RC25 Regenerative Turbine Pump

The Ebsray RC Series Regenerative Turbine Pumps are designed and precision-built for high-pressure transfer of LPG, autogas, propane, and butane.

Features and Benefits

  • Low maintenance - single stage impeller
  • Close coupled to standard IEC or NEMA frame flanged two pole motors
  • Unique cartridge design mechanical seal
  • Integral API 682-ISO 21049 compliant throttle bush
  • Extremely quiet, vibration free operation
  • Very simple to service


  • icon_cert-CE
  • icon_cert-iso-9001

Technical Data

Part Material
Body, Cover Ductile Iron to ASTM A395
Bronze as Standard
High-Tensile Alloy Steel
O-Rings FKM
Coupling Guard Aluminum
Inlet 1” NPT Tapped Ports
Discharge 1” NPT Tapped Ports

Performance Data

Performance Data (50 & 60 Hz)
Max. Flows 50 Hz: 80 L/min (21 gpm)
60 Hz: 105 L/min (28 gpm)
Max. Differential Pressure 14 bar (200 psi)
Hydrostatic Test Pressure 70 bar (1,015 psi)


  • LPG Autogas dispensers, single or two hoses (RC25)
  • Industrial dispensing
  • Autogas refueling
  • Marine dispensing
  • Portable tanks
  • Cylinder filling
  • Forklift refueling
  • Direct burner or vaporizer feed
