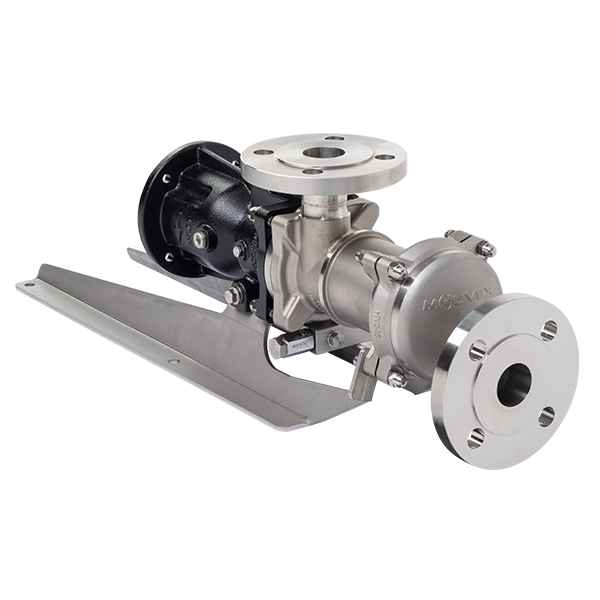

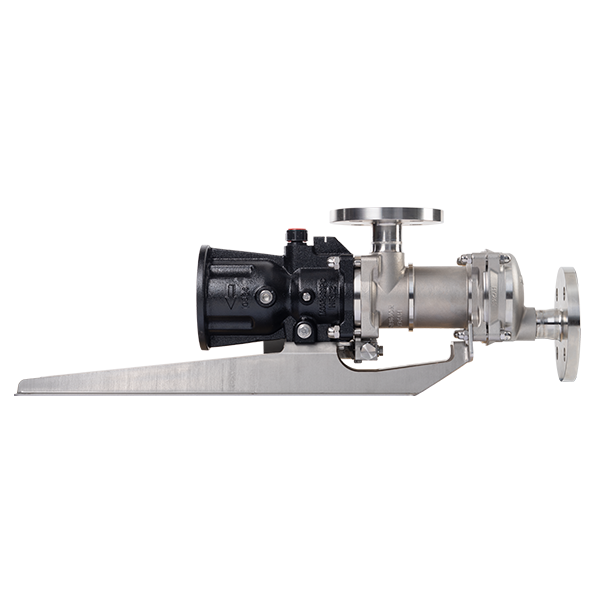

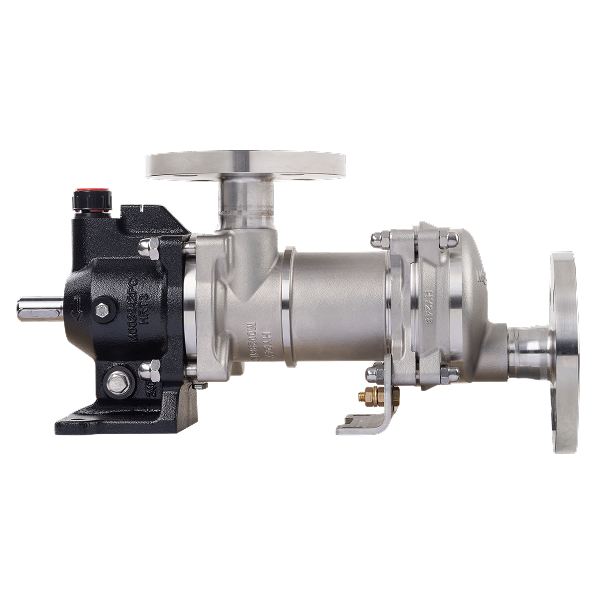

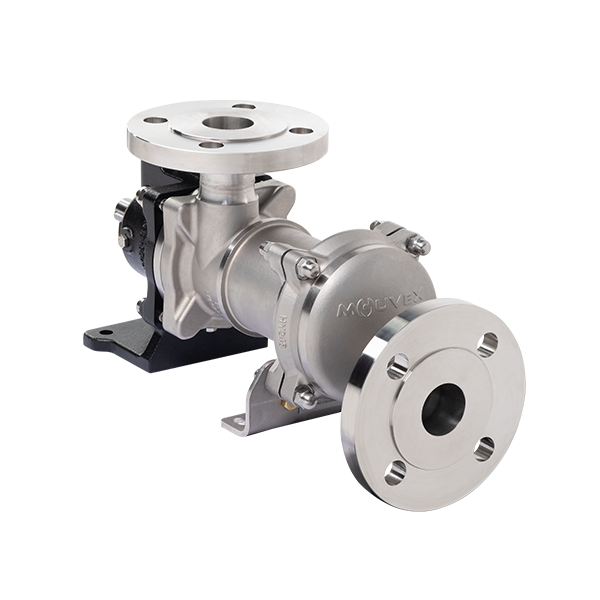

G-FLO Series Pumps for Chemical and Industrial Product Transfer

Mouvex® G-FLO Seal-Less Eccentric Disc Pumps are designed to provide premium performance and the ultimate in full containment and safety in chemical-processing and industrial applications, delivering high suction vacuum and high discharge pressure that allow it to self-prime and fully maximize product containment. G-FLO pumps are ideally suited for the safe transfer of critical high-value fluids.

The seal-less eccentric disc transfer solution for chemical & industrial applications requiring high flow rates — up to 70 m3/h (300 gpm), 10 bar (145 psi).

Mouvex G-FLO Series is now available in high-temperature versions up to 160°C (320°F), designed for demanding chemical applications such as PVC additives, starch, resins, acrylic acids and more.

Find out more on how Mouvex eccentric disc pumps can optimize efficiency in chemical and industrial applications - just download our newest Whitepaper!

Performance and Specifications

Performance

  • Provides consistent and efficient flow with a wide range of viscosities
  • Flow rate up to 70 m3/h (300 gpm), 10 bar (145 psi)
  • Eccentric disc design allows for consistent flow and improved energy savings
  • Extremely gentle, pulse-free flow to protect shear-sensitive products
  • Reduced maintenance with no mechanical seals or timing gears
  • Easy to install

Options

  • ISO PN 20 flanges / ANSI 150 flanges
  • ISO PN 16 flanges
  • Heating Jacket
G-FLO Logo
  • icon_cert-Ex
  • TA Luft

Markets & Applications

Suitable for most chemical and industrial transfer applications, in particular those that require consistent non-pulsing flow and gentle fluid handling (low shear rates).

Videos

Mouvex H-FLO & G-FLO Animation

Learn about the features and benefits of the Mouvex® H-FLO and G-FLO Series Pumps and see how they work.

Mouvex G-FLO Series Eccentric Disc Pump Success Story: Vinavil

This success story video illustrates why Vinavil chose Mouvex G-FLO Series Eccentric Disc Pumps to help optimize the company's production processes.
