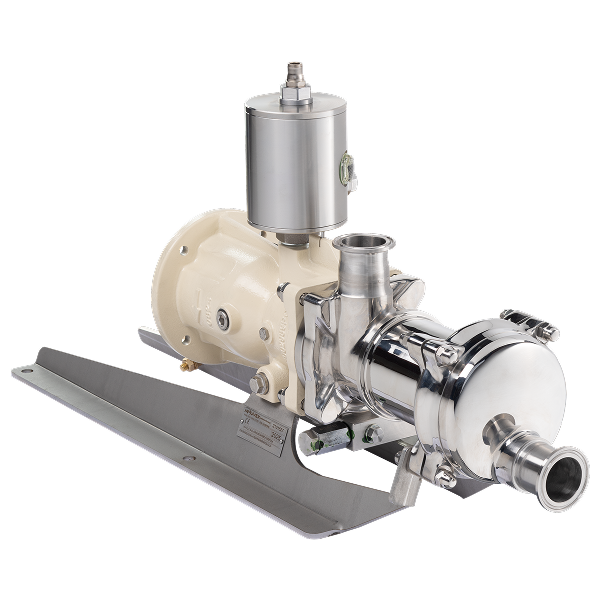

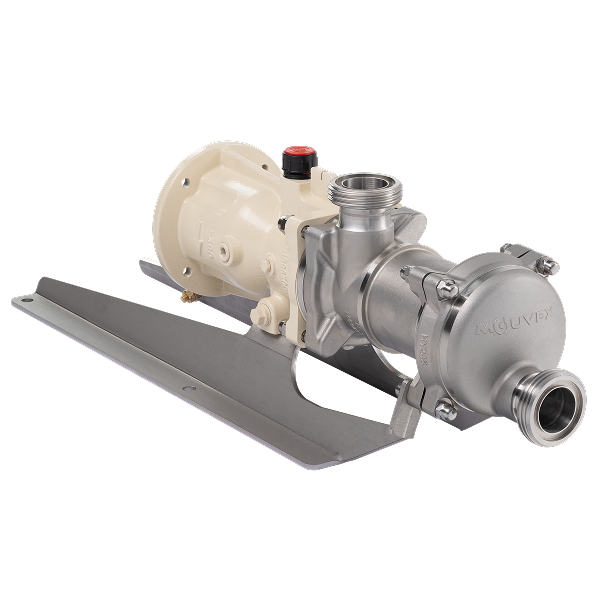

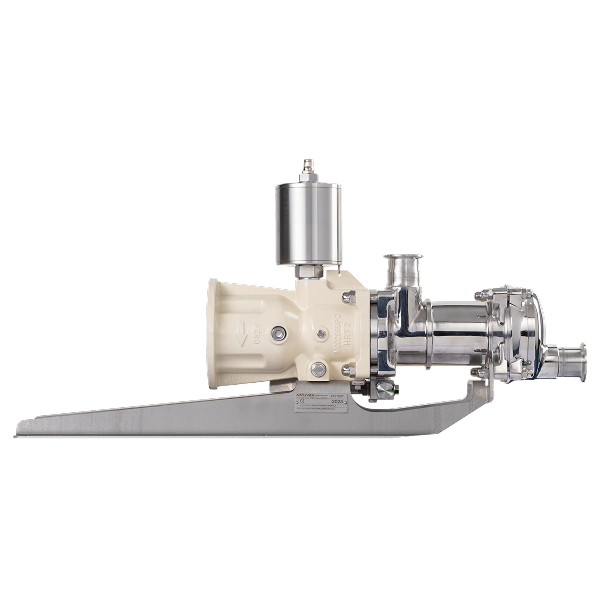

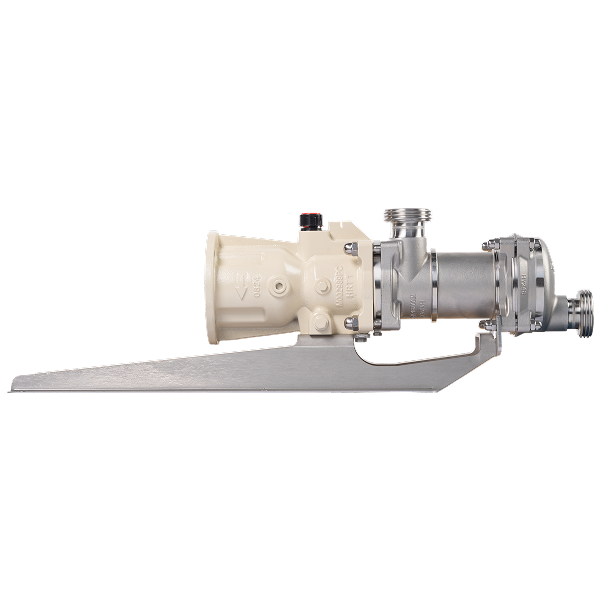

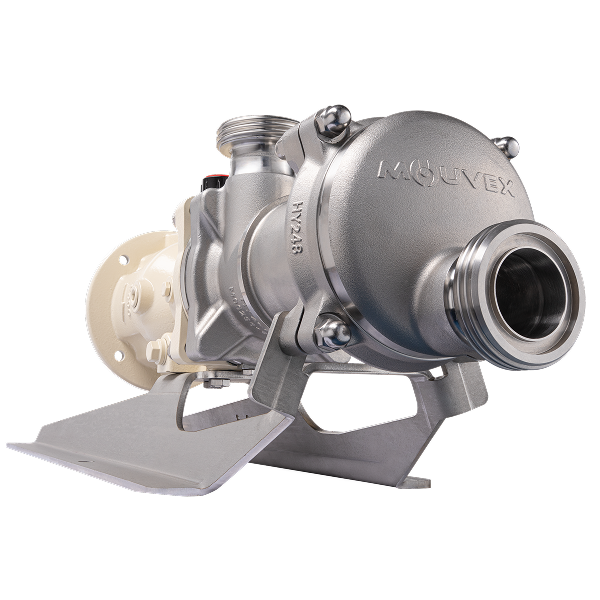

H-FLO Series Seal-less Eccentric Disc Food Grade Transfer Pumps

Mouvex® H-FLO Seal-Less Eccentric Disc Pumps have been designed for use in a wide range of pumping applications in the food, cosmetic and pharmaceutical industries, all of which require extremely hygienic operations. The H-FLO pump delivers high suction vacuum and high discharge pressure that allow it to self-prime and fully strip lines, a critical consideration when maximizing product recovery.

The seal-less eccentric disc transfer solution for hygienic applications requiring high flow rates — up to 70 m3/h (300 gpm), 10 bar (145 psi).

Performance and Specifications

Performance

  • Provides consistent and efficient flow with a wide range of viscosities
  • Flow rate up to 70 m3/h (300 gpm), 10 bar (145 psi)
  • Eccentric disc design allows for consistent flow and improved energy savings
  • Extremely gentle, pulse-free flow to protect shear-sensitive products
  • Reduced maintenance with no mechanical seals or timing gears
  • Easy to install
  • Clean in place (CIP) and sterilize in place (SIP) for the ultimate in convenience and cleanliness

Options

  • SMS
  • DIN 11851
  • DIN 11864 BF-A Aseptik fl
  • Tri-Clamp® ASME-BPE
  • Heating jacket
  • ECS  Easy-Clean-System
H-FLO Logo
  • icon_cert-CE
  • icon_cert-Ex
  • EC1935-2004_Logo
  • FDA
  • L_EHEDG

Markets & Applications

Food

flavor, sauce, chocolate, glucose and more

Beverages

yeast, concentrate, glucose, fruit juice, flavor, alcohol and more

Cosmetics and Pharmaceuticals

ointment, syrup, cream, shampoo and more

Videos

Learn about the features and benefits of the Mouvex® H-FLO and G-FLO Series Pumps and see how they work.

The Mouvex Easy Clean System makes the cleaning process easier than ever before by eliminating the need for an external CIP bypass while still allowing full CIP flow to pass through the pump for maximum efficiency.
