MP 7000

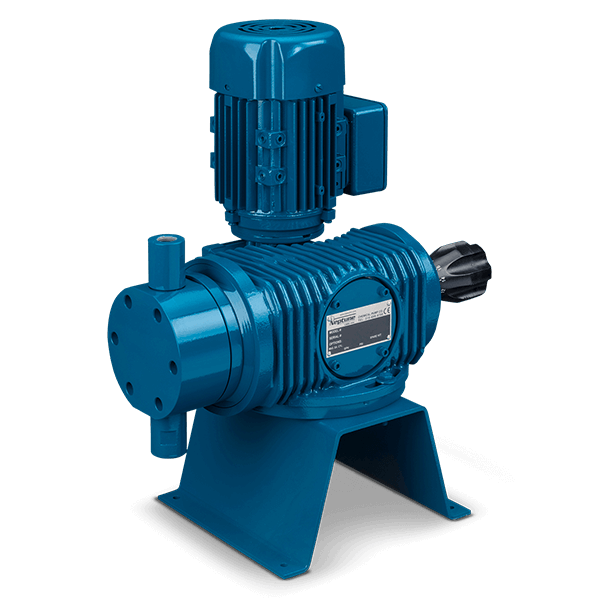

MP7000 Series

The Neptune Series MP7000 is a mechanically-actuated diaphragm metering pump engineered from the ground up to be more robust and durable than similar mechanical diaphragm pump designs. The MP7000 pump incorporates the ruggedness of a hydraulic diaphragm metering pump, eliminates the need for intermediate fluid or hydraulic oil to actuate the diaphragm and eliminates the potential for gearbox oil to contaminate the process since it has an oil free gearbox design.

The straight-through flow design of the MP7000 liquid end and the elimination of the contour plate result in improved flow characteristics, making the pump well-suited for pumping difficult chemicals such as viscous fluids, shear-sensitive fluids and fluids with suspended solids.

Liquid Head Materials of Construction
  • 316SS
  • PVC
  • PVDF
Diaphragms
  • PTFE
Capacity
  • 2.30 gph (8.80 L/h) to 27 gph (102.10 L/h)
Max Pressure
  • 235 psi (16.2 bar)
Max Temperature
  • 316SS - 200°F (93°C)
  • PVC - 125°F (52°C)
  • PVDF - 125°F (52°C)
logo_choice Select Your Pump

Features and Benefits

  • Heavy-duty, corrosion-resistant aluminum gearbox
  • Finned gearbox design dissipates heat more efficiently than other designs
  • Rugged bronze gears are quiet-running and provide long service life
  • Oversize check valves improve performance and minimize friction losses
  • Short stroke length reduces diaphragm stress and promotes longer diaphragm life
  • 10:1 turndown via micrometer-type knob with high-contrast, easy-to-read scale
  • Repeatable accuracy is ±2% at full scale (at constant hydraulic conditions)
