Mechanical Diaphragm Pumps

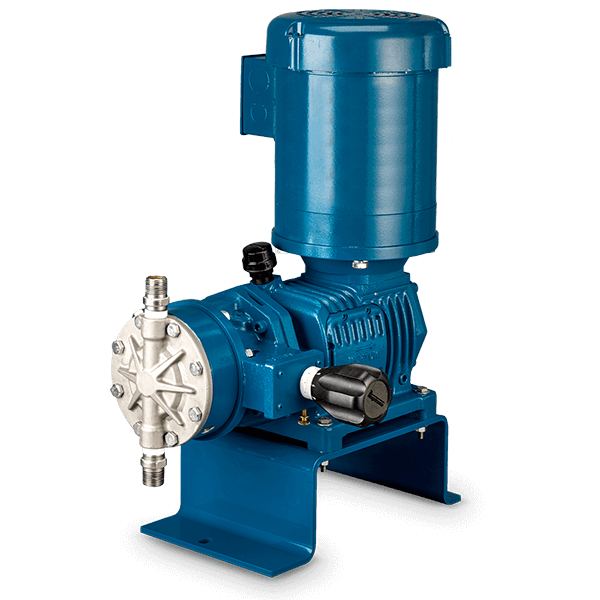

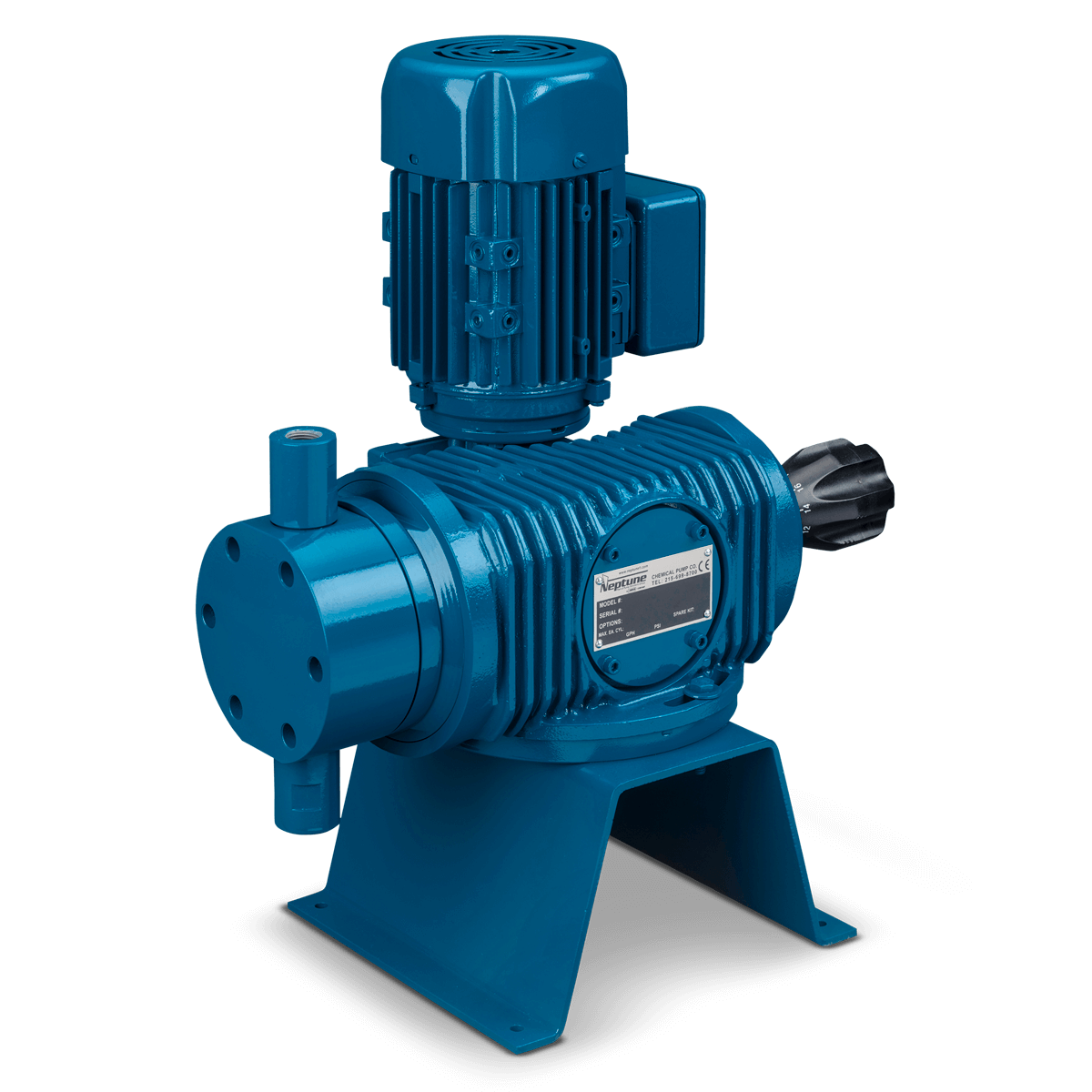

Neptune Mechanical Diaphragm Pump

• How does a Neptune mechanical chemical metering pump work?

  Mechanical metering pumps have a reciprocating rod at a set stroke length and rate, which actuates a flexible, chemically inert diaphragm to create the pumping action. Screwing in or out a hand knob regulates the capacity of the pump. Screwing in shortens the stroke length, reducing the volume. Screwing out increases capacity. The percentage of flow is indicated on the hand knob.

• What are the advantages of a mechanical chemical metering pump for dosing fluids?

  Neptune mechanical chemical metering pumps are ideal for industrial dosing applications where suction lift and chemical compatibility matter. With higher suction lift, the pump can lift from a container up to 20 ft. For drinking water applications, Neptune mechanical pumps are NSF 61 certified. They can also handle high viscosity applications (2,500 cps).

• What is the maintenance schedule for mechanical chemical metering pumps?

  Under normal conditions, metering pumps do not require significant maintenance. On a weekly basis, check oil levels, check for leaks, check the ground connection for corrosion, and clean pump surfaces and the surrounding area of dust and debris. After the first 250 hours of operation, you should change the initial oil. Every 4,000 hours or every six months, whichever comes first, you should change the oil, clean the inlet piping strainer and check the external pressure relief valve. You should also replace worn shaft oil seals and tighten all fasteners. If there is a coupling insert, check it for damage and replace it if necessary. On an annual basis, you should clean the check valves, replace O-rings, diaphragms, coupling insert and rolling element bearings. For low-profile flange styles, you should also apply anti-seize to the motor shaft and gear shaft adapter.

• What is the best Neptune chemical metering pump for industrial applications?

  Neptune offers many chemical metering pumps that can be used for industrial applications. The option to choose between stainless steel, PVC or PVDF liquid heads allows the pumps to be compatible with a wide range of chemicals and dosing applications.
