Sample Coolers

Neptune Sample Coolers are used to cool hot water or steam samples for easy handling and effective sample collection. Sample coolers are suitable for use on hot water, saturated steam, or superheated steam services.

Neptune's Sample Coolers are available in 3 models.

logo_choice Select Your Pump

Features and Benefits

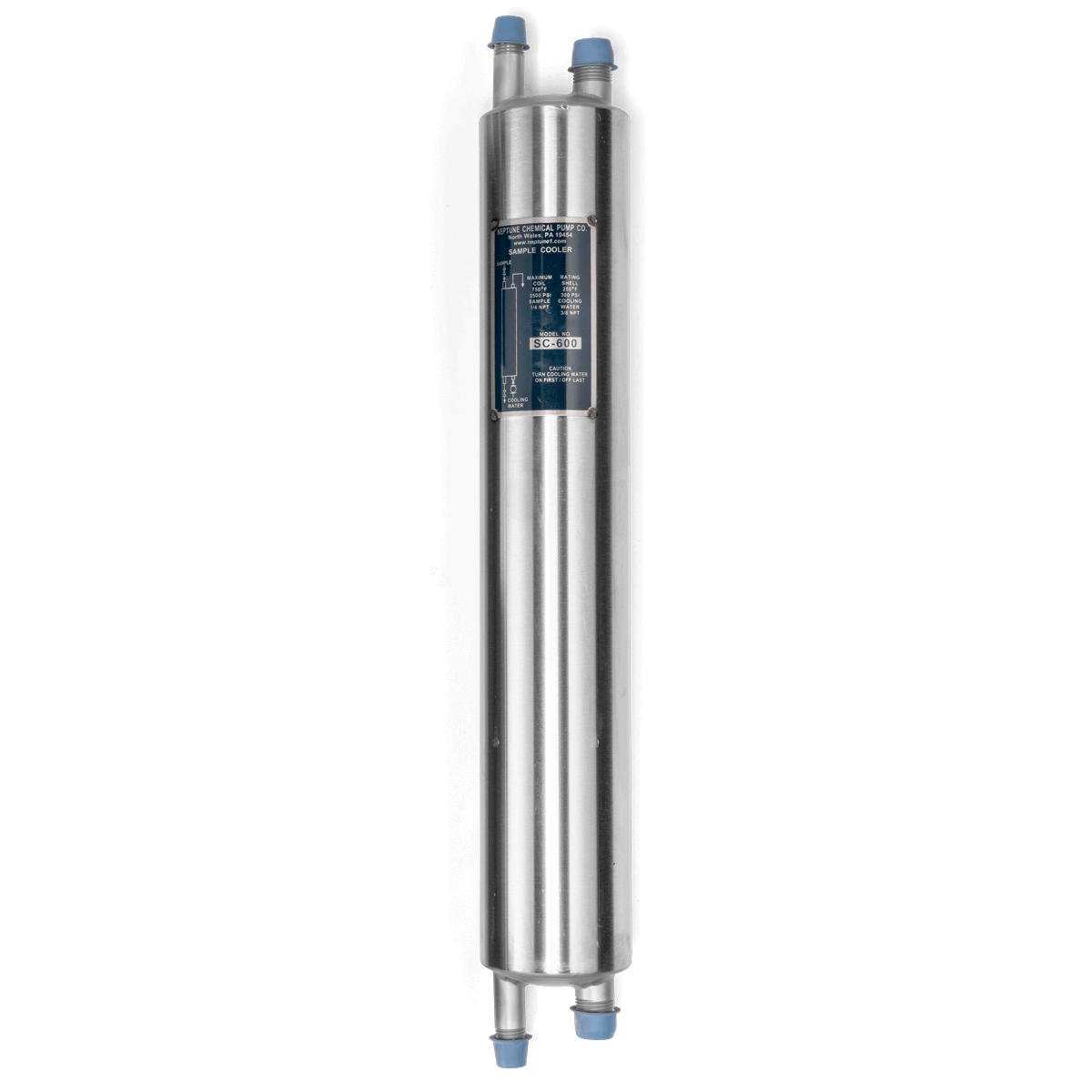

Models SC-316 & SC-600

  • Rugged all-welded construction
  • Internal baffles to insure maximum heat transfer
  • Materials of Construction
    • Model SC-316 - 316SS Coil, 316SS Shell
    • Model SC-600 - Inconel 600 Coil, 316SS Shell
  • 1 sq. foot heat exchange area
  • Max. Pressure:
    • Coil: 3,500 psi (241.3 bar)
    • Shell: 250 psi (17.2 bar)
  • Max. Temperature: 750°F (399°C)

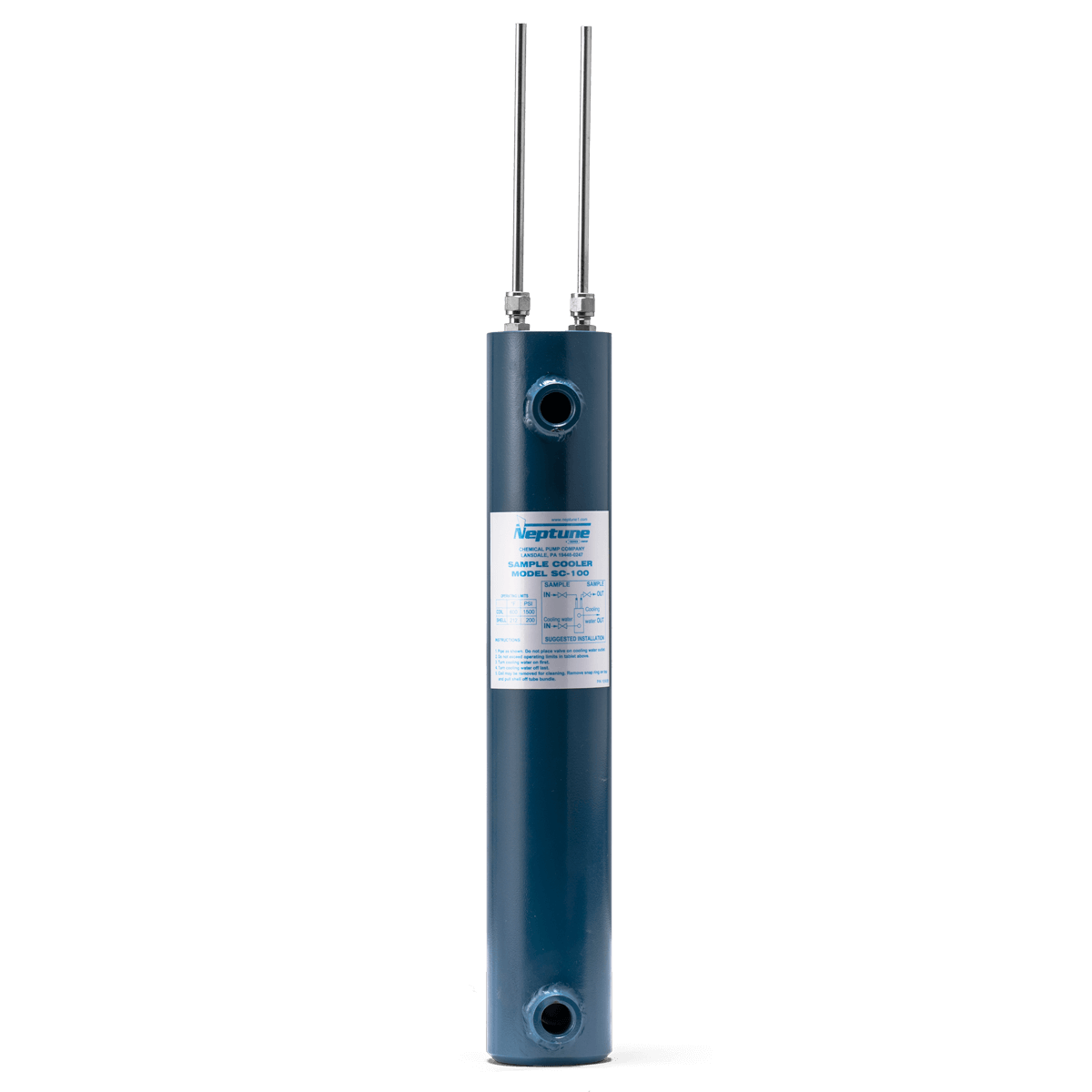

Model SC-100

  • Cleanable sample cooler, designed for simple removal of coil for inspection and cleaning
  • Tubing tails which may be formed by a tubing bender for various angles of sample entry and exit
  • Materials of Construction
    • Model SC-100 316SS Coil, Carbon Steel Shell
  • Max. Pressure:
    • Coil: 1,500 psi (103.4 bar)
    • Shell: 200 psi (13.8 bar)
  • Max. Temperature: 600°F (316°C)
