M-3100 Series Clamp-On Ultrasonic Flow Meter

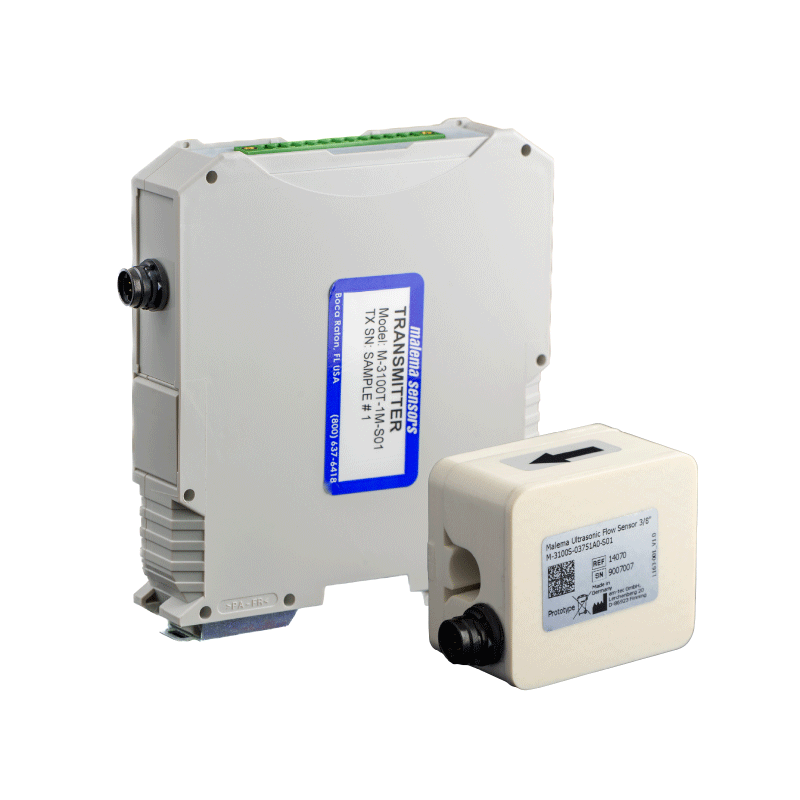

The Malema M-3100 Series Clamp-On Ultrasonic Flow Meter is a non-invasive ultrasonic transit-time flow measurement system consisting of the M-3100T Transmitter and M-3150S Clamp-on Ultrasonic Flow Sensor. Designed to measure the fluid velocity of liquid within closed conduit (pipe), the flow meters are installed on the pipe without disrupting the flow path, eliminating risks of leakage or contamination.

Ask a Question

Key Features

Applications

  • No contamination due to non-contact flow measurement
  • Compact DIN rail mount version
  • Analog and digital output options
  • RS-485 Modbus digital communication
  • Parameters (range, filters, etc.) are configurable through user-friendly Malema GUI, PC application software
  • CMP
  • Electrochemical Deposition (ECD)
  • Electroless Deposition (ED)
  • Wet Clean and Track Tools
  • Wet Process / Chemical Distribution Systems
  • Laser Equipment
  • Solar PV Equipment
  • Cooling Systems

Specifications

Sensor Specifications – Model M-3100S

 Part No.  0250  0375  0500
 Flow Range 0–3 LPM 0–8 LPM 0–20 LPM
Accuracy Flow >20% of Full Scale  ±2% Full Scale ±2% Full Scale ±2% Full Scale
Flow <20% of Full Scale  ±10 ml/min ±30 ml/min ±100 ml/min
Flow >20% of Full Scale  ±1% Full Scale ±1% Full Scale ±1% Full Scale
 Repeatability Flow <20% of Full Scale  ±5 ml/min ±15 ml/min ±50 ml/min
 Operating Pressure 6.5 Bar   6.5 Bar  6.5 Bar
 Operating Temperature  10°C–60°C  10°C–60°C  10°C–60°C
 Ambient Temperature  0°C–40°C  0°C–40°C  0°C–40°C
 Tube Material  PFA  PFA  PFA
 Tube Dimensions  inch mm   inch mm   inch mm
 ID 1/8” 3.2 1/4” 6.4 3/8” 9.5
 OD 1/4” 6.4 3/8” 9.5 1/2” 12.7
 Sensor Enclosure Rating  IP65  IP65  IP65
 Electrical Connection  Hisrose  Hisrose  Hisrose

Signal Converter Specifications – Model M-3100T (Single Channel)

MountingDIN Rail
Enclosure RatingIP20
Power Supply24 V Dc ±10%
Ambient Temperature0°- 40°C
Humidity30-85% Relative Humidity (No Condensation)
Power Consumption125 mA
Analog OutputCurrent O/P: Active: 4-20 mA (Max. Load < 900 Ω) or Passive: 4-20 mA (max. load < 1,200 Ω) or Voltage Output: 0-10 V DC (min. load > 10K Ω)
Digital InputFlow zero or totalizer reset. Zeroing. Momentary pull-up to 24 V DC for activation
Digital OutputOpen Collector / Max. 30 V DC, 200 mA max. Configurable for Low Flow Rate, High Flow Rate, Totalizer Greater Than, Totalizer Less Than, Signal Strength Less, Positive Totalizer Pulse
CommunicationMODBUS over RS-485
