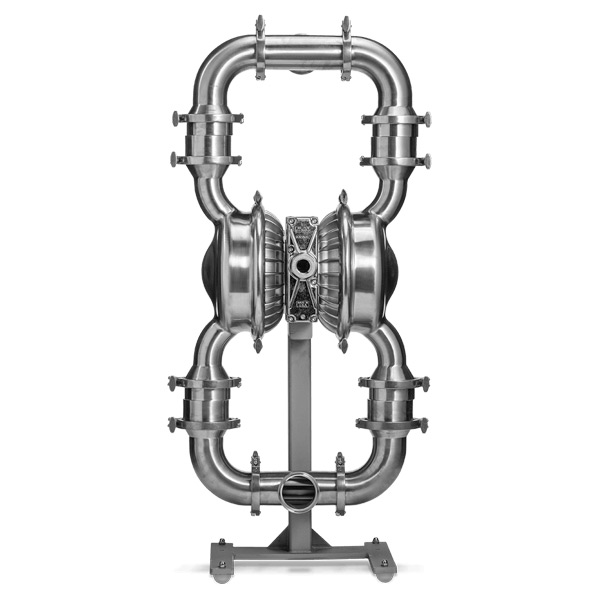

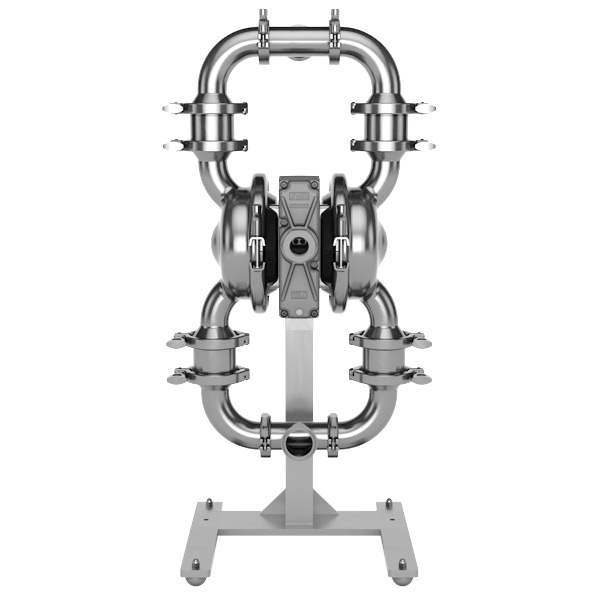

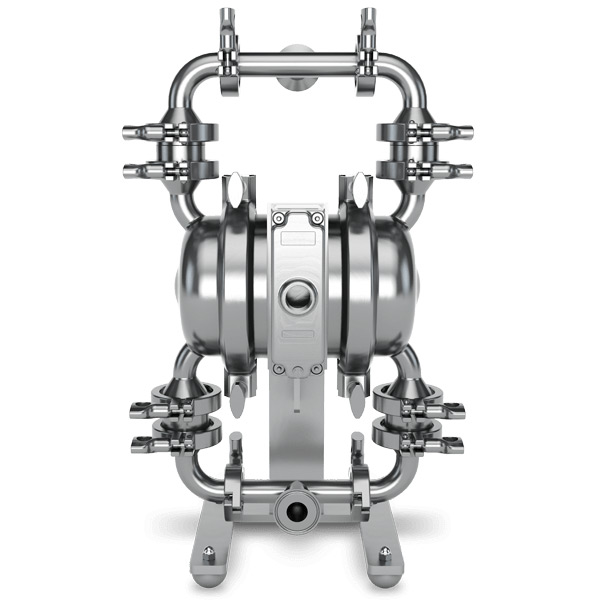

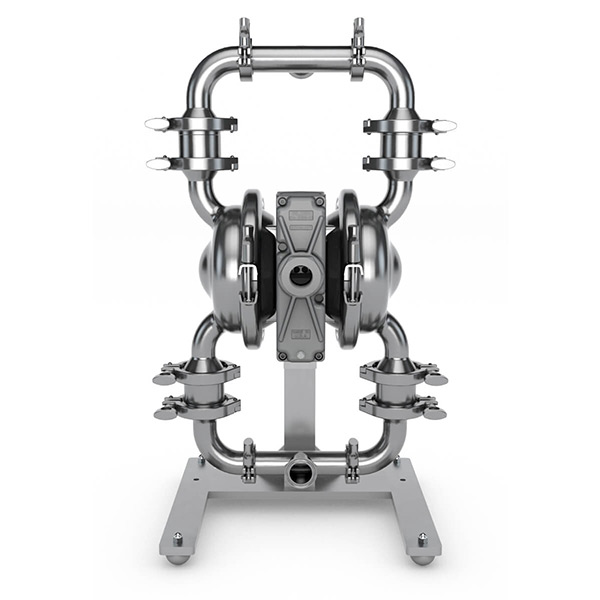

Wilden Saniflo Hygienic Series pump Wilden Saniflo Hygienic Series pump Wilden Saniflo Hygienic Series pump Wilden Saniflo Hygienic Series pump Wilden Saniflo Hygienic Series pump

Hygienic Series Air-Operated Double-Diaphragm Pumps for Hygienic and Sanitary Applications

Wilden Hygienic Series (HS) pumps are precision-engineered for maximum cleanability.

HS Air-Operated Double-Diaphragm (AODD) pumps are uniquely designed to meet high cleanliness requirements, with a free-draining flow path that enables clean-in-place (CIP) capability. The flow-through liquid-path design also eliminates any potential areas where product residue can be trapped to cause contamination.

Ideal for low-acid, pasteurized and protein-based products all the way up to biopharmaceutical sterile processes, HS pumps also meet the highest standards and requirements in the industry, including 3A, ATEX, EC 1935/2004 and FDA CFR 21.177.

Flow Range
  • 109-844 lpm (29-223 gpm)
Pressure Range
  • up to 8.6 bar (125 psig)
Discharge Pressure Range
  • up to 8.6 bar (125 psig)
  • up to 17.2 bar (250 psig) for High Pressure
Surface Finish
  • Ra 0.8 μm (32 μin)
  • Ra 0.35 μm (14 μin) optional
Material Options
  • Stainless Steel
Connection Types
  • SMS
  • DIN
  • TriClamp
Cleaning Capability
  • Clean-in-place (CIP)
Certifications
  • 3-A
  • FDA
  • 1935/2004/EC
  • USP Class VI
  • ATEX
  • CE

Features

  • Free-draining flow path prevents contamination and provides CIP capability
  • Designed for easy assembly with self-centering ball cages
  • Available with a permanent or rotatable stand for easier cleaning
  • Customizable valve options, including ball, mushroom or flap, to meet specific application requirements
  • Gentle, low-shear operation protects the integrity of delicate, shear-sensitive products
  • Offers greater flow with more gallons pumped per SCFM
  • Features dry-run capability
  • Optional High-Pressure Air Distribution System ensures reliable performance for high-pressure, high-viscosity applications, including bean paste and tomato paste

Certifications

A3 logoFDA logoEC 1935/2004 logoUSP logoEx logoCE logo

Specifications

Model Inlet & Discharge Size Air Distribution System Air Inlet Maximum Flow Maximum Pressure Maximum Temperature Maximum Temperature CIP Approximate Weight
MM Inch LPM GPM BAR PSI °C °F °C °F KG. LB.
PS2 25 1 Pro-Flo SHIFT 1/2" FNPT 109 29 8.6 125 104.4 220 90 195 40 80
PS4 38 1.5 Pro-Flo SHIFT 3/4" FNPT 348 92 8.6 125 104.4 220 90 195 51 112
PS8 51 2 Pro-Flo SHIFT 3/4" FNPT 560 148 8.6 125 104.4 220 90 195 49 108
PS15 76 3 Pro-Flo SHIFT 3/4" FNPT 802 212 8.6 125 104.4 220 90 195 98 216

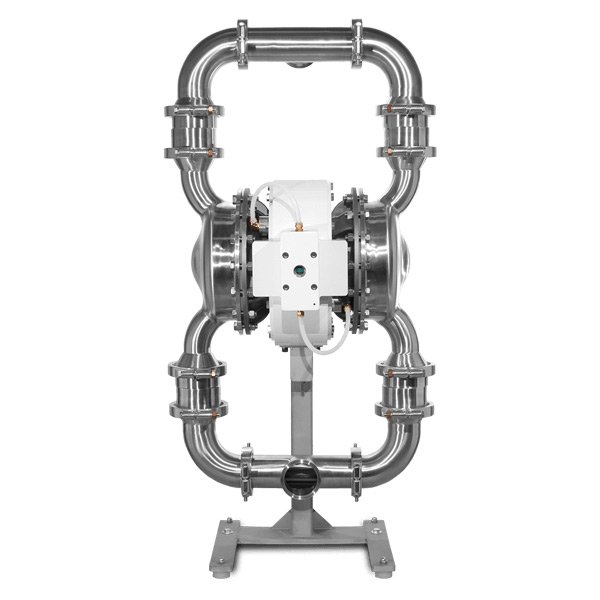

H1500 76 3 High Pressure 3/4" FNPT 291 77 17.2 250 107 225 90 195 115 254

Options

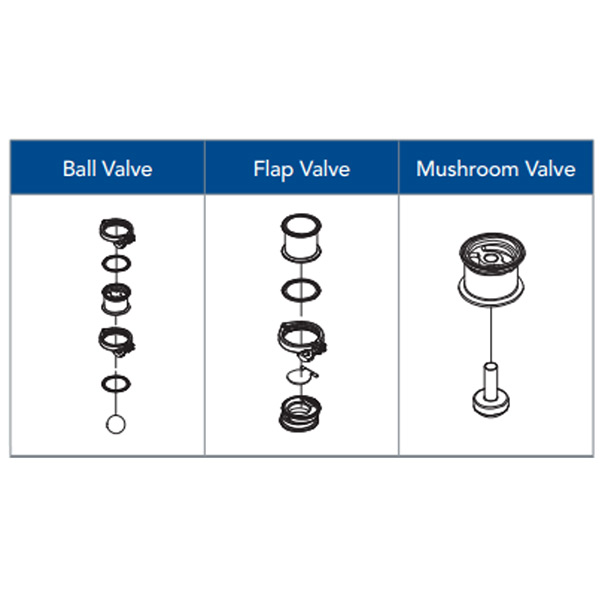

Valve options chart

Valve Options

Most Saniflo HS pumps come standard with ball valves, but other valve types, including flap and mushroom styles, are available for niche applications, such as processes with especially large solid inclusions or fluids that contain some entrained gas or vapor.

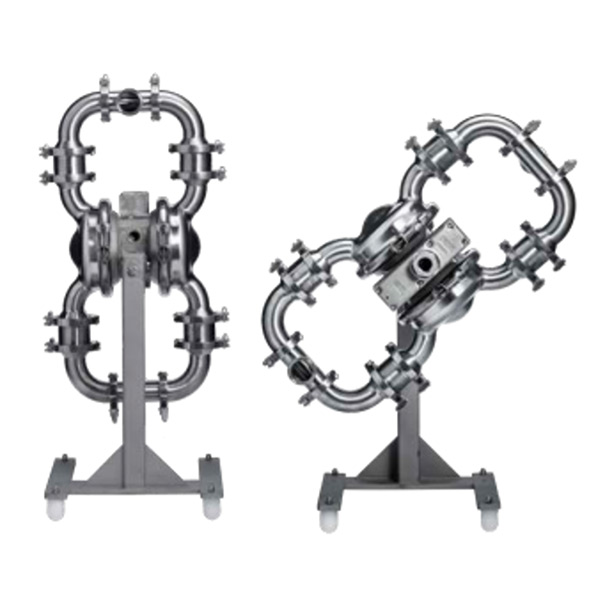

CIP pump stand

CIP Stand

For easy maintenance and cleaning, Wilden offers an optional swivel pump that enables draining by rotating the pump so the fluid flows out of the discharge and into a suitable container. The swivel stand also enables the pump to be drained without disassembly.

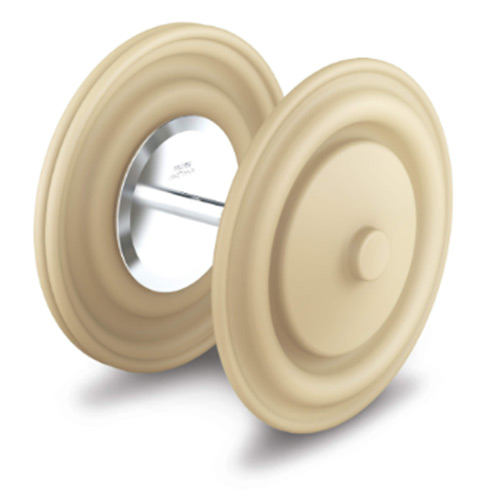

Pure-Fuse Diaphragm

Pure-Fuse Diaphragms

Pure-Fuse Integral Piston Diaphragms are ideal for hygienic applications with a one-piece design that eliminates trap areas between the outer piston and the diaphragm. This design also eliminates the normal abrasive wear caused by the outer piston in a conventional configuration, resulting in a longer-lasting diaphragm. Additionally, Pure-Fuse offers clean-in-place (CIP) capability, superior flow and suction lift over competitors.

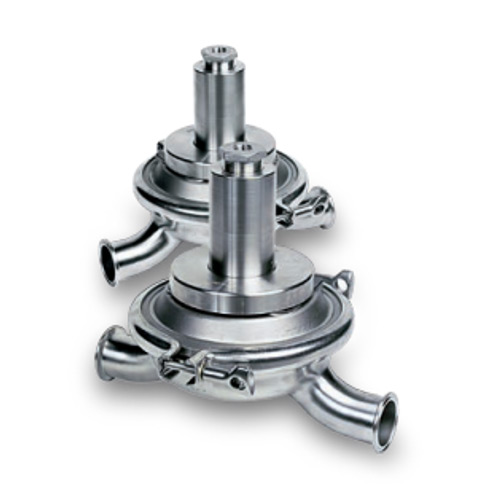

Surge Dampener

Surge Dampeners

Available in 38 mm (1-1/2"), 51 mm (2") and 76 mm (3") sizes, Wilden Equalizer® Hygienic SD Series Surge Dampeners minimize unwanted pressure fluctuations by providing a supplementary pumping action to virtually eliminate pressure variation and pulsation on AODD pumps. The Equalizer automatically sets and maintains the correct air pressure to match variations in liquid flow or discharge pressure generated by the pump. They meet FDA and USP Class VI standards when configured with PTFE integral-piston diaphragms. They also meet ATEX requirements for use in explosive environments.

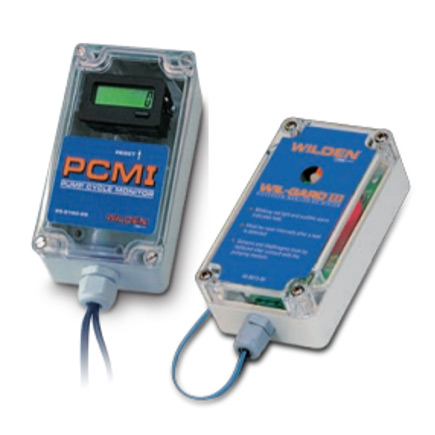

Wilden controller

Electronic Accessories

Additional electronic accessories include Wil-Gard™, which detects and notifies plant personnel when a diaphragm has ruptured to prevent further damage to the pump, and the Pump Cycle Monitor (PCMI), which counts pump cycles by sensing the presence of the air valve spool.

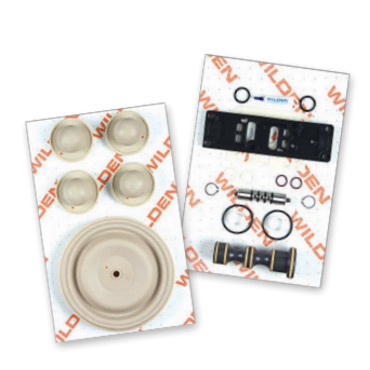

Repair and Retrofit kits

Repair and Retrofit Kits

Wilden wet and air repair kits for AODD pumps are designed to support the health and performance of your Wilden pump. Always use only authentic Wilden air kits or wet kits when repairing or maintaining your Wilden products to preserve optimal performance and factory warranties.

Markets & Applications

Markets

Ideal for food, beverage, pharmaceutical and personal care applications, Hygienic Series pumps are especially well-suited for:

  • Poultry
  • Dairy
  • Condiments
  • Sauces
  • Sweeteners
  • Acids
  • Cosmetics

Applications

Hygienic Series pumps perform reliably in the following hygienic applications:

  • Raw material storage
  • Weighing and dosing
  • In-line processing
  • Tank loading and transfer
  • Drum loading and unloading
  • Portable transfer
