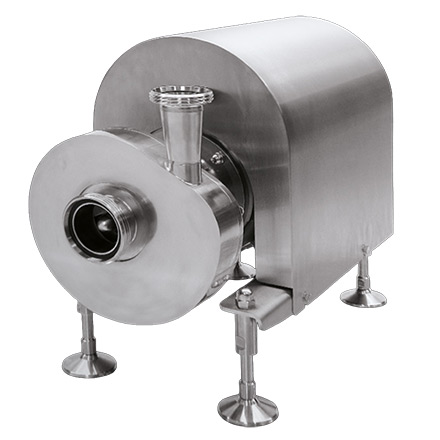

ipp Aqueous Centrifugal Pump Premium Centrifugal Pumps for Low-Viscosity Media

The fully customizable ipp Aqueous Centrifugal Pump is engineered for durability, delivering reliable and robust performance in all hygienic operating conditions.

Ideal for oils, juices, beer, wine, milk, pharmaceuticals and other low-viscosity fluids, this pump features a modular design with a range of connection options that enable application-specific customization. Designed to meet strict hygienic standards, the ipp Aqueous Centrifugal Pump features clean-in-place (CIP) and sterilize-in-place (SIP) capabilities. Maintenance is simple, with a back-pullout unit (BPU) that keeps the pump's front connected to the piping.

Flow Range

up to 5,000 lpm (1,320.9 gpm)

Pressure Range

up to 16 bar (232 psi)

Surface Finish

Ra 0.8 μm (32 μin)

Material Options

Stainless Steel

Connection Types

DIN 11851
TriClamp DIN 32676
DIN 11864
DIN EN1092-1

Cleaning Capability

Clean-in-place (CIP)
Sterilize-in-place (SIP)

Certifications

FDA
1935/2004/EC
ATEX
CE

Features
Specifications
Options
Markets & Applications
Downloads

Features

Stainless steel construction
Flow range up to 5,000 lpm (1,321 gpm)
Pressure range up to 16 bar (232 psi)
Delivery heads up to 120 m (394 ft)
Temperatures up to 150°C (302°F)
Clean-in-Place (CIP) and Sterilize-in-Place (SIP) capability
Back pull-out unit for easy seal interchanges, installation and maintenance

Certifications

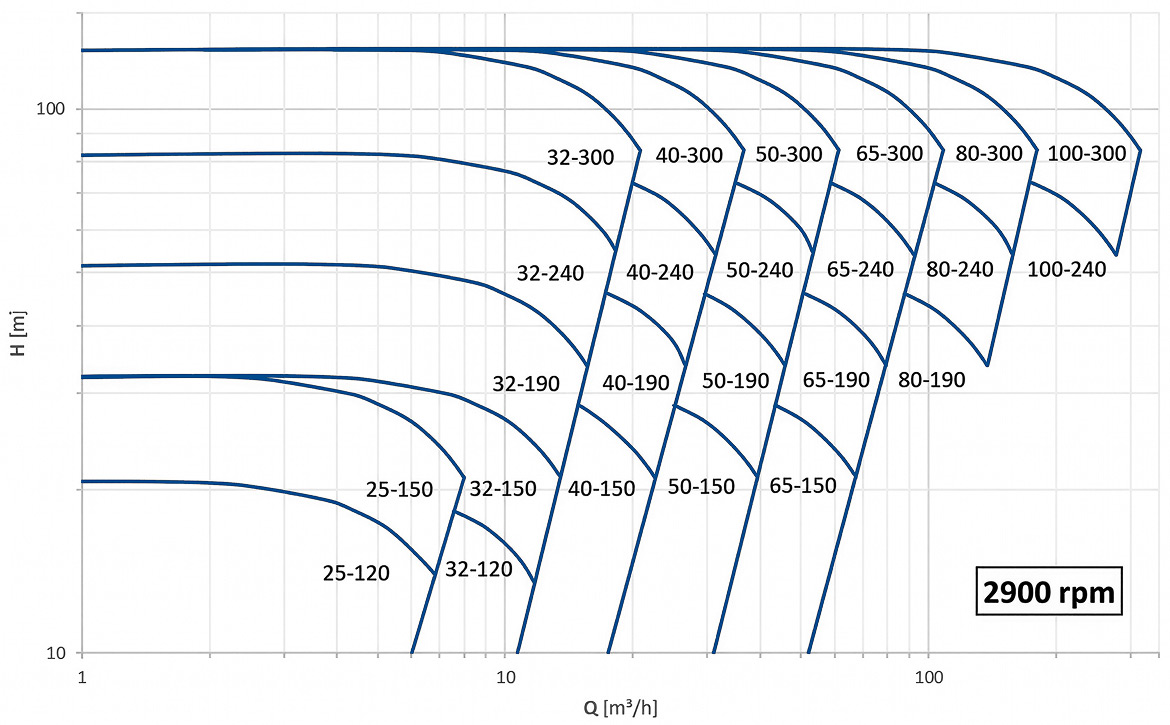

Specifications

Options

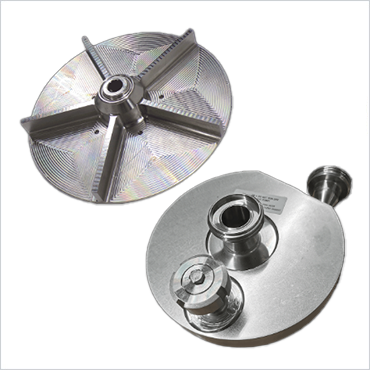

Modular Design

ipp’s Aqueous Centrifugal pump is completely modular. It can be customized with heat exchangers for cooling and/or heating, equipped with a variety of connector types, engineered with a drainage connection for complete residual draining and more.

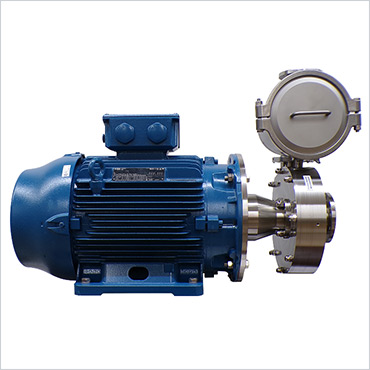

Optional Self-Priming Capability

The self-priming option offers excellent suction capacity and exceptional efficiency, allowing the pump to handle large volumes of air, such as during CIP return processes.

Comprehensive Support & Services

We offer additional in-house services, including damage analysis and repair, binding, genuine parts, and rental equipment that’s fast and efficient, backed by a 1-year guarantee. We aim to rebuild rather than replace, minimizing downtime and ensuring efficient operations.
