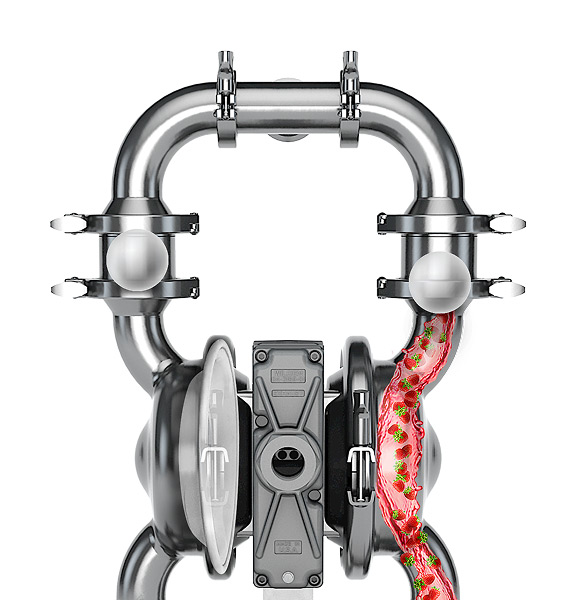

Wilden® Hygienic and FDA Series Air-Operated Double-Diaphragm Pumps from PSG Hygienic are ideal for shear-sensitive hygienic and sanitary applications as they gently transfer products via delicate, low-shear operation.
Air-Operated Double-Diaphragm pumps, (AODD Pumps), are positive displacement pumps driven by compressed air. AODD pumps operate by having the air distribution system direct the air supply to one air chamber and back side of the diaphragm that act as a separating membrane between the compressed air supply and the liquid. This moves the diaphragm away from the center block and into the liquid chamber, displacing any fluid in the liquid chamber through the discharge piping. This process pulls the opposite diaphragm inward filling the liquid chamber with fluid from the suction piping. When the diaphragm has fully extended into one liquid chamber, the air distribution system redirects the compressed air into the previously unpressurized air chamber, moving the diaphragm in the opposite direction, repeating the liquid discharge and suction process in the opposite liquid chambers.
PSG Hygienic AODD pumps are among the safest and gentlest because fluid moves through them without contacting any fast moving rotating parts or areas with tight clearances. This low-shear operation prevents product damage and preserves product quality and integrity, ensuring the safe transfer of high-value fluids and materials. Additionally, they offer self-prime, dry run and clean-in-place (CIP) capabilities and handle solids up to 60.3 mm (2.375 in).
