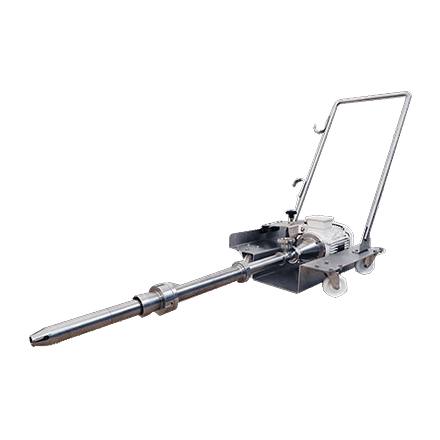

ipp Progressive Cavity Pump

ipp Progressive Cavity Pump Progressive Cavity Pump for Hygienic Fluid Bags & Barrels

The flexible, easy-to-handle ipp Progressive Cavity Pump is a horizontal immersion pump precision-engineered for robust performance in sterile applications.

Ideal for pharmaceuticals, cosmetics and high-viscosity fluids, the Progressive Cavity Pump gently transfers high-viscosity, shear-sensitive products such as toothpaste. Its modular design means this pump can be equipped with rotors and stators of any size and a wide range of materials. It offers multi-axis adjustment capabilities and fast, simple disassembly for autoclaving. It also offers a scraping system for hygienic connection and disconnection to fluid bag outlets.

Flow Range
  • 1.2-37 lpm (0.32-10 gpm)
Pressure Range
  • up to 8 bar (116 psi)
Surface Finish
  • Ra 0.4 μm (32 μin)
Material Options
  • Stainless Steel
Certifications
  • FDA
  • CE

Features

  • Easily position the pump at virtually any angle along the X, Y or Z axis to match your process requirements with multi-axis adjustment capabilities
  • Offers a smooth start-up with consistent flow from the first rotation, because air and trapped products are automatically displaced during insertion
  • Delivers gentle product handling with chemically neutral materials and progressive cavity pumping performance that preserves the integrity of sensitive or shear-sensitive products
  • Maintains product purity with low-clearance, joint-free construction that reduces contamination risks and eliminates common debris and bacteria traps
  • Delivers simplified hygiene and reduced waste with a tightly secured scraper that keeps product intake centered and minimizes leftover residue inside the bag
  • Reduces maintenance time and complexity with self-closing components, large thread pitches and a robust roller bearing for fast, operator-friendly disassembly

Certifications

FDA logoCE logo

Specifications

Model Inlet and Discharge Size Connection Type Displacement per Revolution Maximum Speed Maximum Flow Immersion Depth Maximum Pressure Maximum CIP Temperature Maximum SIP Temperature
MM Inch L/Rev. Gal/Rev. RPM L/HR GPH MM IN Bar PSI °C °F °C °F
0080 13 - 51 0.5 -2 DN15 - DN50 0.0008 0.00021 1500 72 19 500 - 1,200 20 - 47 7.86 114 90 194 130 266
0174 13 - 51 0.5 - 2 DN15 - DN50 0.00174 0.00046 1500 158 42 500 - 1,200 20 - 47 7.86 114 90 194 130 266
0346 13 - 51 0.5 - 2 DN15 - DN50 0.00346 0.00091 1500 310 82 500 - 1,200 22 - 47 7.86 114 90 194 130 266
127 13 - 51 0.5 - 2 DN15 - DN50 0.01270 0.00335 1500 760 201 500 - 1,200 23 - 47 7.86 114 90 194 130 266
290 13 - 51 0.5 - 2 DN15 - DN50 0.02900 0.00766 1500 1,680 444 500 - 1,200 24 - 47 7.86 114 90 194 130 266
367 13 - 51 0.5 - 2 DN15 - DN50 0.03670 0.00970 1500 2,200 581 500 - 1,200 25 - 47 7.86 114 90 194 130 266

Options

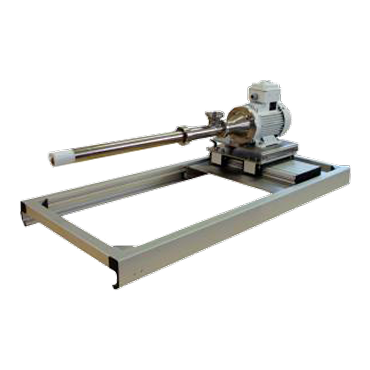

ipp Progressive Cavity Pump customized configuration

Additional Customizations

Our engineering expertise enables you to customize the ideal configuration for your application. We will work with you to design a solution that meets your specific requirements, whether that means adjusting individual pump feet to fit specific dimensions, implementing custom port positions, or including multiple connection types.

a warehouse stocked with iLobe pump parts

Robust Inventory

We minimize downtime by maintaining an inventory of genuine parts, enabling short lead times and expedited service.

Man working on ipp product

Comprehensive Support & Services

We offer additional in-house services, including damage analysis and repair, binding, genuine parts, and rental equipment that’s fast and efficient, backed by a 1-year guarantee. We aim to rebuild rather than replace, minimizing downtime and ensuring efficient operations.

Markets & Applications

Markets

Ideal for pharmaceutical and personal care applications, ipp Progressive Cavity pumps are especially well-suited for:

  • Cosmetics
  • Ointments
  • Personal care products
  • Toothpaste
  • Soap

Applications

Our ipp Progressive Cabity pumps perform reliably in the following applications:

  • Fluid Bags
  • Barrels
