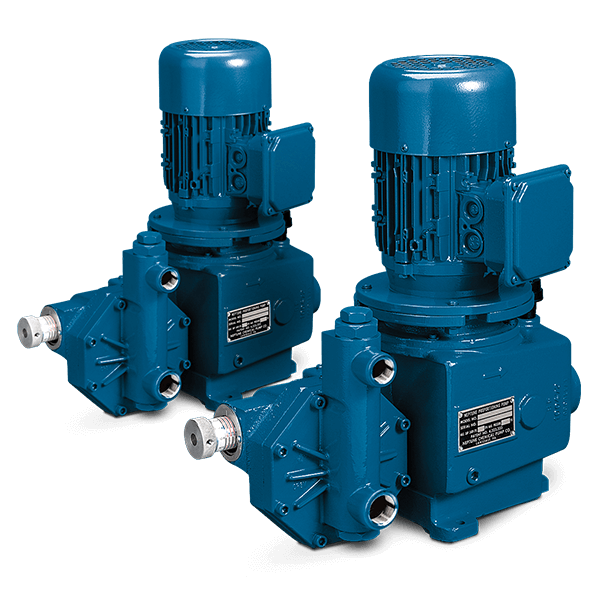

500a

560 Series

560 Series Hydraulic Metering Pumps are designed for higher capacities and available in Neptune’s Simplex design or Duplex design. Neptune's Simplex design configuration includes a single micrometer dial with one liquid head. Neptune’s Duplex design are configured to include two micrometer dials with two liquid heads.

Liquid Head Materials of Construction
  • 316SS
  • C-20
  • PVC
  • PVDF
Diaphragms
  • PTFE
Capacity
  • 40 gph (151.42 L/h) to 94 gph (355 L/h)
Max Pressure
  • 316SS - 350 psi (24 bar)
  • C-20 - 350 psi (24 bar)
  • PVC - 150 psi (11 bar)
  • PVDF - 150 psi (11 bar)
Max Temperature
  • 316SS - 200°F (93°C)
  • C-20 - 200°F (93°C)
  • PVC - 125°F (52°C)
  • PVDF - 125°F (52°C)
Standard Motor
  • 1/2HP-1ph-115VAC-60c-TEFC up to 1HP
logo_choice Select Your Pump
  • icon_cert-CE
  • American Petroleum Institute Logo

Features and Benefits

  • Ten turn micrometer dial calibrated in 1% increments, with the ability to adjust capacity from 10% to 100%
  • Variable Oil By-Pass™ Stroke Adjustment provides a better valve performance when compared to variable linkage designs
  • Bright color contrasted dial protected from corrosion by clear PVC covering
  • Stroke mechanism moves only when adjustment is made, eliminating wear
  • Piston is powered through complete stroke length at all capacity adjustments, eliminating stress, wear and shock of lost motion designs
  • Totally enclosed fan-cooled motor with built-in automatic thermal overload
