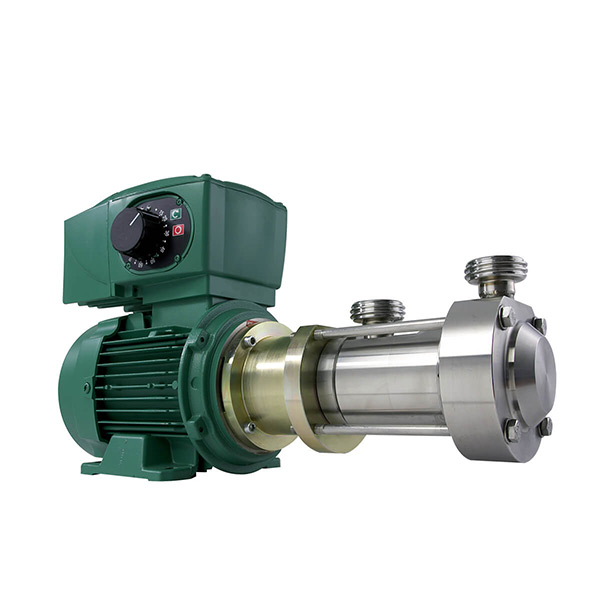

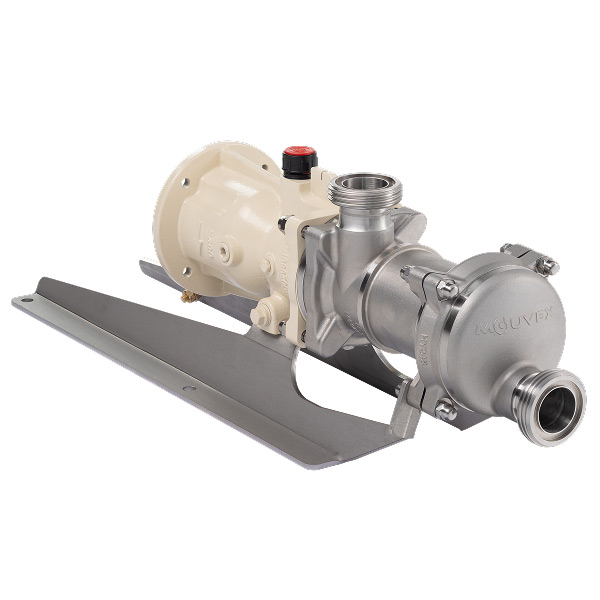

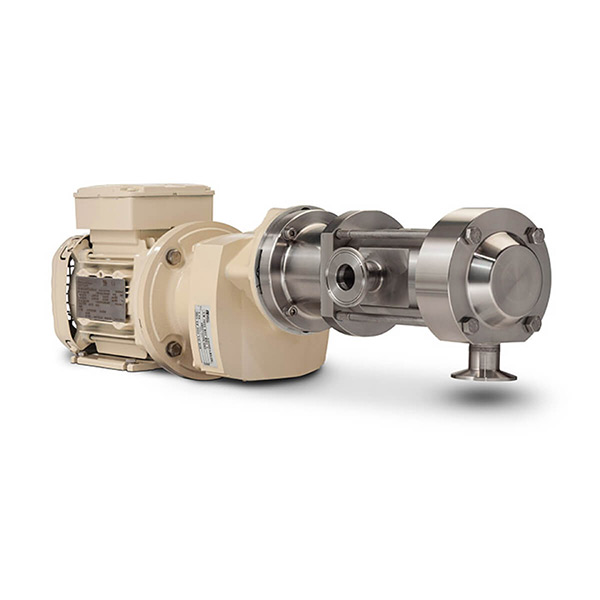

Mouvex Micro C Series Pump Mouvex Micro C Series Pump Mouvex Micro C Series pump

Mouvex Micro C Series Dosing Pumps for Hygienic and Sanitary Applications

Mouvex® Micro C Series Eccentric Disc pumps are precision-engineered for smaller batch flow rates, making them ideal for continuous dosing and injection in hygienic and sterile applications such as additives, flavorings and coatings.

Micro C Series Eccentric Disc pumps feature a unique seal-less design with stainless steel bellows that ensure durability, safety and product containment. As a result, these pumps deliver very high suction and discharge pressures that allow them to self-prime and fully strip lines, a critical consideration when maximizing product recovery.

Flow Range
  • 2-12 lpm (0.55-3.52 gpm)
Pressure Range
  • 3-15 bar (43-217 psi)
Surface Finish
  • Ra 0.8 μm (32 μin)
Material Options
  • Stainless Steel
Connection Types
  • BSP/NPT
  • SMS 1145
  • DIN11851
  • DIN 32676 Clamp
  • DN25 ISO Clamp
  • ASME-BPE 2009 Clamp
Cleaning Capability
  • Clean-in-place (CIP)
  • Sterilize-in-place (SIP)
Certifications
  • FDA
  • 1935/2004/EC
  • ATEX
  • CE

Features

  • Strong suction and discharge pressure ensure maximum product recovery with the ability to strip and drain transfer piping or tubing
  • Gentle, low-shear handling protects the integrity of critical shear-sensitive products
  • Low, linear speed and consistent flow rate independent of pressure
  • Precise dosing and accurate volume metering with high turn down, self-priming and dry-run capabilities
  • Seal-less design eliminates leakage
  • Effective for both high- and low-viscosity fluids
  • Clean-in-place (CIP) and sanitize-in-place (SIP) capabilities
  • Engineered for easy integration and long work life

Certifications

FDA logo  EC 1935/2004 logo Ex logo CE logo

Specifications

Model Inlet & Discharge Size Maximum Flow Maximum Speed Maximum Pressure Maximum Temperature Maximum Temperature CIP/SIP Approximate Weight
MM Inch L/H GPH RPM BAR PSI °C °F °C °F KG. LB.
Micro C 125 13
or
19
or
25		 0.5
or
0.75
or
1		 125 33 1000 15 217 110 230 121 250 8 17.7
Micro C 250 250 66 1000 10 145 110 230 121 250 8 17.7
Micro C 500 500 132 1000 5 72 110 230 121 250 8 17.7
Micro C 800 800 211 1000 3 43 110 230 121 250 8 17.7

Options

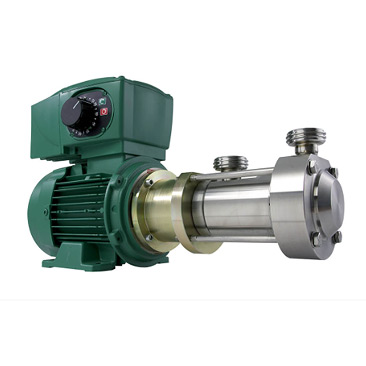

Direct Drive pump

Direct Drive or Gear Motor Drive

For easy, precise control, Mouvex Micro C Series pumps can be equipped with a direct drive or gear motor drive, with or without a variable frequency drive (VFD).

Mouvex H-FLO Series connector

Connections

Mouvex Micro C Series pumps can be equipped with multiple connection options, including 90° pump connections, DIN 11851, DN20, BSP, NPT machine-tapping, DN20 clamp, clamp and ribbed tip, and RTJ connections.

Markets & Applications

Markets

Ideal for food, beverage, pharmaceutical and personal care applications, Micro C Series pumps are especially well-suited for:

  • Dairy
  • Wine
  • Beer
  • Beverages
  • Syrups
  • Bakery
  • Confectionery
  • Condiments
  • Sauces
  • Cereals

Applications

Micro C Series pumps perform reliably in the following hygienic applications:

  • Dosing
  • Injections
  • Coatings
