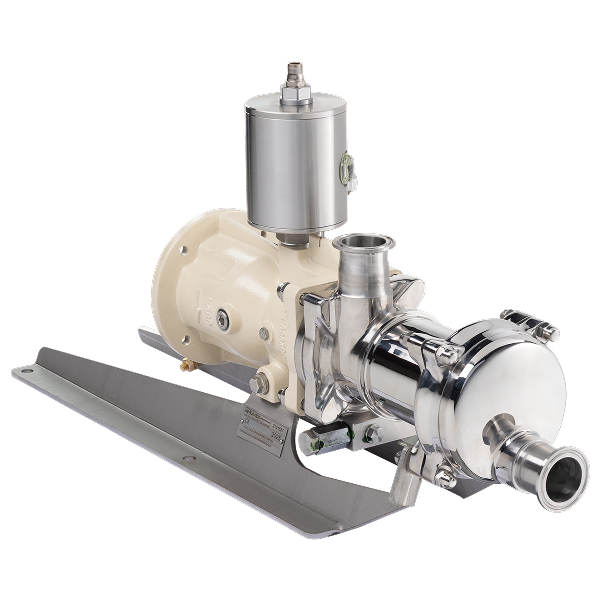

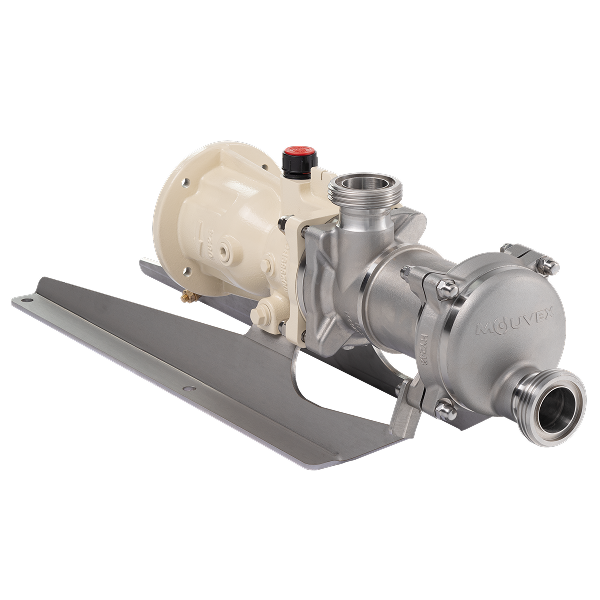

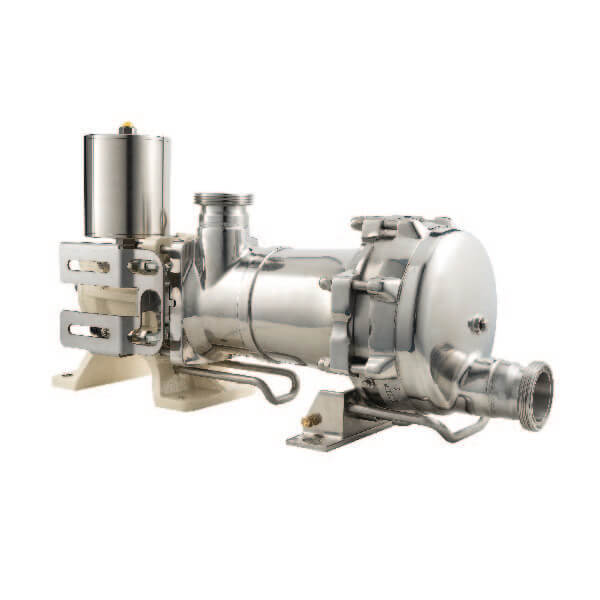

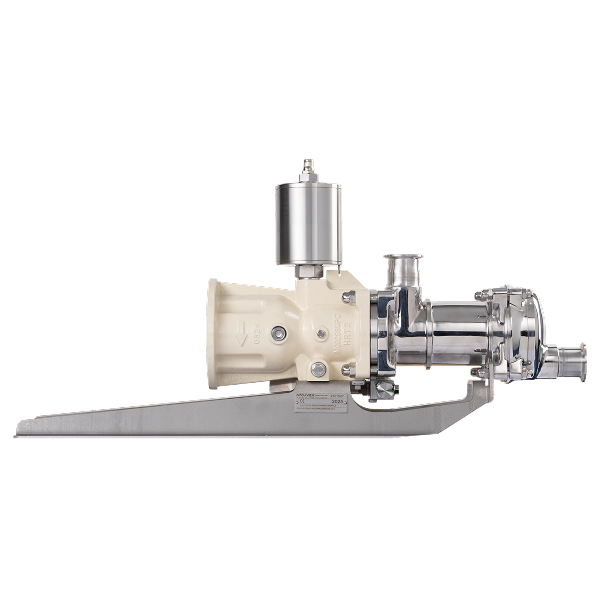

Mouvex H-FLO Series Seal-Less Pumps for Hygienic Applications

Mouvex® H-FLO Seal-Less Eccentric Disc pumps are precision-engineered for superior product recovery and uncompromising performance in hygienic and sanitary applications.

A unique alternative to typical pump configurations, H-FLO Seal-Less Eccentric Disc pumps are designed without mechanical seals, magnetic drives or bushings. They offer up to 90% product recovery because they deliver high suction and discharge pressures, which also enable self-priming dry-run capabilities.

Mouvex H-FLO Series pumps maximize product recovery with full drainability, maintain product integrity with consistent, gentle, low-shear flow, and minimize contamination risks with clean-in-place (CIP) and sterilize-in-place (SIP) capabilities.

Flow Range
  • 27-1,167 lpm (7.3-308.2 gpm)
Pressure Range
  • 7-16 bar (101-232 psi)
Surface Finish
  • Ra 0.8 μm (32 μin)
Material Options
  • Stainless Steel
Connection Types
  • SMS 1145
  • DIN 11851
  • DIN11864 Aseptik
  • ASME-BPE 2009 Clamp
  • ISO 2852 Clamp
Cleaning Capability
  • Clean-in-place (CIP)
  • Sterilize-in-place (SIP)
Certifications
  • EHEDG
  • FDA
  • 1935/2004/EC
  • ATEX
  • CE

Features

  • Maximum cleanability and product recovery with fully drainable and cleanable design that ensures pumped product only comes into contact with four components, with no bushings, no mechanical seals and no magnets
  • Provides consistent and efficient flow across a wide range of viscosities, including chocolate, condiments and sauces, glucose and much more
  • Advanced efficiency with eccentric disc design that allows for consistent flow and improved energy savings
  • Extremely gentle, pulse-free operation protects the integrity of shear-sensitive products
  • Engineered for reduced maintenance with no mechanical seals and only two wear parts (cylinder and disc) with no special tools, setting or shimming required
  • Dry run capability of up to 5 minutes
  • CIP and SIP capabilities for the ultimate in convenience and cleanliness

Certifications

EHEDG logoFDA logo  EC 1935/2004 logo Ex logo CE logo

Specifications

Model Inlet & Discharge Size Maximum Flow Maximum Speed Maximum Pressure Maximum Temperature Maximum Temperature CIP/SIP Approximate Weight
MM Inch M3/H LPM GPM BAR PSI °C °F °C °F KG. LB.
H-FLO 1 38 1.5 1.6 26.7 7.3 1500 16 232 100 212 121 250 17 37.5
H-FLO 2 38 1.5 2.3 38.3 10.3 1500 10 145 100 212 121 250 17 37.5
H-FLO 3 38 1.5 3.1 51.7 13.6 1500 10 145 100 212 121 250 17 37.5
H-FLO 6 51 2 6.5 108.3 28.6 1000 10 145 100 212 121 250 41 91
H-FLO 8 51 2 8.5 141.7 37.4 1000 7 101 100 212 121 250 41 91
H-FLO 11 64 2.5 12 200.0 52.8 600 10 145 100 212 121 250 82 181
H-FLO 15 64 2.5 16.5 275.0 72.6 600 10 145 100 212 121 250 82 181
H-FLO 25 76 3 27.5 458.3 121.1 525 10 145 100 212 121 250 122 269
H-FLO 40 76 3 43 716.7 189.3 460 10 145 100 212 121 250 175 386
H-FLO 50 102 4 55 916.7 242.2 400 10 145 100 212 121 250 225 497
H-FLO 65-HP 102 4 54 900.0 237.7 350 10 145 100 212 121 250 315 694.5
H-FLO 65-S 102 4 70 1166.7 308.2 350 7 101 100 212 121 250 315 694.5

Options

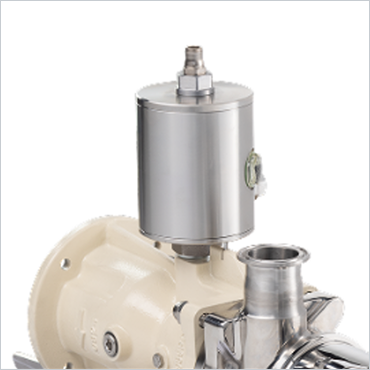

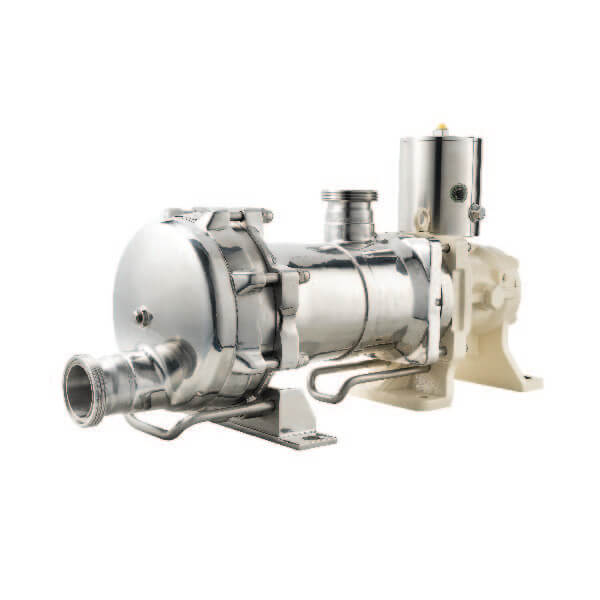

Mouvex H-FLO Series easy clean system

Easy Clean System

Specifically designed to improve CIP operations, H-FLO Series pumps can be equipped with the Mouvex Easy Clean System (ECS) that incorporates a CIP bypass directly into the pump, eliminating the need for an external CIP bypass. The ECS also eliminates the need for an additional power source because the compressed air and solenoid valve used for ordinary CIP bypass can power the ECS.

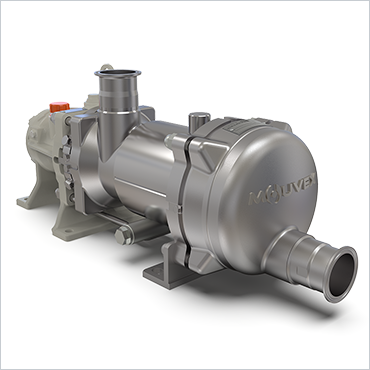

Mouvex H-Flo pump heating jacket

Heating Jacket

For hygienic and sanitary applications where maintaining temperature control is critical, Mouvex H-FLO Series pumps can be designed with an optional heating jacket.

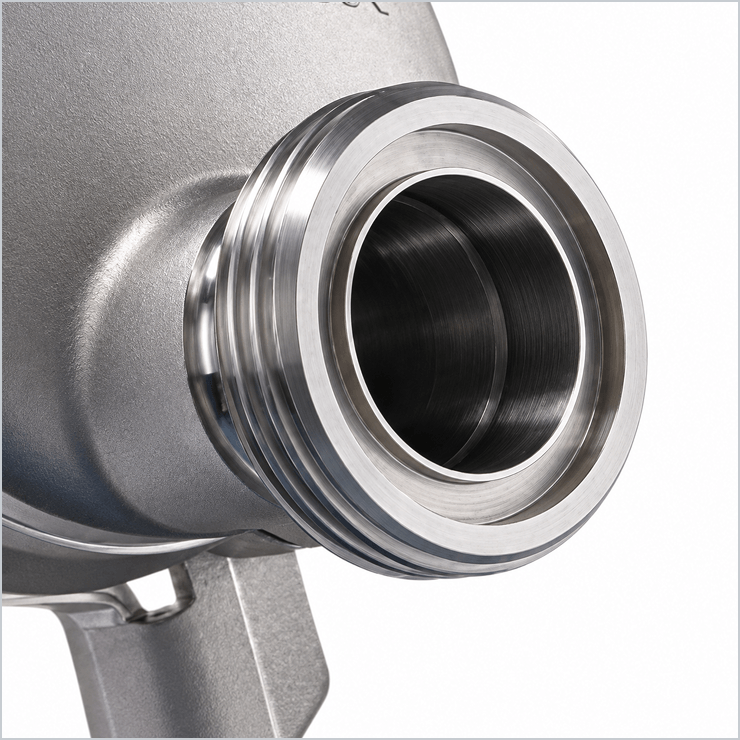

Mouvex H-FLO Series connector

Connections

The Mouvex H-FLO Series can be equipped with multiple connection options, including SMS 1145, DIN 11851, DIN 11864 BF-A Aseptik, ISO 2852 Clamp and Tri-Clamp® ASME-BPE.

Markets & Applications

Markets

Ideal for food, beverage, pharmaceutical and personal care applications, H-FLO Series pumps are especially well-suited for:

  • Chocolate
  • Condiments
  • Sauces
  • Syrups
  • Wine
  • Beer
  • Concentrates
  • Glucose

Applications

H-FLO pumps perform reliably in the following hygienic applications:

  • Raw material storage
  • Weighing and dosing
  • In-line processing
  • Tank loading and transfer
  • Drum loading and unloading
  • Portable transfer
