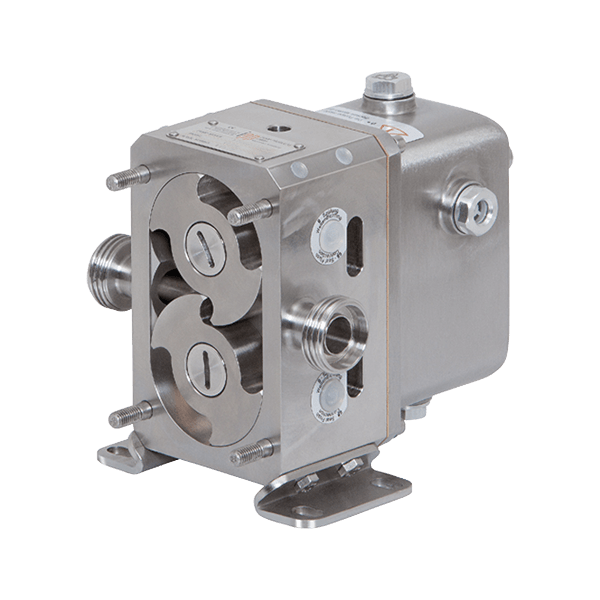

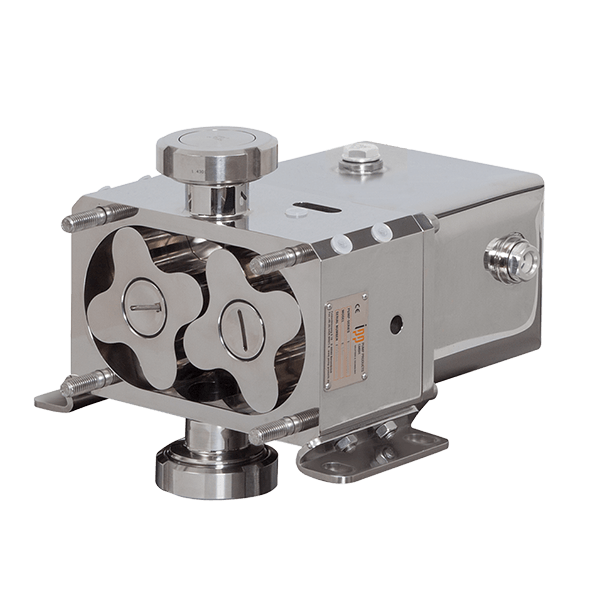

ipp Premiumlobe Customizable Rotary Lobe Pump for Hygienic Applications

Built for robust operation, the Premiumlobe rotary lobe pump is a fully customizable platform built for demanding hygienic applications.

Designed for sanitary applications, the Premiumlobe pump offers contact-less running with the capability for in-line maintenance, clean-in-place (CIP) and sterilize-in-place (SIP) processes. This modular system is fully customizable to meet your specific application and process requirements, with a range of rotor and seal options. The Premiumlobe pump is precision-engineered to enhance efficiency while maintaining the cleanliness, reliability, and serviceability expected in highly regulated applications.

Flow Range
  • 14-2,716 lpm (3.7-717.5 gpm)
Pressure Range
  • 15-80 (218-1,160 psi)
Surface Finish
  • Ra 0.4 μm (32 μin) or
  • Ra 0.8 μm (32 μin)
Material Options
  • Stainless Steel
  • Hastelloy
Connection Types
  • DIN 11851
  • TriClamp DIN 32676
  • DIN 11864
  • DIN EN 1092-1
Cleaning Capability
  • Clean-in-place (CIP)
  • Sterilize-in-place (SIP)
Certifications
  • 3-A
  • FDA
  • 1935/2004/EC
  • ATEX
  • CE

Features

  • Fully modular system – can be configured to application specifications
  • Contact-less running in all operating conditions – precision engineered for precise positioning for rotor concentricity
  • Extremely robust design – designed with thicker, shorter shafts ensuring that the pump has a high tolerance for temperature and load changes, eliminating shaft deflection
  • Clean-in-place (CIP) and sterilize-in-place (SIP) – designed to EHEDG Certification standards and fully drainable
  • In-line maintenance – front-pull-out system and easily accessible mechanical seals for simple, in-line maintenance
  • Two pumps in one – process transfer plus CIP capability

Specifications

Model Inlet and Discharge Size Connection Type Displacement per Revolution Maximum Speed Maximum Flow Maximum Pressure Maximum CIP Temperature Maximum SIP Temperature QCIP Approximate Weight
MM Inch L/Rev. Gal/Rev. RPM LPM GPM Bar PSI °C °F °C °F M3/H GPM KG. LB.
L55sxx 13 0.5 DN15 0.010 0.003 1400 14.00 3.70 15 218 90 194 130 266 n/a n/a 10.5 23
IL55sx 13 0.5 DN15 0.030 0.008 1400 42.00 11.00 15 218 90 194 130 266 1.4 6.2 10 22
L55s 13 0.5 DN15 0.039 0.010 1400 54.60 14.42 15 218 90 194 130 266 2.1 9.2 10.5 23
L55l 25 1.0 DN25 0.056 0.015 1400 78.40 20.71 15 218 90 194 130 266 3.1 13.6 11 24
L55ll 38 1.5 DN40 0.076 0.020 1400 106.40 28.11 15 218 90 194 130 266 4.4 19.4 11.5 25
L55l 38 1.5 DN40 0.094 0.025 1400 131.60 34.77 90 131 90 194 130 266 5.9 26.0 12 26
L63l 38 1.5 DN40 0.120 0.032 1400 168.00 43.38 15 218 90 194 130 266 7 30.8 17 37
L63l 51 2.0 DN50 0.180 0.047 1400 252.00 66.57 15 218 90 194 130 266 10.5 46.2 19 42
L85sxx 13 0.5 DN15 0.100 0.026 1100 110.00 29.06 80 1,160 90 194 130 266 3.8 16.7 38 84
L85sx 32 1.25 DN32 0.169 0.045 1100 185.90 49.11 30 435 90 194 130 266 7.5 33.0 33 73
L85s 38 1.5 DN40 0.210 0.055 1100 231.00 61.02 20 290 90 194 130 266 10.5 46.2 35 77
L85l 51 2.0 DN50 0.280 0.074 1100 308.00 81.37 15 218 90 194 130 266 14.4 63.4 38 84
L85l 64 2.5 DN65 0.350 0.092 1100 385.00 101.71 15 218 90 194 130 266 18 79.3 40 88
L155sxx 25 1.0 DN25 0.300 0.079 950 285.00 75.29 80 1,160 90 194 130 266 11.3 49.8 100 220
L115sx 38 1.5 DN40 0.400 0.106 950 380.00 100.39 30 435 90 194 130 266 15.8 69.6 90 198
L115s 51 2.0 DN50 0.550 0.145 950 522.50 138.03 20 290 90 194 130 266 24.3 107.0 95 209
L115sl 64 2.5 DN65 0.750 0.198 950 712.50 188.22 20 290 90 194 130 266 31.5 138.7 98 216
L155l 76 3.0 DN80 0.950 0.251 950 902.50 238.42 15 218 90 194 130 266 43 189.3 101 223
L115l 102 4.0 DN100 1.230 0.325 950 1168.50 308.69 15 218 90 194 130 266 56.7 249.6 110 243
L130sx 64 2.5 DN65 1.230 0.325 850 1045.50 276.19 40 580 90 194 130 266 24.7 108.8 170 375
L130s 76 3.0 DN80 1.600 0.422 850 1360.00 359.27 22 319 90 194 130 266 37.1 163.3 181 399
L130l 102 4.0 DN100 1.970 0.520 850 1674.50 442.36 15 218 90 194 130 266 56.5 248.8 192 423
L130l 102 4.0 DN100 2.340 0.612 850 1989.00 525.44 90 131 90 194 130 266 56.5 248.8 202 445
L160sxx 32 1.25 DN32 1.030 0.272 800 824.00 217.68 80 1,160 90 194 130 266 40 176.1 245 540
L160sx 51 2.0 DN50 1.290 0.340 800 1032.00 272.63 50 725 90 194 130 266 50.8 223.7 255 562
L160s 76 3.0 DN80 1.600 0.422 800 1280.00 338.14 30 435 90 194 130 266 65.2 287.1 245 540
L160l 102 4.0 DN100 2.400 0.633 800 1920.00 507.21 20 290 90 194 130 266 108 475.5 270 595
L160l 152 6.0 DN150 3.410 0.900 800 2728.00 720.66 15 218 90 194 130 266 148.4 653.4 320 705

Options

internal parts for an iLobe pump

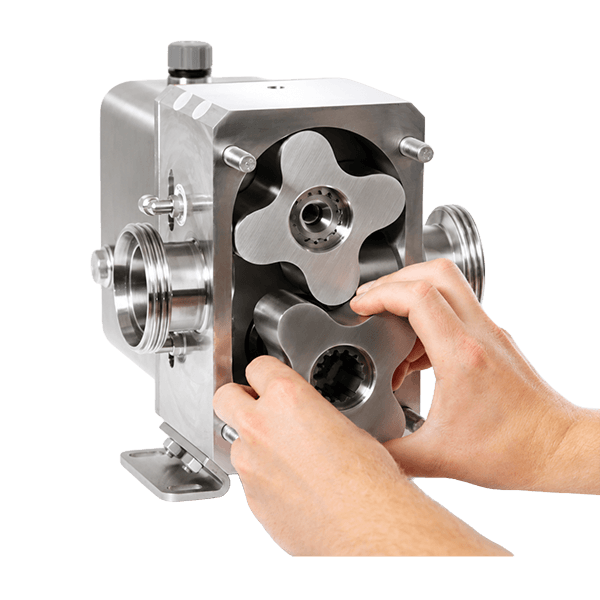

Multiple Rotor Options

Choose from a range of rotor options, including trilobe, bilobe, bi-wing, helical twisted, gear, circumferential piston and more, to suit the viscosity and solid inclusion properties of your application.

a collection of sealed iLobe parts

Multiple Seal Options

Select from several seal options, including single mechanical seals, double mechanical seals and lip seals.

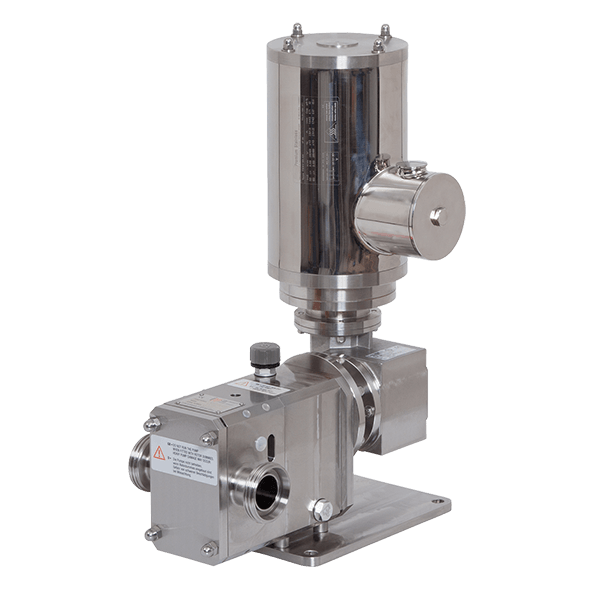

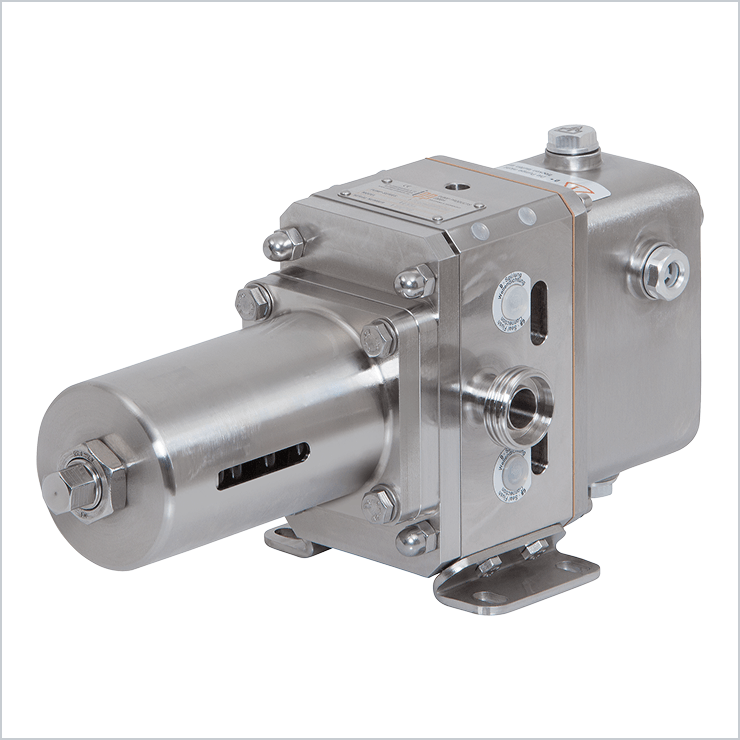

Pressure Relief Valves

The ipp Premiumlobe pump can be equipped with a spring-loaded or compressed-air hygienic pressure relief valve.

ipp iLobe pump on a stand

Additional Customizations

Our engineering expertise enables you to customize the ideal rotary lobe configuration for your application. We will work with you to design a solution that meets your specific requirements, whether that means adjusting individual pump feet to fit specific dimensions, implementing custom port positions, or including multiple connection types.

a warehouse stocked with iLobe pump parts

Robust Inventory

We minimize downtime by maintaining an inventory of genuine parts, enabling short lead times and expedited service.

Man working on ipp product

Comprehensive Support & Services

We offer additional in-house services, including damage analysis and repair, binding, genuine parts, and rental equipment that’s fast and efficient, backed by a 1-year guarantee. We aim to rebuild rather than replace, minimizing downtime and ensuring efficient operations.

Markets & Applications

Markets

Ideal for food and beverage applications, iLobe pumps are especially well-suited for:

  • Chocolates
  • Honey
  • Pralines
  • Confectionery
  • Pastry
  • Bakery products

Applications

Our iLobe pumps perform reliably in the following applications:

  • Raw material storage
  • Weighing and dosing
  • In-line processing
  • Tank loading and transfer
  • Drum loading and unloading
  • Portable transfer
