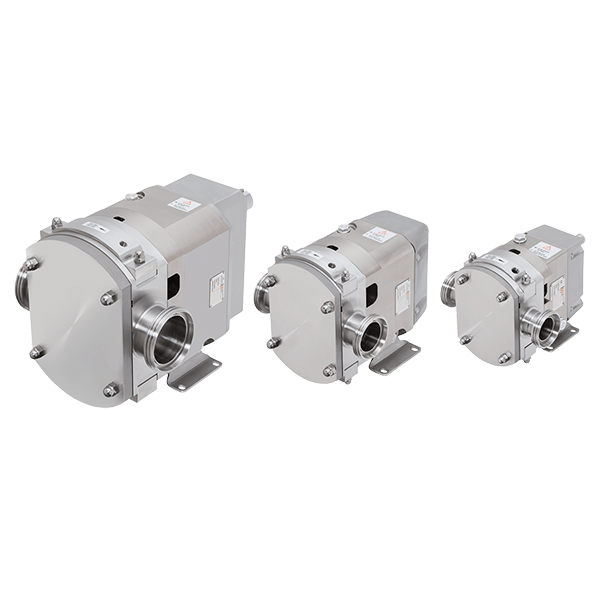

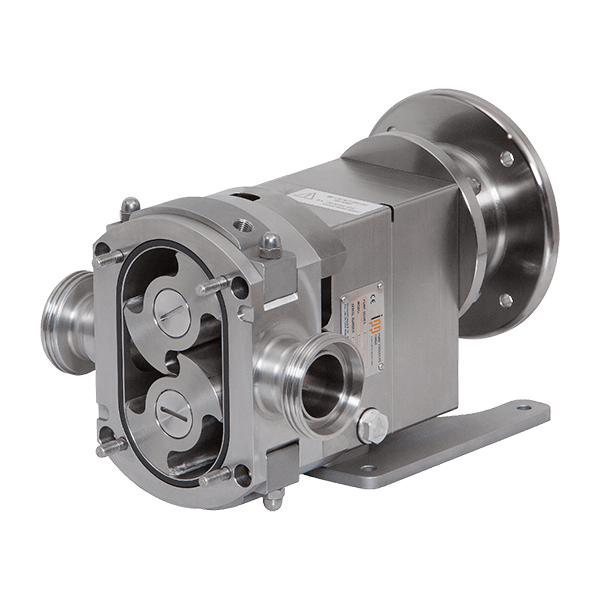

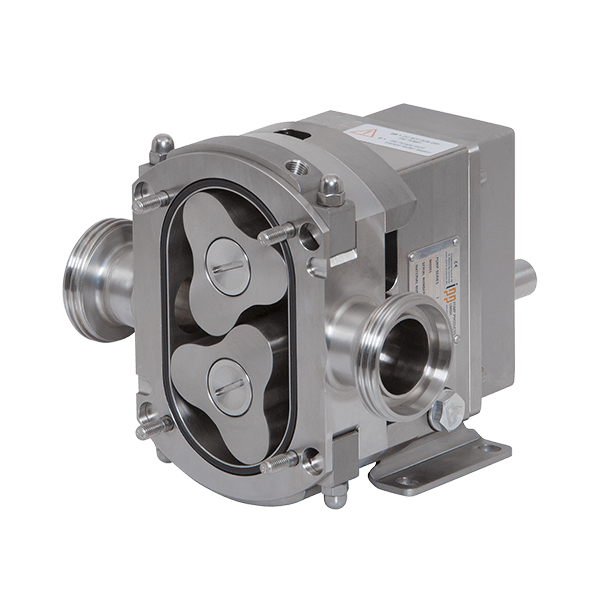

ipp iLobe Customizable Rotary Lobe Pump for Hygienic Applications

Our best pump for chocolate transfer, the ipp iLobe combines all design features from our Premiumlobe pump with an optional integrated heat exchanger for precise temperature control. Ideal for molten chocolate, pralines, pastry and other confectionery applications, the iLobe is precision-engineered to minimize shear damage and maintain robust performance, even for high-viscosity liquids.

This cost-competitive rotary lobe pump maintains contactless running in all applications. To meet strict hygienic standards, the iLobe features clean-in-place (CIP) and sterilize-in-place (SIP) capabilities. It is also fully drainable to maximize product recovery.

Flow Range
  • 42-1,000 lpm (11-264.2 gpm)
Pressure Range
  • 8-15 bar (116-218 psi)
Surface Finish
  • Ra 0.4 μm (32 μin) or
  • Ra 0.8 μm (32 μin)
Material Options
  • Stainless Steel
  • Hastelloy
Connection Types
  • BSP/NPT
  • SMS 1145
  • DIN 11851
  • DIN 11864
  • DIN EN 1092-1
  • DIN 32676 CLAMP
  • DIN 25 ISO CLAMP
  • ASME-BPE 2009 CLAMP
Cleaning Capability
  • Clean-in-place (CIP)
  • Sterilize-in-place (SIP)
Certifications
  • FDA
  • 1935/2004/EC
  • ATEX
  • CE

Features

  • Maintains temperature consistency for molten chocolate and other applications where precise temperature control is critical via patented integrated heat exchanger
  • Meets strict hygienic standards with clean-in-place (CIP) and sterilize-in-place (SIP) capabilities, full drainability and adherence to European Hygienic Engineering & Design Group (EHEDG) certification standards
  • Delivers contact-less running in all operating conditions, with a unique arrangement of bearing and shaft guides that enable precise positioning and preserve rotor concentricity

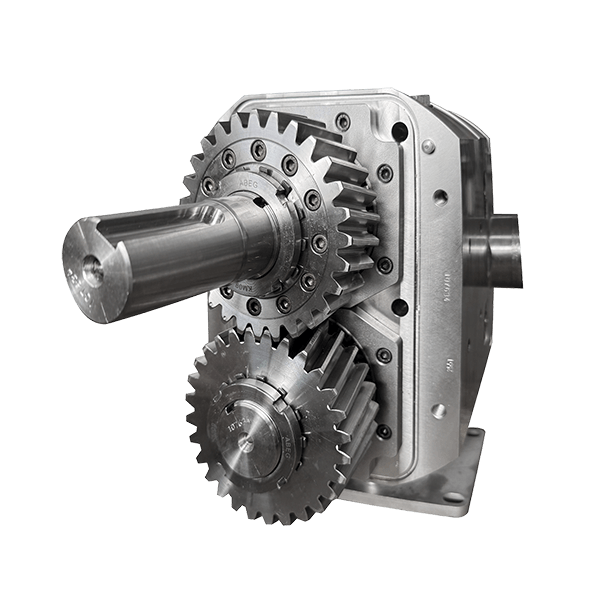

  • Extremely robust design ensures a high tolerance for temperature and load changes with thicker, shorter shafts that eliminate shaft deflection

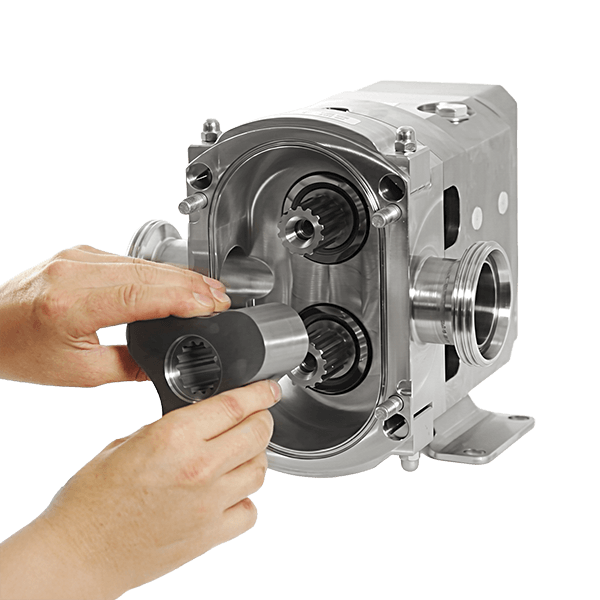

  • Offers simple in-line maintenance with front pull-out system and easily accessible mechanical seals

Certifications

FDA logoEC 1935/2004 logoEx logoCE logo

Specifications

Model Inlet and Discharge Size Connection Type Displacement per Revolution Maximum Speed Maximum Flow Maximum Pressure Maximum CIP Temperature Maximum SIP Temperature QCIP Approximate Weight
MM Inch L/Rev. Gal/Rev. RPM LPM GPM Bar PSI °C °F °C °F M3/H GPM KG. LB.
IL42I 25 1.0 DN25 0.030 0.008 1800 54.00 14.27 12 174 90 194 130 266 1.9 8.4 12 26
IL55sx 13 0.5 DN15 0.030 0.008 1400 42.00 11.10 15 218 90 194 130 266 1.4 6.2 16 35
IL55s 19 0.75 DN20 0.040 0.011 1400 56.00 14.79 15 218 90 194 130 266 2.1 9.2 16.5 36
IL55l 25 1.0 DN25 0.060 0.016 1400 84.00 22.19 15 218 90 194 130 266 3.2 14.1 17 37
IL55ll 32 1.25 DN32 0.075 0.020 1400 105.00 27.74 15 218 90 194 130 266 4.4 19.4 17.5 39
IL55l 38 1.5 DN40 0.094 0.025 1400 131.60 34.77 8 116 90 194 130 266 6.0 26.4 18 40
IL63s 38 1.5 DN40 0.090 0.024 1400 126.00 33.29 15 218 90 194 130 266 3.1 13.6 20 44
IL63l 38 1.5 DN40 0.120 0.032 1400 168.00 44.38 15 218 90 194 130 266 6.8 29.9 20 44
IL63l 38 1.5 DN40 0.174 0.046 1400 243.60 64.35 15 218 90 194 130 266 10.6 46.7 21 46
IL85s 38 1.5 DN40 0.210 0.055 1100 231.00 61.02 15 218 90 194 130 266 10.5 46.2 42 93
IL85l 51 2.0 DN50 0.280 0.074 1100 308.00 81.37 15 218 90 194 130 266 14.4 63.4 45 99
IL85l 64 2.5 DN65 0.350 0.092 1100 385.00 101.71 15 218 90 194 130 266 18.3 80.6 47 104
IL115s 51 2.0 DN50 0.550 0.145 900 495.00 130.77 15 218 90 194 130 266 24.4 107.4 108 238
IL155si 64 2.5 DN65 0.700 0.185 900 630.00 166.43 15 218 90 194 130 266 31.5 138.7 11 245
IL115l 76 3.0 DN80 0.950 0.251 900 855.00 225.87 15 218 90 194 130 266 42.6 187.6 114 251
IL130sx 64 2.5 DN65 1.230 0.325 850 1045.50 276.19 15 218 90 194 130 266 24.7 108.8 190 419
IL130s 76 3.0 DN80 1.600 0.422 850 1360.00 359.27 15 218 90 194 130 266 37.1 163.3 201 443
IL130l 102 4.0 DN100 1.970 0.520 850 1674.50 442.36 15 218 90 194 130 266 56.5 248.8 212 467
IL130l 102 4.0 DN100 2.340 0.612 850 1989.00 525.44 9 131 90 194 130 266 56.5 248.8 222 489

Options

an ipp Rotary Lobe Pump Cutaway

Patented Integrated Heat Exchanger

Our patented integrated heat exchanger enables precise temperature control, making this the best pump for molten chocolate and other applications where temperature control is critical.

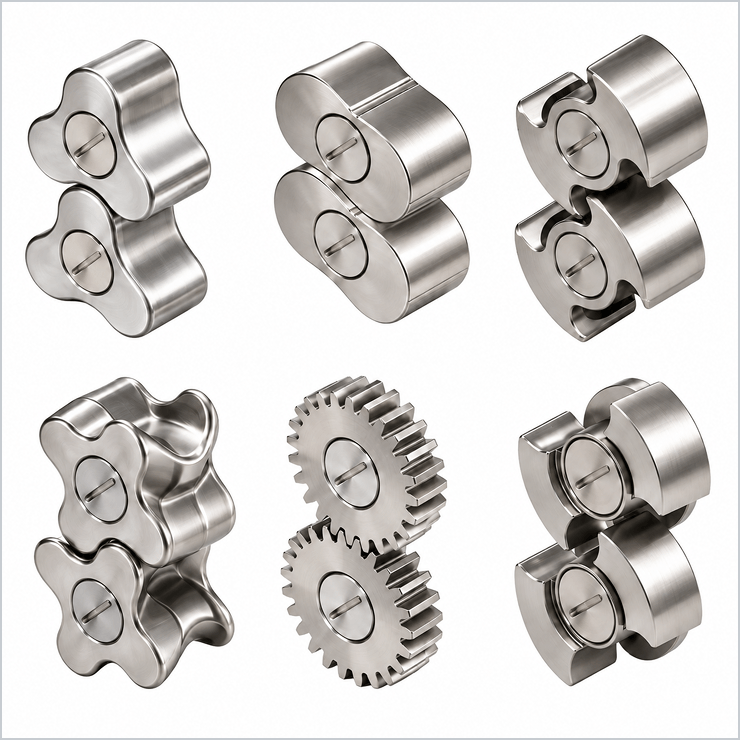

internal parts for an iLobe pump

Multiple Rotor Options

Choose from a range of rotor options, including trilobe, bilobe, bi-wing, helical twisted, gear, circumferential piston and more, to suit the viscosity and solid inclusion properties of your application.

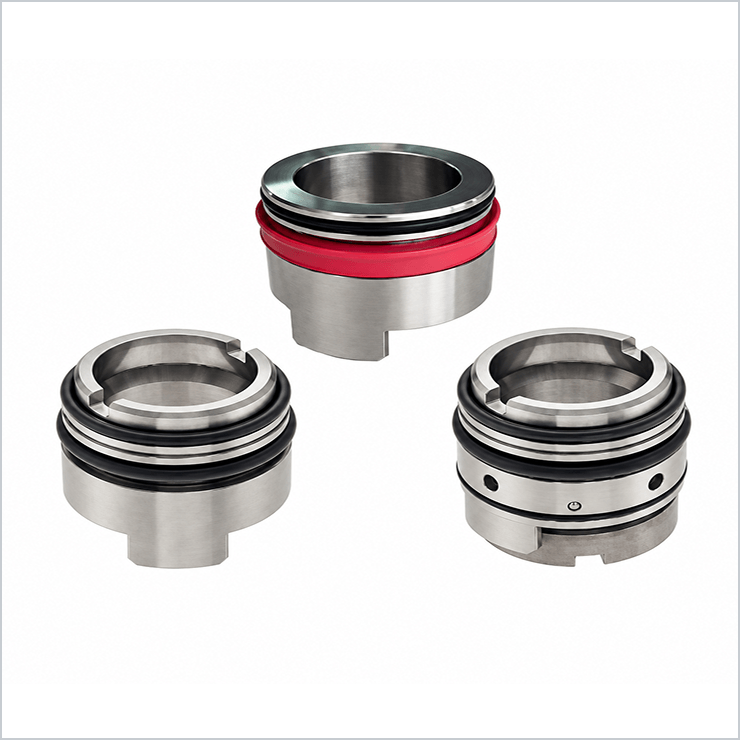

a collection of sealed iLobe parts

Multiple Seal Options

Select from several seal options, including single mechanical seals, double mechanical seals and lip seals.

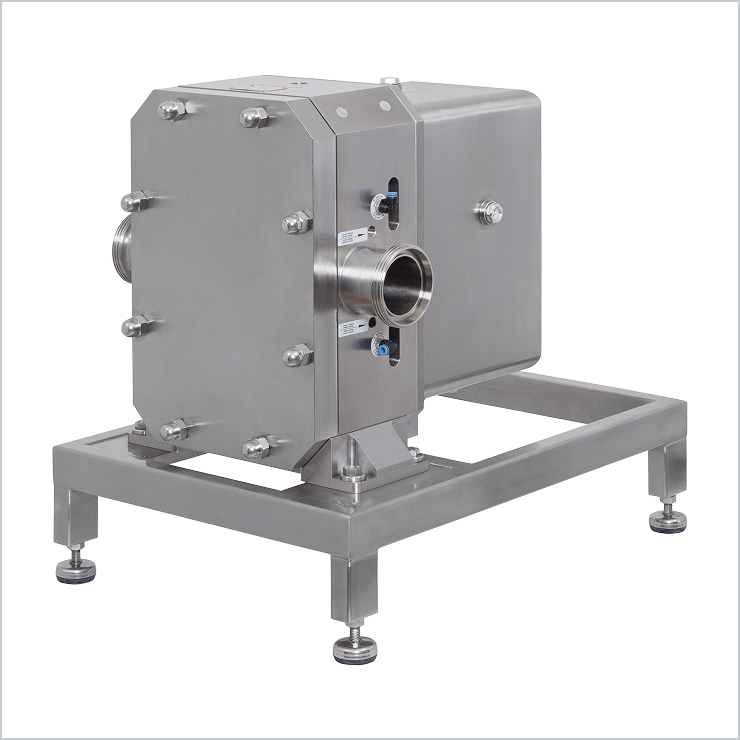

ipp iLobe pump on a stand

Additional Customizations

Our engineering expertise enables you to customize the ideal rotary lobe configuration for your application. We will work with you to design a solution that meets your specific requirements, whether that means adjusting individual pump feet to fit specific dimensions, implementing custom port positions, or including multiple connection types.

a warehouse stocked with iLobe pump parts

Robust Inventory

We minimize downtime by maintaining an inventory of genuine parts, enabling short lead times and expedited service.

Man working on ipp product

Comprehensive Support & Services

We offer additional in-house services, including damage analysis and repair, binding, genuine parts, and rental equipment that’s fast and efficient, backed by a 1-year guarantee. We aim to rebuild rather than replace, minimizing downtime and ensuring efficient operations.

Markets & Applications

Markets

Ideal for food and beverage applications, iLobe pumps are especially well-suited for:

  • Chocolates
  • Honey
  • Pralines
  • Confectionery
  • Pastry
  • Bakery products

Applications

Our iLobe pumps perform reliably in the following applications:

  • Raw material storage
  • Weighing and dosing
  • In-line processing
  • Tank loading and transfer
  • Drum loading and unloading
  • Portable transfer
