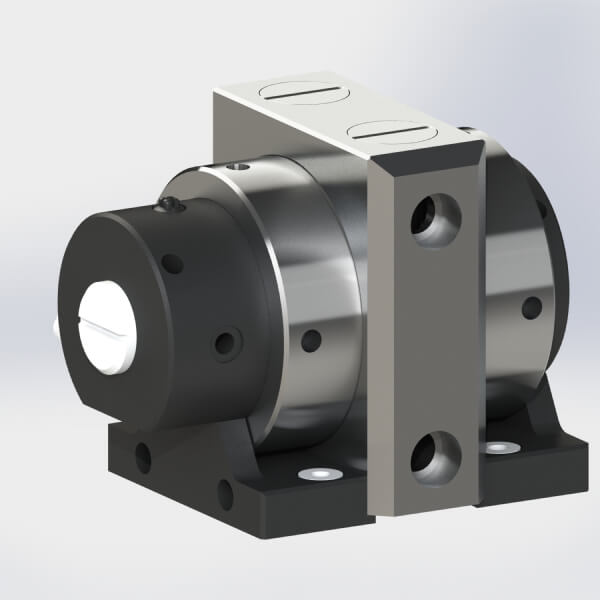

FUTUR_T_01 FUTUR_S

Almatec FUTUR Series AODD Pumps for the Semiconductor Industry

Since 1984, Almatec® has been manufacturing a variety of specialty pumps for supplying and circulating chemicals in the semiconductor industry. With its straight-through flow pattern technology, the Almatec FUTUR Series Air-Operated Double-Diaphragm (AODD) Pump is ideally suited for the special requirements of these applications.

FUTUR Series pumps are self-priming and dry run capable, and feature a compact, simple design with few parts. FUTUR Series pumps have housing parts machined from solid blocks for long-life performance, and are cleaned, assembled and tested in a cleanroom line. For every pump size and material option, the appropriate pulsation damper is available.

The FUTUR is currently available in four materials:

  • Four sizes made of PTFE/PE for acids and caustics up to 130°C (266°F) (FUTUR T model)
  • Two sizes made of PTFE for hot applications with acids and caustics up to 200°C (392°F) (FUTUR H model)
  • Two sizes made of PE for slurries (FUTUR E models)
  • Two sizes made of SS316L for solvents (FUTUR S and SH models)

Features at a Glance

  • Four material versions (T/H/E/S) for different applications
  • All plastic models contain no metal
  • Temperature range up to 200ºC (392ºF)
  • Patented, contactless cascade sealing between the product chambers
  • No O-ring sealing in wetted areas
  • Straight-through flow pattern, only one wetted housing part
  • Maintenance-free PERSWING P® air control system
  • Internal air flow
  • Diaphragms without plates and gaskets, optimized diaphragm geometry
  • Cylinder valves with surface sealing
  • Easy to dismantle and assemble
  • No elements to fix, including tie rods, nuts, or clamps
  • Separate pulsation damper available for all materials and sizes
  • Diaphragm and/or stroke sensors can be retrofitted easily
  • Low noise level

Materials

Part Materials
Wetted Center Housing PTFE, PE, SS316L (depends on the model)
Non-Wetted Side Housings PTFE, PE, PE Conductive, SS316 (depends on the model)
Diaphragms PTFE
Cylinder Valves PTFE, PE (depends on the model)

Technical Data

Pump size 10 20 50 100
Dimensions for pump in mm (inch)
Length 185 (7.3) 201 (7.9) 246 (9.7) 303 (11.9)
Width 114 (4.5) 150 (5.9) 200 (7.9) 260 (10.2)
Height 131 (5.2) 168 (6.6) 216 (8.5) 266 (10.5)
Dimensions for pump with damper in mm (inch)
Length 185 (7.3) 201 (7.9) 246 (9.7) 303 (11.9)
Width 136 (5.4) 161 (6.4) 215 (8.5) 286 (11.3)
Height 246 (9.7) 283 (11.1) 348 (13.7) 429 (16.9)
Nominal port size (NPT) 3/8" 1/2" 1" 1 1/4"
Air connection (NPT) 1/4" 1/4" 1/4" 1/4"
Suction head, dry in mWC (ft.) 1 (3.3) 2.5 (8.2) 3.5 (11.5) 4 (13.1)
Suction head, wet in mWC (ft.) 8 (26.2) 9 (29.5) 9 (29.5) 9 (29.5)
Max. permissible driving pressure bar (psig) 6 (87) 6 (87) 6 (87) 6 (87)
Max Capacities l/min (gpm) 10 (2.6) 20 (5.3) 50 (13) 100 (26)

Technical data of the FUTUR stainless steel models on request.

Max. Permitted Operating Temperature

Pump model FUTUR H FUTUR T FUTUR E
at max. 6 bar
(87 psig)
100°C
212°F
100°C
212°F
70°C
158°F
at max. 5 bar
(73 psig)
130°C
266°F
110°C
230°F
70°C
158°F
at max. 4 bar
(58 psig)
150°C
302°F
120°C
248°F
70°C
158°F
at max. 3 bar
(44 psig)
180°C
356°F
130°C
266°F
70°C
158°F
at max. 2 bar
(29 psig)
200°C
392°F
130°C
266°F
70°C
158°F

Performance

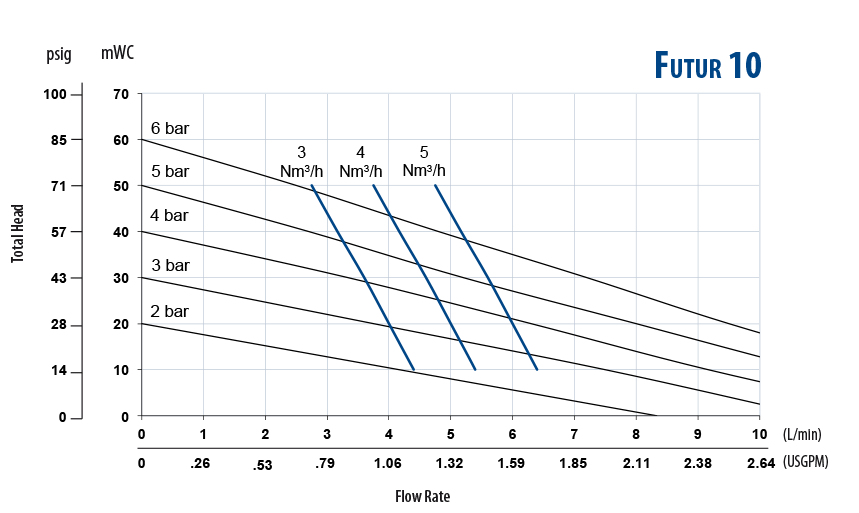

furtur10-chart

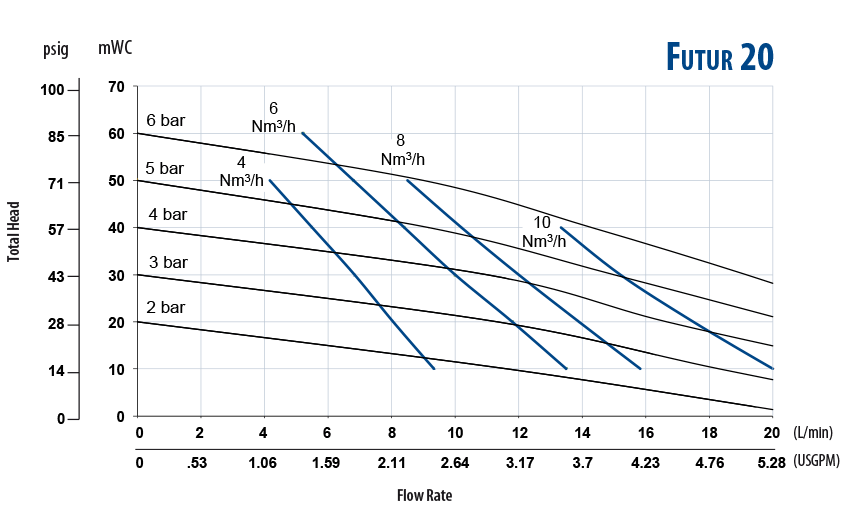

futur20-chart

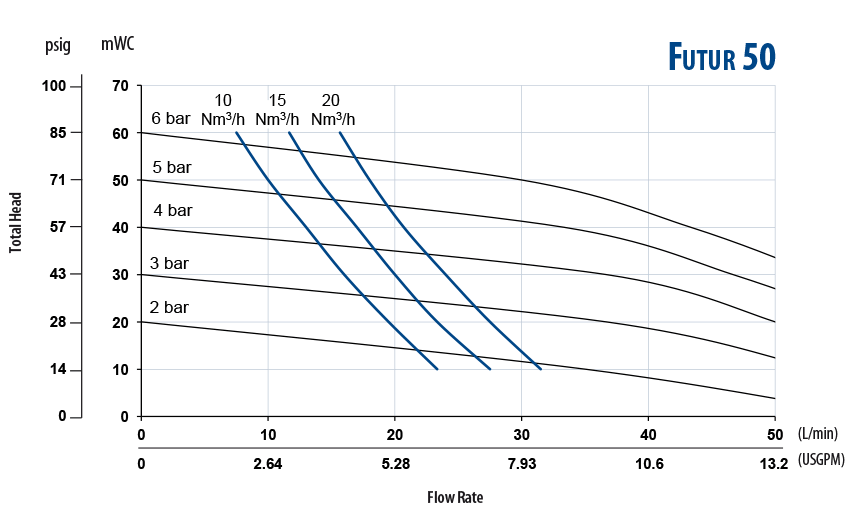

futur50-chart

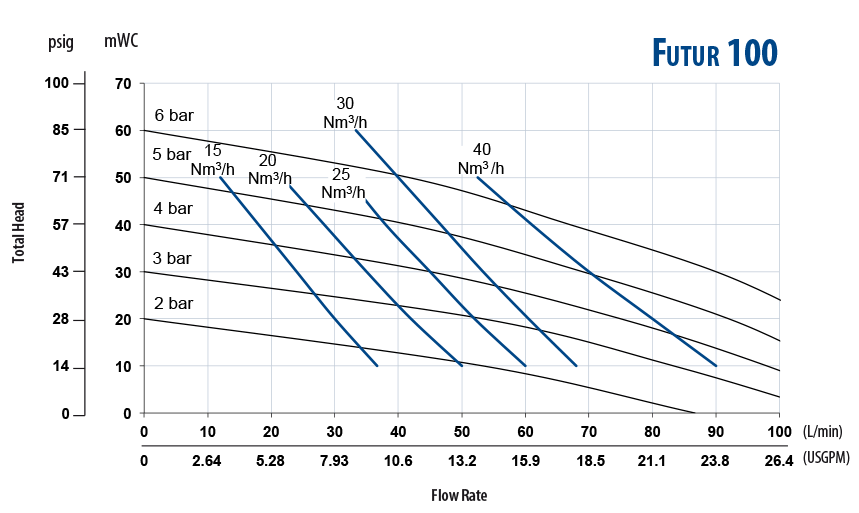

futur100-chart
