Almatec ADX Series Stainless Steel AODD Pump

ADX Series Stainless Steel Metal AODD Pump

Transferring corrosive chemicals and high-temperature fluids using underspecified equipment poses a serious risk. Seal failures, diaphragm breaches and material degradation can lead to unplanned downtime, costly repairs and safety hazards for personnel and surrounding infrastructure.

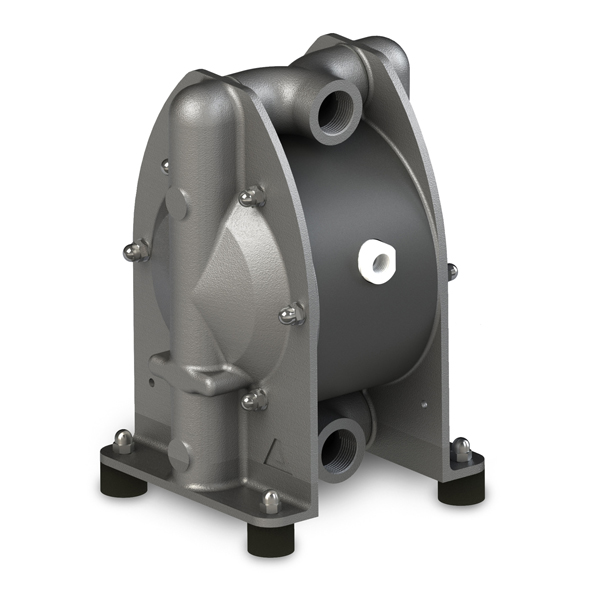

The Almatec® ADX Series Air-Operated Double-Diaphragm (AODD) Pump is constructed from precision-cast stainless steel and engineered to perform under aggressive fluid transfer conditions across a wide range of industrial applications. For facilities with strict safety requirements, the ADX Series also supports optional monitoring systems and is available in ATEX-compliant configurations.

Features at a Glance

  • Robust construction with the mass and proven internals required for reliable oscillating pump performance
  • Wetted housing parts constructed from stainless-steel precision casting 1.4408 (SS316)
  • Non-wetted air area available in three plastic materials (polyamide, conductive polyamide and conductive polyethylene) to meet various temperature requirements
  • Available in two ATEX-compliant variations per directive 2014/34/EU, rated for operating temperatures up to 80°C (176°F) or 120°C (248°F)
  • Free-rotating suction and discharge ports
  • Valve stops engineered for simplified maintenance, easier cleaning and increased safety
  • DIN and ANSI flange options, welded in a compact design in a defined position
  • Additional connection options, including sanitary threads, Tri-Clamp and open butt welding
  • Compatible with monitoring systems such as stroke counting, diaphragm sensor and barrier chamber system
  • Enhanced sealing and bi-directional diaphragm clamping for increased safety
  • Available in ADX20 (3/4") and ADX25 (1") sizes; both sizes are identical in construction but come equipped with different suction and discharge ports

Materials

Part Materials
Wetted Housing Parts 1.4408 (SS316)
Non-Wetted Air Area Polyamide, Conductive Polyamide, Conductive Polyethylene
Diaphragms EPDM, PTFE/EPDM, PTFE modified/EPDM, NBR, ATEX variations
Ball Valves EPDM, PTFE, NBR

Technical Data

Pump Size ADX20 ADX25
Dimensions Length, mm (inch) 154 (6.1) 154 (6.1)
Width, mm (inch) 150 (5.9) 150 (5.9)
Height, mm (inch) 241 (9.5) 241 (9.5)
Nominal port size BSP 3/4" 1"
Air connection BSP 1/4" 1/4"
Weight kg (lbs) 6 (13) 6 (13)
Max. particle size of solids mm (inch) 9 (0.35) 9 (0.35)
Suction lift, dry:
– EPDM ball valves
– PTFE ball valves
mWC (ftWC)
2 (6.6)
1 (3.3)
2 (6.6)
1 (3.3)
Suction lift, wet mWC (ftWC) 9 (29.5) 9 (29.5)
Max. driving and operating pressure bar (psig) 7 (100) 7 (100)
Max. operating temperature
(with center block of conductive PA)
(with center block of conductive PE)		 °C (°F)
 130°(266°)
120°(266°)
80° (176°)		 130°(266°)
120°(266°)
80° (176°)

Performance

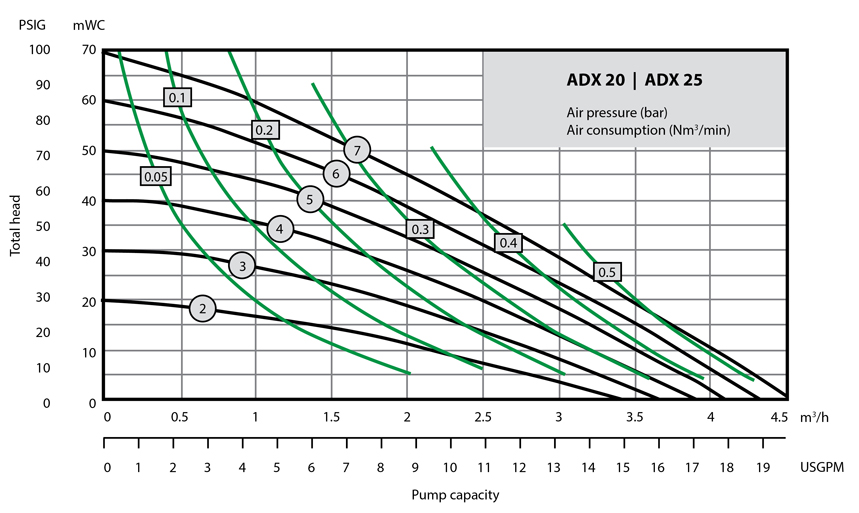

Almatec Pump ADX20-ADX25 performance chart

Downloads
