811_CC_Series 811cc 811cc_2

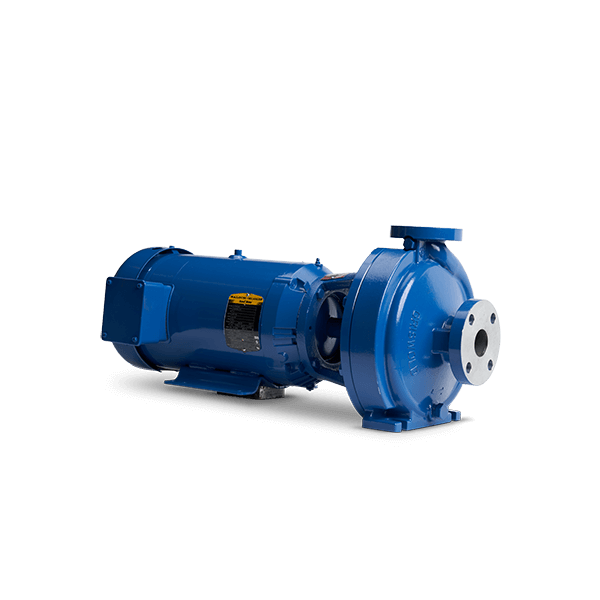

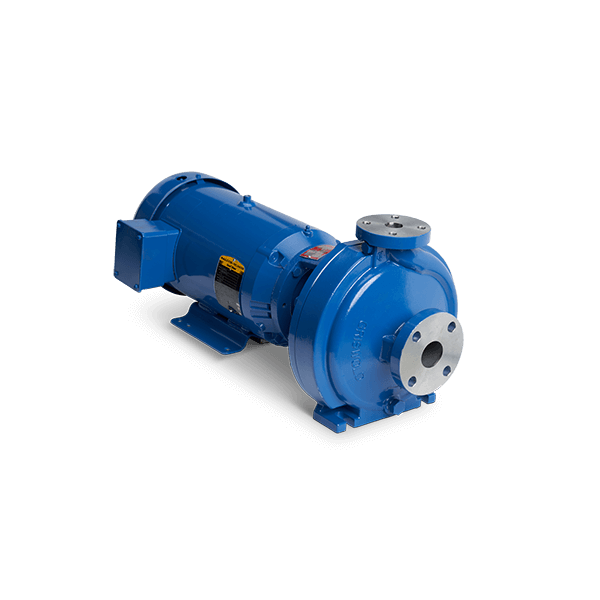

Griswold® 811CC Series Pumps Close-Coupled Centrifugal Pumps

The 811CC (Close-Coupled) Series Centrifugal Pumps match the features, flexibility and performance of standard 811 ANSI pumps while incorporating a compact, space-saving design that offers significant benefits.

The 811CC Series pump utilizes an ANSI-dimensional liquid end that allows easy adaptation to existing ANSI installations. This means that the pump can "drop" right in line with the use of existing piping, providing an easy and economical replacement for most ANSI installations. If desired, you can even keep your existing ANSI casing by quickly and seamlessly replacing a defective or oversized power end with the 811CC back pullout assembly.

Max Flow Rate
  • 320 gpm (72.7 m³/h)
Max Head
  • 75 ft (22.9 m)
Available Materials
  • Ductile Iron
  • 316 Stainless Steel
  • CD4MCuN
logo_choice Select Your Pump

Features

  • Direct replacement with ANSI pumps
  • Smaller compact footprint
  • Economical
  • Customizable
  • Fully open impeller
  • Keyed- and bolted-impeller design prevents loosening in high temperatures
  • Best for handling corrosive and erosive fluids
  • Multiple seal options available

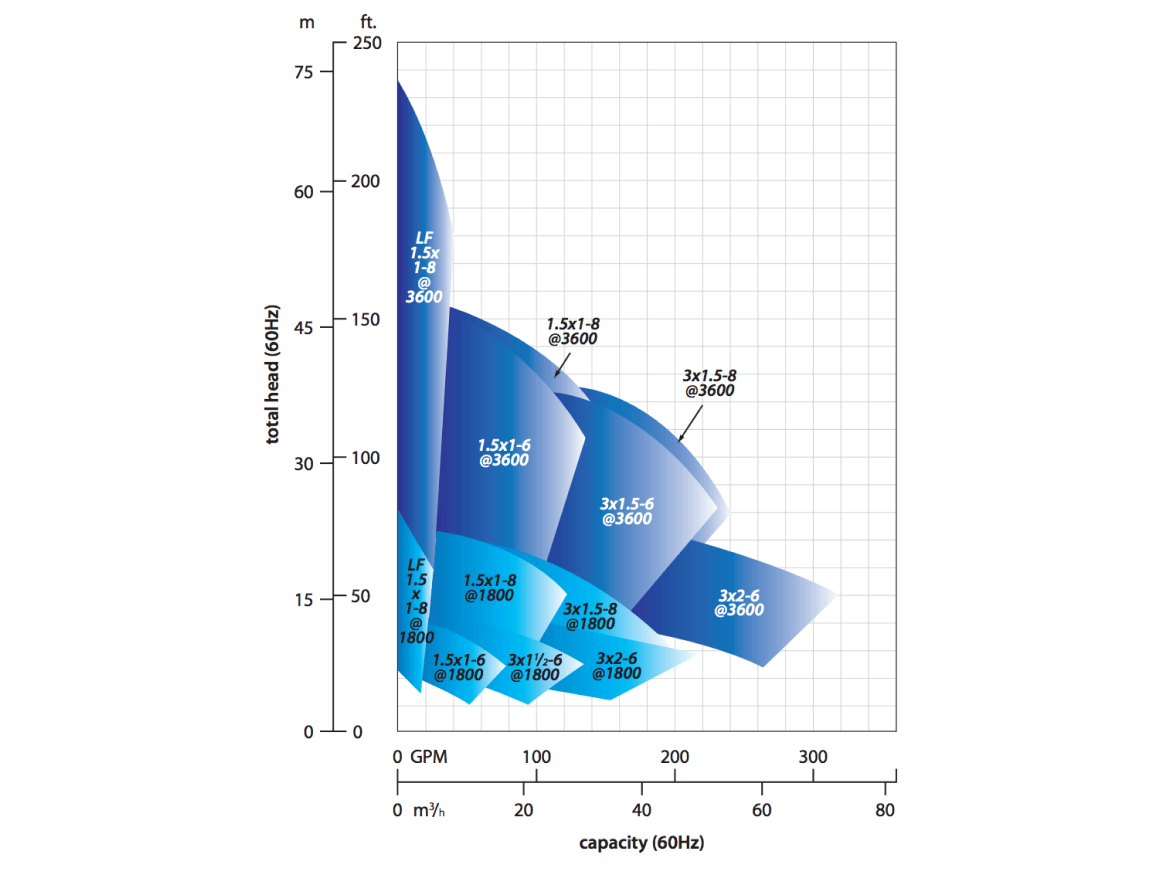

Performance Coverage

811-CC-performance-curve
