S050-SPP-SSPE-S70-PLASTIC-STANDARD S050-SPP-SSPE-S70-PLASTIC-STANDARD-ANGLED

1/2 in. Max-Pass® (S Series) Plastic S050

Air Inlet
  • 1/4" FNPT
Liquid Inlet
  • 1/2"
Liquid Discharge
  • 1/2"
Connection Type
  • FNPT/FBSPT (Threaded)
Max Suction Lift Capability
  • 20 ft-H2O (6.1 m-H2O) Dry
  • 30 ft-H2O (9.1 m-H2O) Wet
Max Flow Rate
  • 17 gpm (64.6 lpm)
Max Pressure
  • 120 psi (8.2 bar)
Max Diameter Solids
  • 3/8" (9.5 mm)
  • CE Icon
  • ATEX Icon
  • FDA Icon

Specifications

Physical Specifications
Liquid Port Size: 1/2 in.
Liquid Connection Types: FNPT, FBSPP
Standard Suction Port: Right
Standard Discharge: Right
Air Inlet Connection Size: 1/4 in.
Weight: 12 lbs (5.4 kg)
Construction
Wet End: Conductive Nylon, Polypropylene, PVDF
Air End: Glass Filled Polypropylene
Diaphragm: Geolast®, PTFE, Santoprene®
Valve: Buna-N, EPDM, FKM
Seat: Conductive Nylon, Polypropylene, PVDF
O-Rings: Buna-N, EPDM, PTFE, FKM
Hardware: PTFE Coated Stainless Steel, Stainless Steel
Muffler: Metal, Plastic

Performance

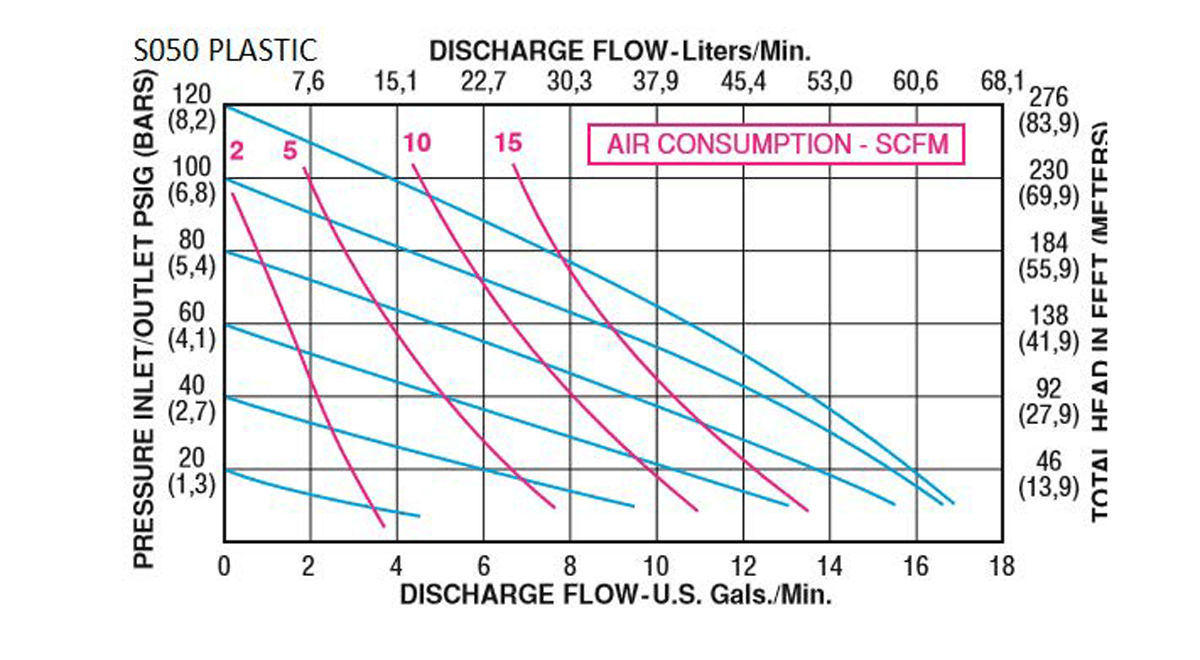

Performance Curve

S-Series-Performance-Curves_S050_Plastic

Note: Additional performance curves can be found in the download section.

Performance
Max Flow: 17 gpm (64.6 lpm)
Max Air Pressure: 120 psi (8.2 bar)
Suction Lift (Dry): 20 ft-H2O (6.0 m-H2O)
Suction Lift (Wet): 30 ft-H2O (9.1 m-H2O)
Max Solids: 3/8 in. (9.5 mm)

Downloads

IOMs

Size: 1/2 in. | Code: ALF-13130-E-01

Performance Curves

Sizes: 3/8 in., 1/2 in., 1 in.

Brochures

Exploded Views

Sizes: 3/8 in., 1/2 in., 1 in.

Dimensional Drawings

Size: 1/2 in.

3D Models

Size: 1/2 in.
