SonoTT™ aQuila SystemSafety through flexible measurement.

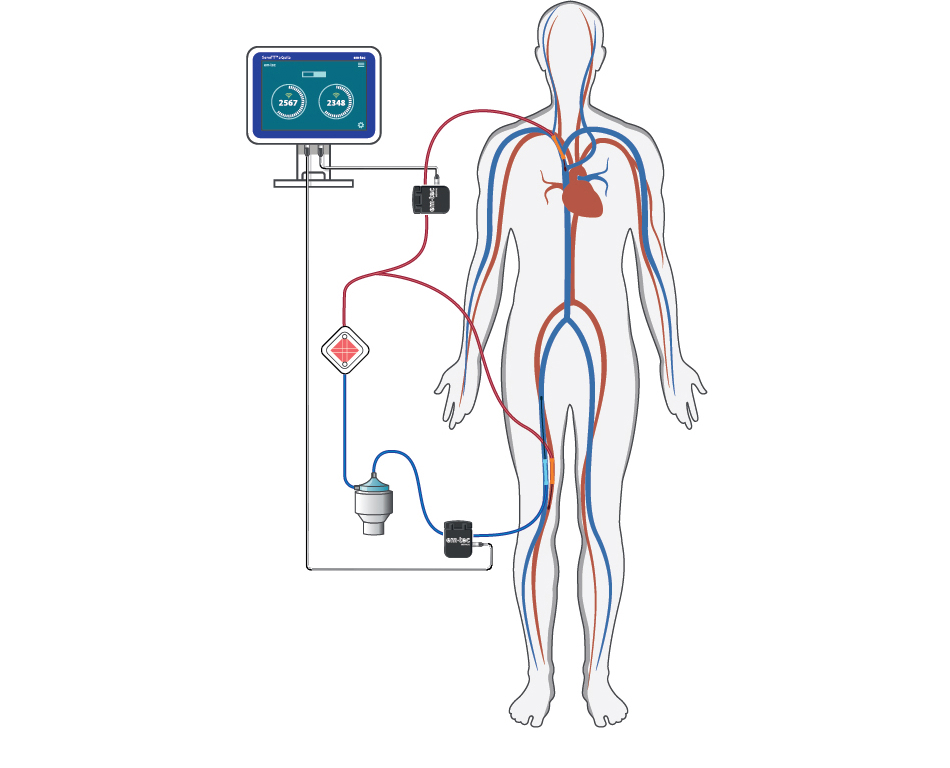

ECMO is a technique that provides prolonged respiratory and cardiac support for patients whose lungs or hearts are unable to function in a life-sustaining manner. Common instances for the use of ECMO include severe pulmonary or cardiac failure, hypoxemic or hypercapnic respiratory failure, hypothermia, and as a bridge within lung or heart transplantation procedures.

Situation

A typical ECMO system features only one sensor for measuring the blood flow, but if venoveno-arterial (VVA) access is required during the ECMO procedure, it is not possible to carry out additional blood flow measurements using only a standard ECMO device.

Solution

Our flexible flow measurement for your quality assurance:

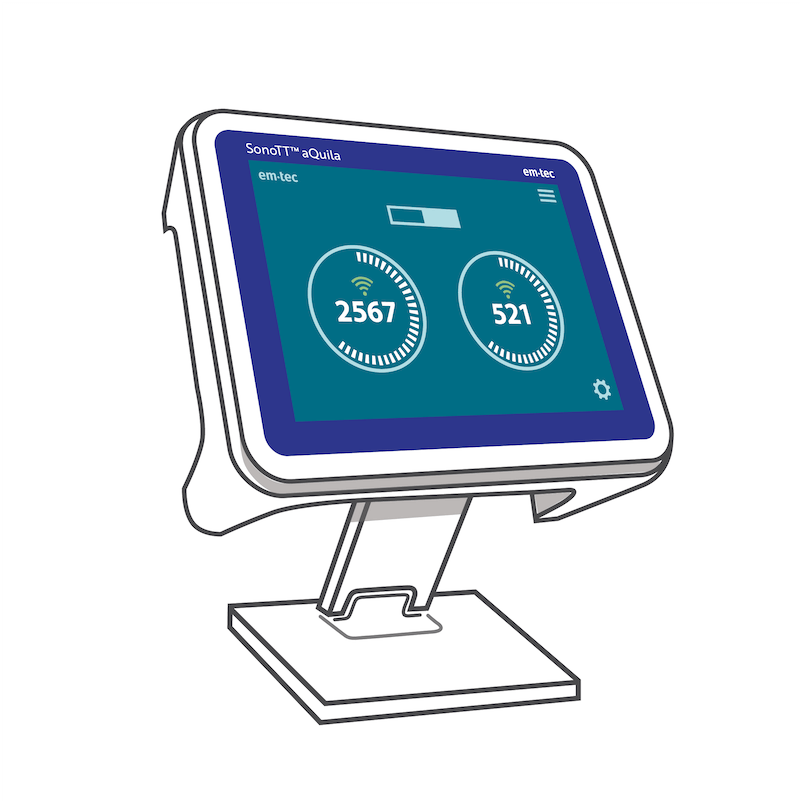

The new SonoTT™ aQuila System is an independent medical Class Im device equipped with two flow measurement channels. It enables two additional measurement points by using two sensors, thus offering another layer of safety information and comfort. A corresponding sensor portfolio is available for measurement on different tube sizes.

SonoTT™ Clamp-On SL
Other OEM Solutions

The SonoTT™ aQuila System is not directly related to, or part of, other medical devices or components.

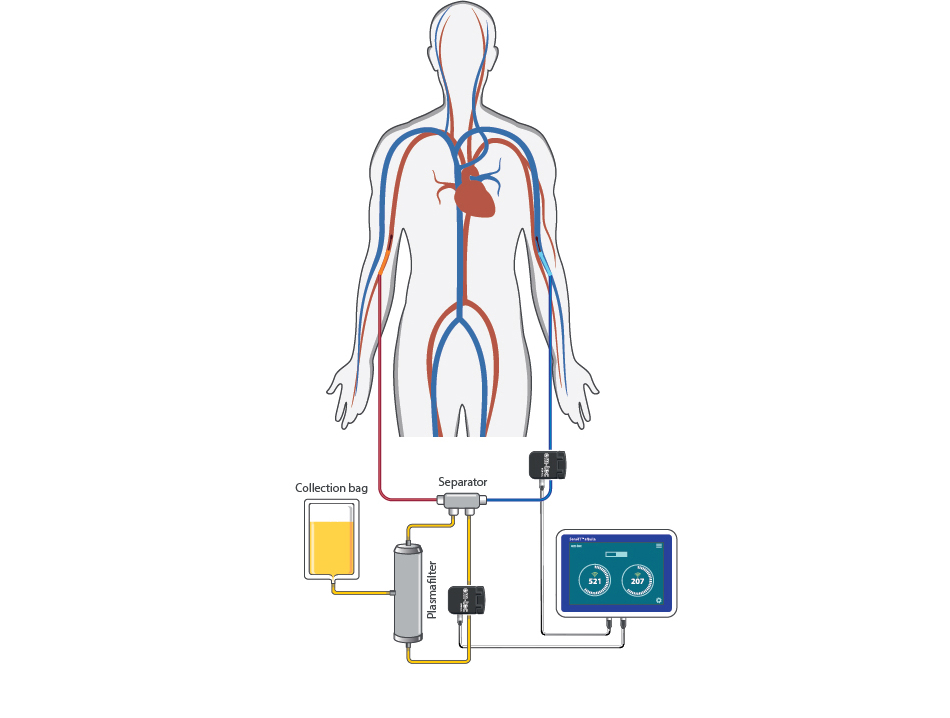

Apheresis is a medical procedure that sees a person’s blood pass through an apparatus that filters out unwanted components and returns the remainder to the body.

Situation

Acute treatments such as apheresis need an extracorporeal treatment of the blood. However, current procedures within medical technology tend to lack a flow measurement function due to there being not enough sensors.

Solution

Our flexible flow measurement for your quality assurance:
As a sensor system, the SonoTT™ aQuila System measures the blood flow and can display and record the current flow rates during an apheresis.

SonoTT™ Clamp-On SL
Other OEM Solutions

The SonoTT™ aQuila System is not directly related to, or part of, other medical devices or components.

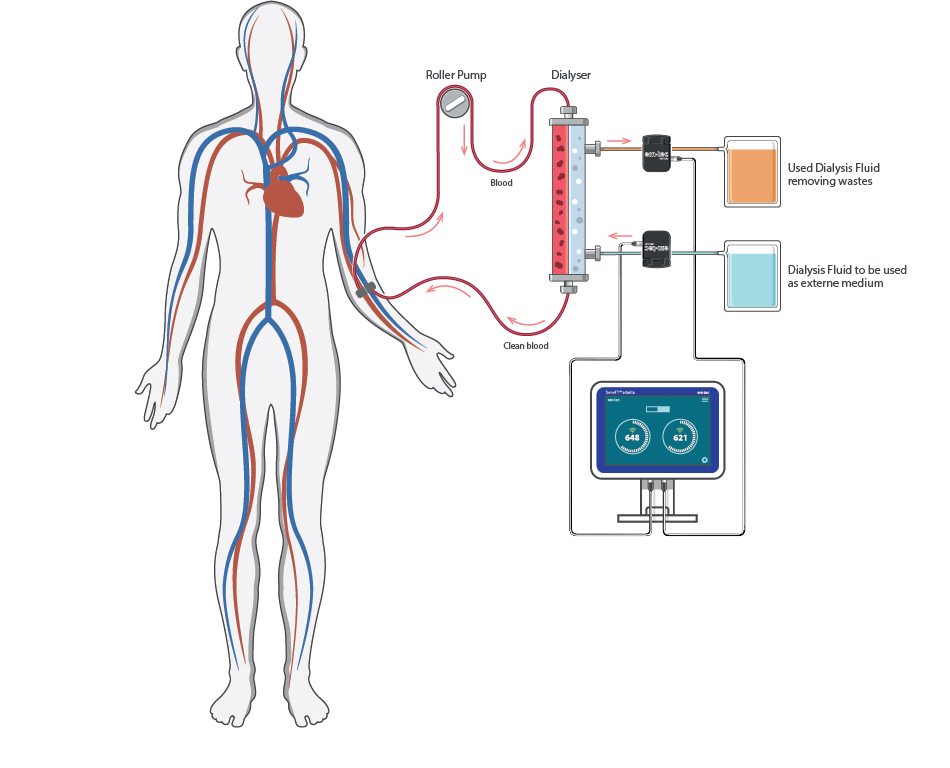

Dialysis is a treatment for kidney failure that rids a person’s body of unwanted toxins, waste products, and excess fluids through a process that filters the blood. Hemodialysis is the most common form of dialysis. In this procedure, the patient’s blood is circulated through a filter membrane where the blood is “cleaned” before being returned to the body.

Situation

Flow measurement is not usually part of dialysis treatments, which means the safety and quality of the treatment is largely dependent on the function and reliability of the used equipment and the experience of the medical staff supervising the treatment.

Solution

Our flexible flow measurement for your quality assurance:
The SonoTT™ aQuila System has been developed as a solution that measures the blood and/or fluid flow during dialysis treatments, which enables more Information during this medical procedure.

SonoTT™ Clamp-On SL
Other OEM Solutions

The SonoTT™ aQuila System is not directly related to, or part of, other medical devices or components.

Situation

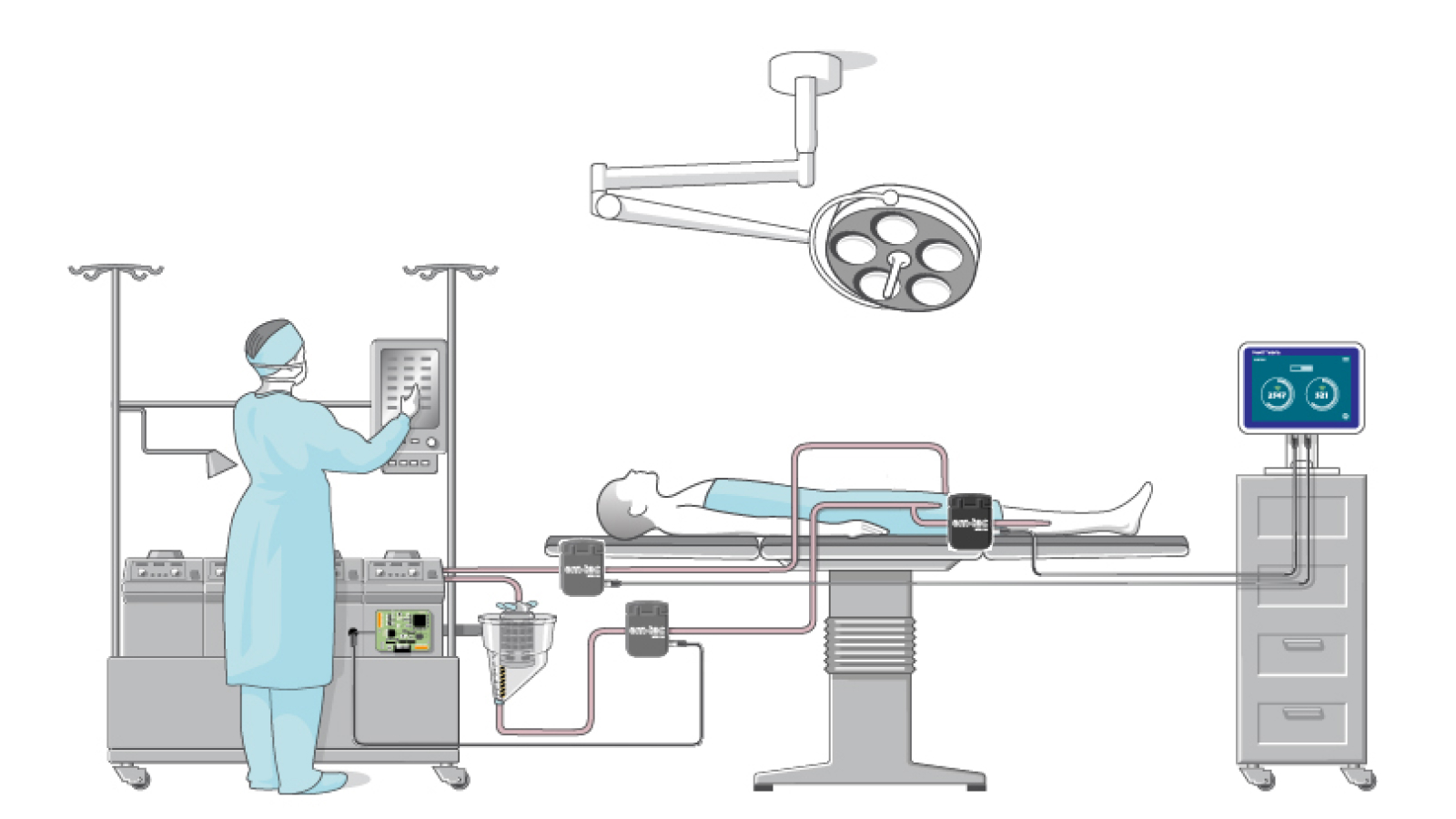

In order to prevent limb ischemia, or a blockage of blood flow to the legs or feet, from occurring during a life-sustaining procedure, sufficient blood flow must be achieved and maintained, which is only possible through accurate and reliable flow measurement.

Solution

Our flexible flow measurement for your quality assurance:
With its two non-invasive sensors, the independent Class Im SonoTT™ aQuila System allows for safe and reliable measurement of volumetric flow rates at additional measurement points. The specifically designed sensor sizes fit with all common cannulas.

The SonoTT™ aQuila System is not directly related to, or part of, other medical devices or components.

SonoTT™ Clamp-On SL
Other OEM Solutions
