Customer specific flow measurement boards Evaluation electronic for medical sensor systems and integrated flow measurement to measure flow and detect bubbles

SonoTT™ SkyLark Series

WITH BUBBLE DETECTION DOWN TO 3MM!

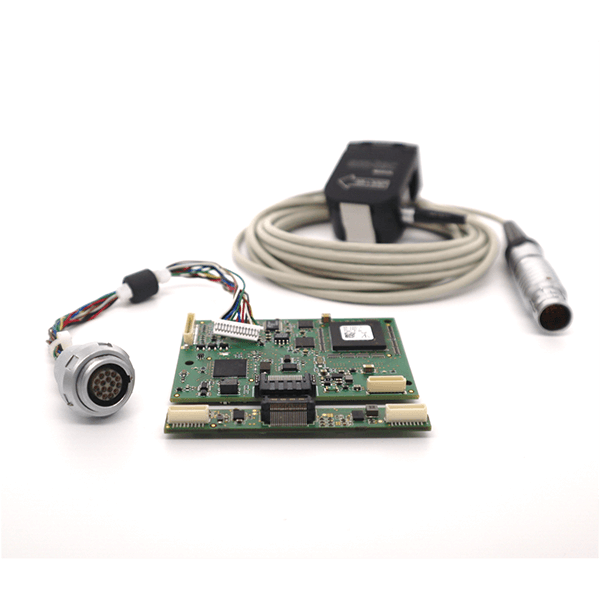

With the SonoTT™ SkyLark Series, em-tec MEDICAL presents a new range of flow measurement boards designed for the integration into life-sustaining, liquid-bearing medical devices such as HLM, ECMOs, or organ transport systems.

MDR ready: The integrable evaluation electronics incorporate advanced features and an extended error log, enabling a safer and more user-friendly integration of the increasing requirements within medical technology.

2-in-1-function: The newest SonoTT™ SkyLark gold variant additionally incorporates a bubble detection feature through a CAN Interface. This, and its high level of customization based on customer requirements, provide more convenience and safety throughout the entire running processes.

Customization: To ensure a proper and seamless function, the SonoTT™ SkyLark is combined and configured with a customer-specific em-tec sensor such as the SonoTT™ Clamp On SL.

Please note: The SonoTT™ SkyLark is for integration into a medical device and thus not an independent medical device. Not all products are available and approved in every country. Please contact your local distributor, if you have any questions.

Application

Customer-specific sensors and boards for the integration into existing extracorporeal systems such as:

  • Heart-lung machines
  • ECMO
  • Systems for organ transportation
  • Blood pumps
  • Dialysis devices

Also applicable in mobile medical devices.

Bubble Detection

Explore the NEW SonoTT™ SkyLark gold. Highly Integrable. Flow & Bubble Verified.

  • 2-in-1: Flow measurement & bubble detection with advanced troubleshooting information SkyLark gold Icon_verified
  • MDR ready: Easy and safe implementation
  • Customization: Full customization and integration support from initial request until serial production

Bubble Detection Feature at a Glance

  • Detection function based on acoustic coupling (RSS)
  • Bubble size up from three millimeters*
  • Short reaction time (CAN in 0,003 seconds)

*Please note that a customer-specific bubble detection configuration must be preceded by an evaluation of the specific requirements and a test of the entire system.

SkyLark Gold Bubble Detection Graphic

Benefit from em-tec’s Experience & Versatility

  • Expert in non-invasive flow measurement solutions in medical applications for over 30 years
  • Trusted and long-term partner for many well-known players in the medical market
  • ISO 13485 certified quality management system
  • Legal manufacturer and distributor of own medical product lines and components

Get in touch:
philipp.vanselow@psgdover.com
 +49 172 4768973

Key Facts

  • Series of fully integrable flow measurement boards
  • 2-in-1 function - exclusively for SonoTT™ SkyLark gold:
    • Flow measurement & bubble detection
  • MDR ready:
    • Easier risk analysis through optimized function overview
    • Full documentation for regulatory support – for easy integration
  • Customization:
    • Full customization and integration support from initial request to serial production
  • Compatible with the full range of em-tec sensors for common medical tubing sizes
  • Ideal for integration as OEM board with Class C software according to IEC 62304 by extended error log with numerous self-checks
  • Suitable for class III medical devices
  • Optional:
    • Implementation of several flow channels by using several boards
