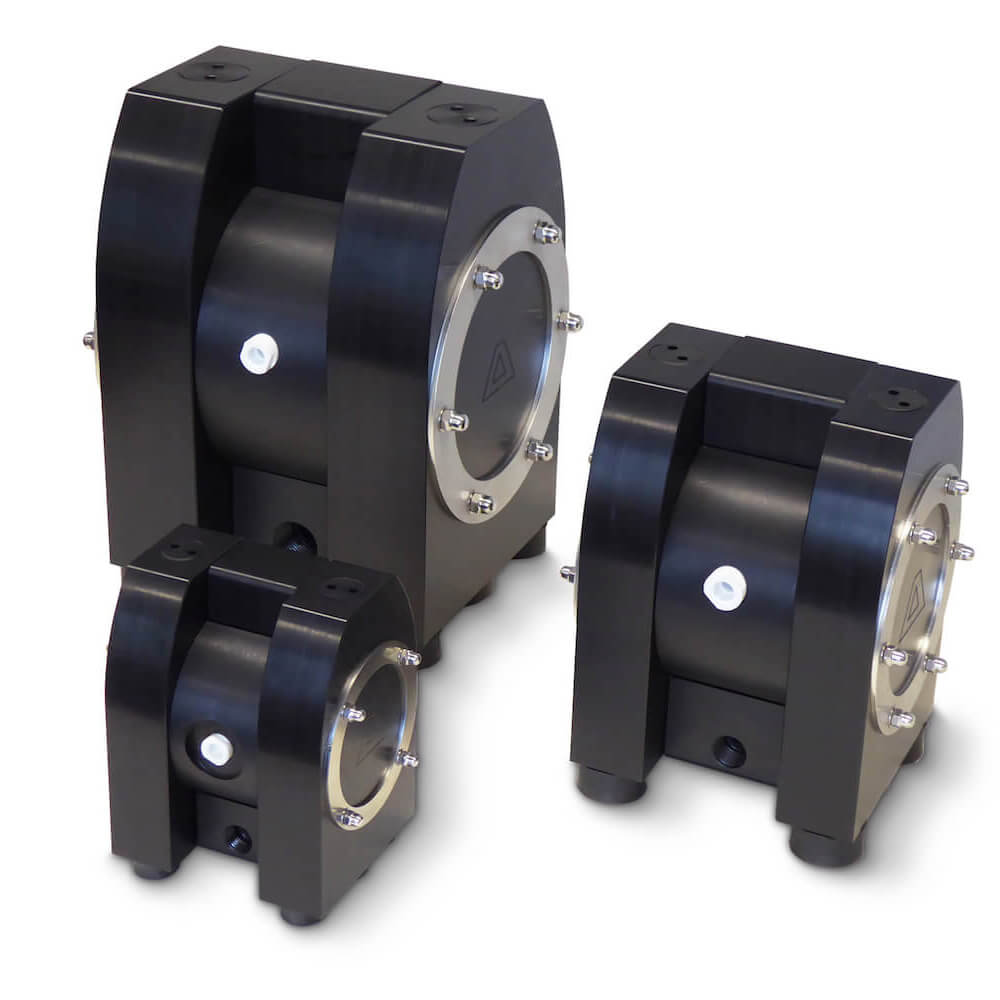

1-1/2 in. Plastic and Conductive Plastic - D150 - White D Series - D038, D050, D100 in Black

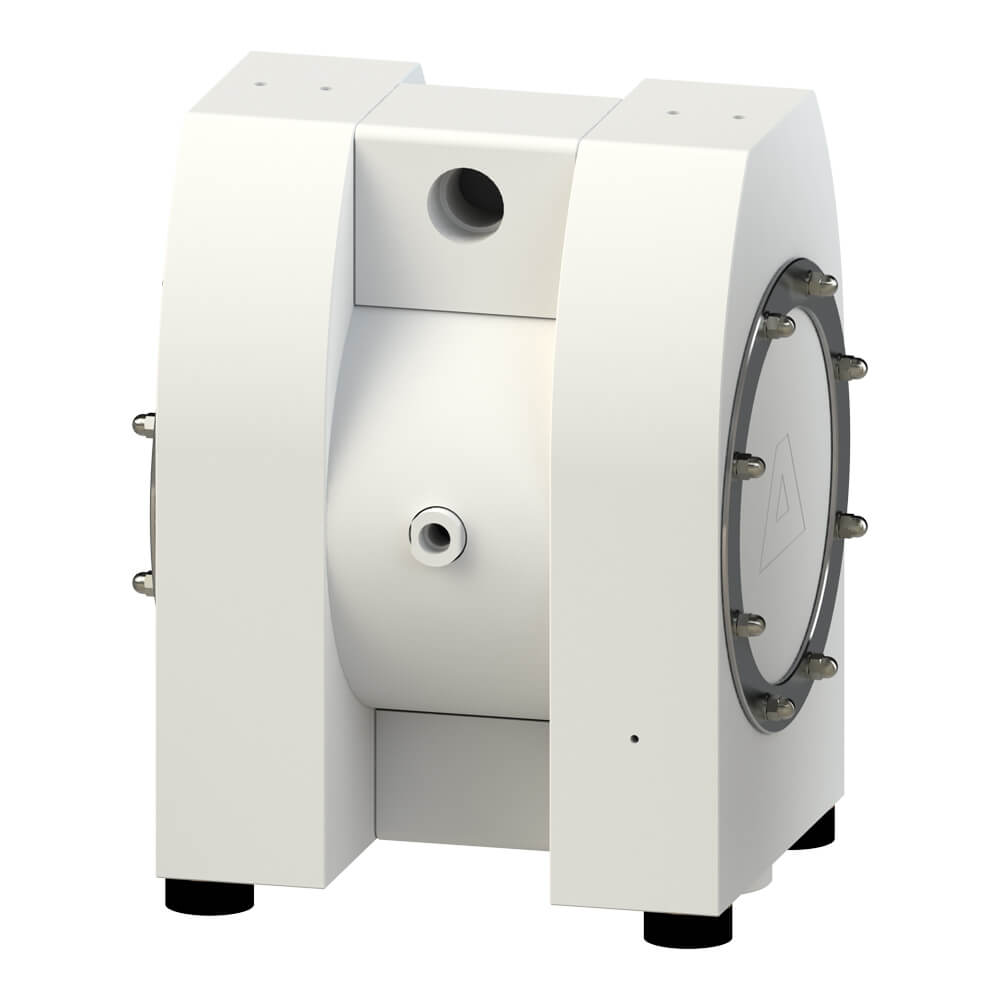

1-1/2 in. Plastic and Conductive Plastic (D Series) Pump D150

Air Inlet
  • 1/2" FNPT
Liquid Inlet
  • 1-1/2"
Liquid Discharge
  • 1-1/2"
Connection Type
  • FNPT/BSPT (Threaded)
Max Suction Lift Capability
  • 13.1 ft-H2O (4 m-H2O) Dry
  • 29.5 ft-H2O (9 m-H2O) Wet
Max Flow Rate
  • 100 gpm (390 lpm)
Max Pressure
  • 100 psi (7 bar)
Max Diameter Solids
  • 7/20" (9 mm)
logo_choice Select Your Pump
  • CE Icon
  • ATEX Icon

Specifications

Physical Specifications
Liquid Port Size: 1-1/2 in.
Liquid Connection Types: FNPT/BSPT (Threaded)
Discharge Location: Center
Liquid Connection: Center
Air Inlet Connection Size: 1/2 in. FNPT
Polypropylene PTFE
Weight: 66 lbs (30 kg) 126 lbs (57 kg)
Construction
Wet End: Polyethylene, Conductive Polyethylene, PTFE, Conductive PTFE
Air End: Polyethylene, Conductive Polyethylene
Diaphragm: EPDM, Integral PTFE
Balls: EPDM, PTFE
Seats: Polyethylene, PTFE
O-Rings: EPDM, FKM, FEP-encapsulated
Hardware: Stainless Steel
Muffler: Plastic

Performance

Performance Curve

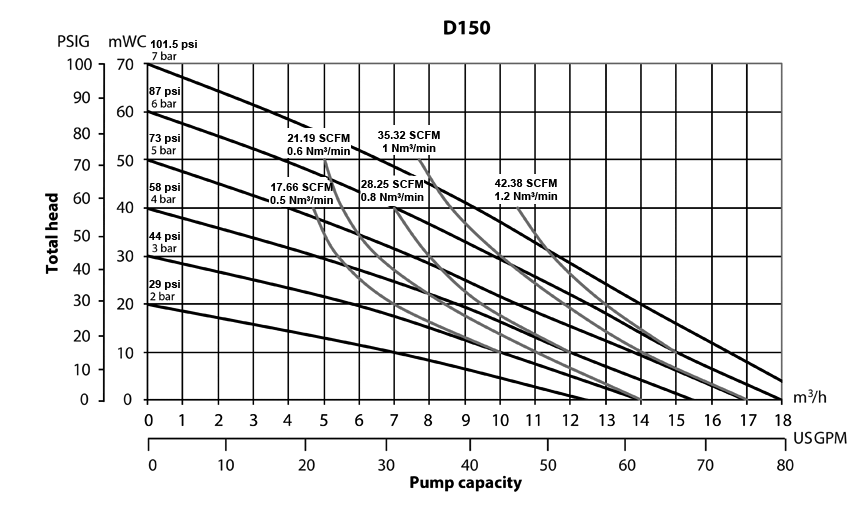

D150 Performance Curve

Note: Additional performance curves can be found in the download section.

Performance
Max Flow: 100 gpm (390 lpm)
Max Air Pressure: 100 psi (7 bar)
Max Suction Lift (Dry): 13.1 ft-H2O (4 m-H2O)
Max Suction Lift (Wet): 29.5 ft-H2O (9 m-H2O)
Max Solids: 7/20 in. (9 mm)

Downloads

EOMs

Sizes: 3/8 in., 1/2 in., 1 in., 1-1/2 in., 2 in. | Code: ALF-13300-E-01

Dimensional Drawings

Size: 1-1/2 in.

3D Models

Size: 1-1/2 in.
